Goes with
Carlisle · Fasteners
Details & specifications.
From the maker · Carlisle’s description

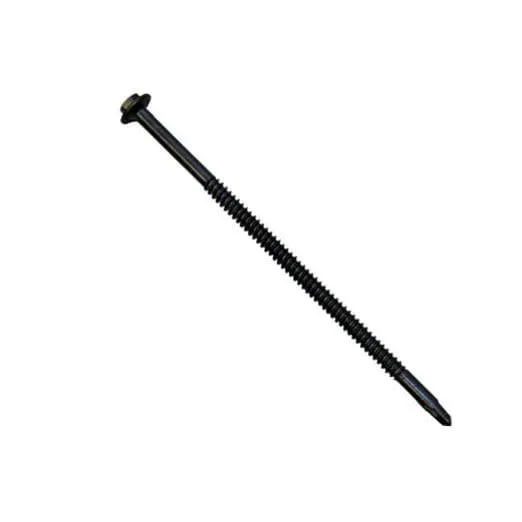

Carlisle HP Purlin Fasteners secure membrane and Pressure-Sensitive (PS) RUSS to structural steel purlins in Carlisle metal retrofit roofing systems. Two sizes are offered, 6-1/4 in. and 7-1/4 in. #14, in mill finish, 500 screws per box. The self-drilling point penetrates 12- to 18-gauge steel and pairs with 2 in. HP Polymer Seam Plates and 2-3/8 in. Piranha Plates.
Fit and Compatibility
HP Purlin Fasteners are designed for Carlisle metal retrofit roofing systems and are compatible with 2" HP Polymer Seam Plates and 2-3/8" Piranha Plates. Minimum penetration into the purlin is 1-1/4" including the 3/4" extended point; plates are sold separately.
- SKU
- CARF614P
- Per pack
- 500 fasteners per box
- Material
- Steel, corrosion-resistant coating
- Brand
- Carlisle
- Size
- 6-1/4" 500/Box
- Sell unit
- 1 box of 500 fasteners
- Product line
- Carlisle HP Purlin Fasteners
- Available sizes
- 6-1/4" (500/box) and 7-1/4" #14 (500/box)
- Color / finish
- Mill
- Length
- 6-1/4 in. or 7-1/4 in.; fasteners are made with a 3/4 in. (19 mm) extended point, so actual length of a 3" HP Purlin Fastener is 3-3/4 in.
- Point type
- Self-drilling point for 12-gauge to 18-gauge steel
- Drive
- Hex head
- Minimum penetration
- 1-1/4" (31.75 mm), including the 3/4 in. point extension
- Plate compatibility
- 2" HP Polymer Seam Plates; 2-3/8" (60.3 mm) Piranha Plates
- Corrosion testing
- Surpasses the FM 4470 corrosion test
- Intended use
- Securing membrane and PS RUSS to structural steel purlins in metal retrofit roofing systems
- Full product name
- Carlisle HP Purlin Fasteners, Self-Drilling Hex Head Steel Screws, 6-1/4 in. and 7-1/4 in., 500 per Box
Key features
- Hex head drive: The hex head drive provides positive bit engagement during the drilling process.
- Holding power: Superior pull-out and back-out resistance keeps membrane and PS RUSS securely fastened.
Specifications are provided by the manufacturer. Brand names are trademarks of their owners.
Guide
Choosing the fastener
- 1
Outdoors and treated lumber
Use hot-dip galvanized, stainless or exterior-coated fasteners, and follow the board maker’s fastener recommendation.
- 2
Price per piece
The pack price divided by the pieces in the pack, both as listed.
- 3
Drive
Star (Torx), square, Phillips or hex, as the listing states. Match the bit you carry.
Each box contains 500 HP Purlin Fasteners in either the 6-1/4 in. or 7-1/4 in. #14 size, in mill finish.
