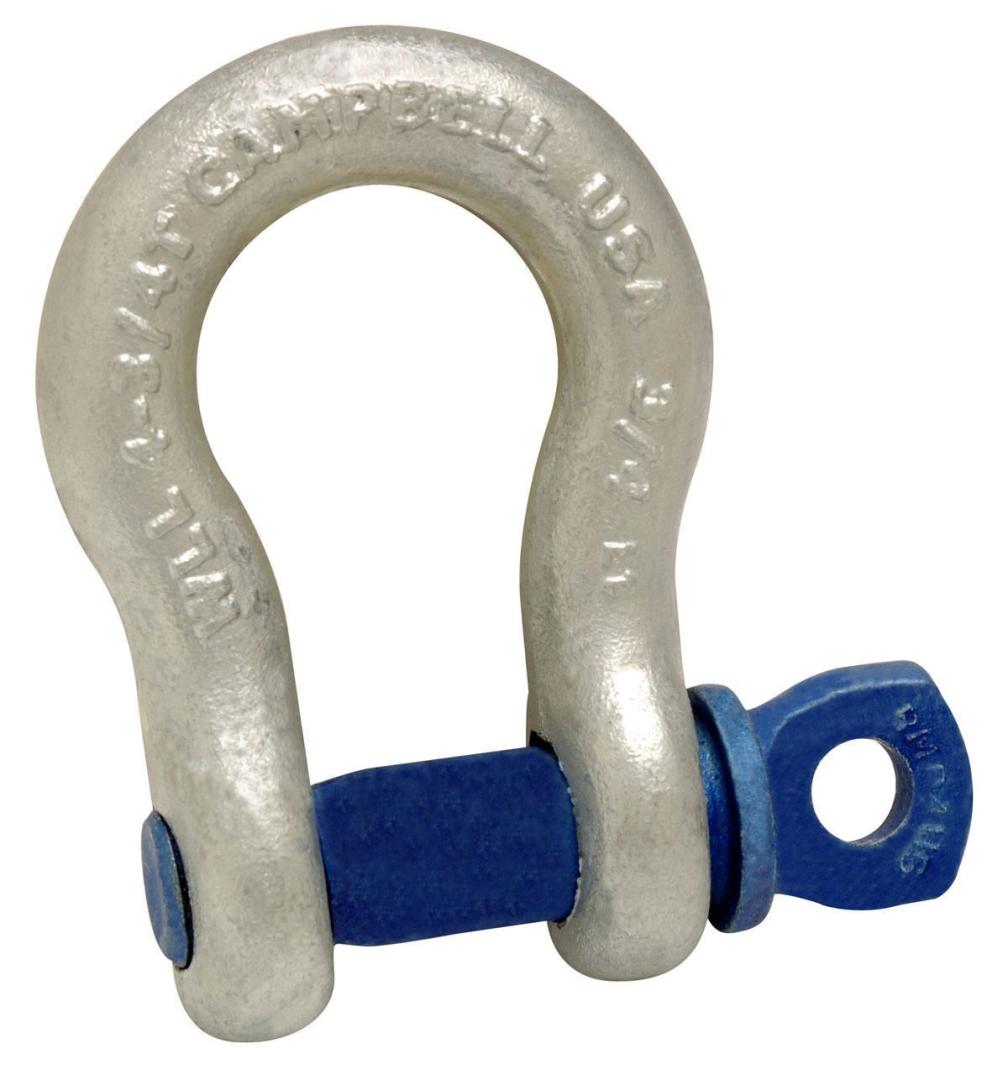

Galvanized 3/4 in Forged Anchor Shackle, Screw Pin

Heavy-duty anchor shackle forged from carbon steel and hot-dip galvanized for rugged, corrosion-resistant rigging. Rated to a 4-3/4 ton working load limit, with a screw pin for quick, secure connections in lifting and towing applications.

---

Key Features:

• Forged Carbon Steel Construction: Drop-forged body for strength and durability under heavy loads
• Hot-Dip Galvanized Finish: Meets ASTM A153 for corrosion resistance in outdoor and marine environments
• High Capacity WLL: 4-3/4 ton working load limit clearly marked on the shackle
• Standards Compliance: Meets ASME B30.26 and Federal Spec RR-C-271 requirements
• Quick-Connect Screw Pin: Heat-treated alloy steel pin for reliable, easy assembly

---

Specifications Table:

Specification	Details
Size	3/4 in
Type	Anchor Shackle, Screw Pin
Material	Forged carbon steel body; heat-treated alloy steel pin
Finish	Galvanized to ASTM A-153
Working Load Limit	4-3/4 ton

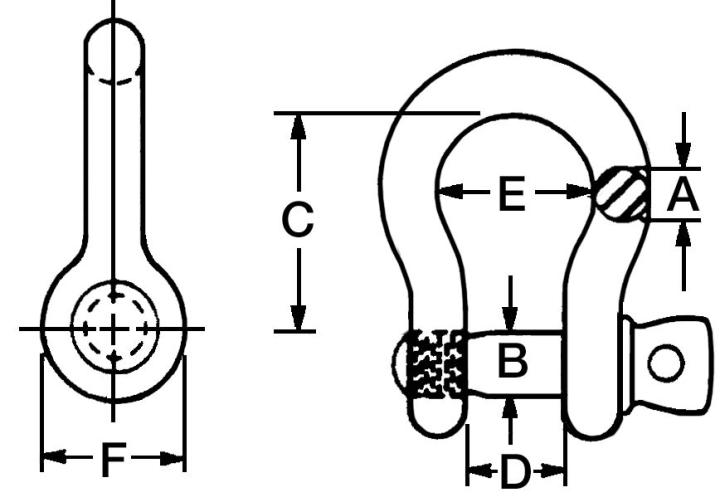

B Dimension	7/8 in
D Dimension	1-1/4 in
E Dimension	1-13/16 in
C Dimension	2-13/16 in
F Dimension	1-3/4 in
Width Tolerance	±1/8 in
Length Tolerance	±1/4 in
Weight Each	2.15 lb
Weight per 100 pieces	215 lb
Design Factor	6:1 for sizes 1/4 in to 2 in; 5:1 for 2-1/2 in
Standards	ASME B30.26; Federal Specification RR-C-271 Type IVA Grade A Class 2
Markings	WLL, size, manufacturer name, date code, USA permanently marked
Packaging	Boxed

---

Frequently Asked Questions (FAQ):

Q: What size is this shackle?
A: It is a 3/4 inch anchor shackle with a screw pin.

---

Q: What is the working load limit (WLL)?
A: The WLL is 4-3/4 tons; do not exceed this limit.

---

Q: Is it suitable for outdoor use?
A: Yes. It is hot-dip galvanized to ASTM A153 for corrosion resistance.

---

Q: What standards does it meet?
A: It meets ASME B30.26 rigging hardware requirements and Federal Spec RR-C-271 (Type IVA, Grade A, Class 2).

---

Q: What are key dimensions?
A: Approximate dimensions: B 7/8 in, D 1-1/4 in, E 1-13/16 in, C 2-13/16 in, F 1-3/4 in, width tolerance ±1/8 in, length tolerance ±1/4 in.

---

Industrial Strength Meets Refined Utility

This galvanized shackle brings a sculptural, utilitarian presence to the workspace—its forged curves and bold blue pin feel both purposeful and polished. The hot-dip finish reflects light softly while promising steadfast performance. Style it on a custom rigging wall or use it as a functional accent in outdoor installations where durability is paramount. A small but mighty piece, it embodies the elegance of true, hardworking design.

---

Choose this Campbell 3/4 in galvanized anchor shackle for reliable, standards-compliant rigging performance—add to cart today.
