Wilsonart Windsor Mahogany 7039 High-Pressure Laminate Sheet - Woodgrain Countertop and Cabinet Surfacing
Regular price $158.52Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart Windsor Mahogany 7039 High-Pressure Laminate Sheet - Woodgrain Countertop and Cabinet Surfacing

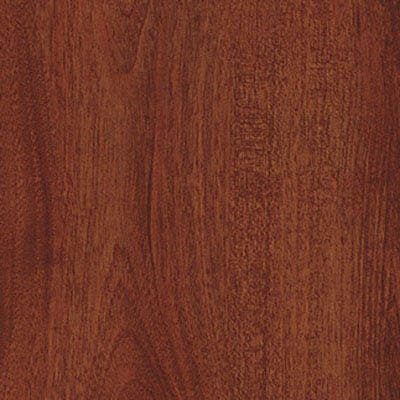

This is Wilsonart 7039 Windsor Mahogany, a traditional mahogany woodgrain high-pressure laminate with large cathedrals, a medium red-brown color, golden undertones and dark ticking. One order unit is one sheet; the page sells 48 variants across 3 finishes, 9 grades and 14 sheet sizes. Choose a finish, grade and size at checkout, and pair with a matching backer sheet on the substrate.
Key Features:
- Traditional mahogany look: A traditional mahogany design with large cathedrals and dark ticking through a medium red-brown color with golden undertones.
- Three finish options: Available in 38 Fine Velvet, 60 Matte and 60 Matte with built-in film, so you can match sheen and wear needs.
- Full grade range: Offered in 9 grades from standard HPL for horizontal surfaces through postform, vertical, Chemsurf, compact and fire-rated versions.
- Fourteen sheet sizes: Sheet sizes run from 30 in. x 96 in. up to 60 in. x 144 in., plus 1/2 in. compact panels in 48 x 96, 60 x 96, 60 x 120 and 60 x 144.
- Chemical-resistant option: The 390 Chemsurf grade is intended for laboratory and similar applications where chemical resistance is required.
- Compact panel choice: 1/2 in. thick 568 Compact HPL items are self-supporting panels that do not require a substrate.
- Matte + film option: Matte Finish + Film items add a protective film layer for handling and fabrication.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 7039 |
| Sell unit | 1 sheet |
| Design number | 7039 |
| Design name | Windsor Mahogany |
| Material | High-pressure laminate (HPL) |
| Color / finish | Medium red-brown with golden undertones and dark ticking |
| Surface / pattern | Traditional mahogany woodgrain with large cathedrals |
| Available finishes | 38 Fine Velvet Finish, 60 Matte Finish, 60 Matte Finish + Film |
| Available grades | 107 Standard HPL, 107 Standard High Wear HPL, 335 Vertical HPL, 350 Postform HPL, 390 Chemsurf HPL, 568 Compact HPL, 604 Fire Rated Vertical HPL, 605 Fire Rated Postform HPL, 607 Fire Rated Standard HPL |
| Available sheet sizes | 30" x 96", 30" x 120", 30" x 144", 36" x 96", 48" x 96", 48" x 120", 48" x 144", 60" x 96", 60" x 120", 60" x 144", plus 1/2" compact panels: 1/2" x 48" x 96", 1/2" x 60" x 96", 1/2" x 60" x 120", 1/2" x 60" x 144" |
| Thickness | 1/2 in. (compact HPL items only; other grades printed as nominal sheet sizes) |
| Recommended use | Standard grade for horizontal surfaces such as countertops, postforming grade for rolled edges, vertical grade for cabinet sides and wall surfaces, compact for self-supporting panels, Chemsurf for chemical-resistant applications, fire-rated grades for code-required interiors |
Coverage & How Much You Need:
One sheet covers its full listed dimensions; for example a 48 in. x 96 in. sheet yields 32 square feet of finished surface before trimming. Plan your layout so seams and grain direction align across cabinets or countertop runs, and buy one backer sheet per decorative sheet where the design is bonded on both faces.
Fit and Compatibility:
Bond to 45 lb particleboard or MDF with contact adhesive for countertop and casework builds; compact panels are used without a substrate. Postforming grade items are made for rolled-edge fabrication on a postforming line. Backer sheets and adhesives are sold separately.
Frequently Asked Questions (FAQ):
Q: What is included with one order?
A: One laminate sheet in the finish, grade and size you select from the 48 listed variants; adhesives, backer sheets and substrates are sold separately.
Q: Which grade should I choose for a kitchen countertop?
A: 107 Standard HPL or 107 Standard High Wear HPL for the flat top, with 350 Postform HPL if you are rolling a front edge; 335 Vertical HPL suits cabinet ends and wall panels.
Q: Can I use this as a free-standing panel?
A: Only the 1/2 in. 568 Compact HPL items are self-supporting; standard, postform and vertical grades must be bonded to a substrate.
Q: What is the difference between the matte finishes?
A: 60 Matte is the standard surface, 60 Matte + Film includes a protective film layer, and 38 Fine Velvet is a softer low-sheen texture.
Q: How long until a special-order sheet arrives?
A: This is a special-order, non-standard option; if not in stock locally, allow approximately a 2-week lead time, and note there is a 24-hour window to cancel special-order laminate.
Q: Do the fire-rated grades carry a printed rating?
A: The page lists them as 604 Fire Rated Vertical, 605 Fire Rated Postform and 607 Fire Rated Standard HPL; no specific fire class is printed in the sources, so confirm code requirements before ordering.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Order standard or high-wear grade for working tops, postforming grade when your shop bends a front nosing, and vertical grade for end panels to keep weight and cost down. Always laminate a balanced backer to the underside of particleboard or MDF tops to prevent warp, and let large 60 x 144 sheets acclimate in the shop before gluing. Keep the postforming radius within your machine's capacity and the adhesive temperature window, and store sheets flat, decorative face protected.
Handle large sheets with two people, wear cut-resistant gloves when trimming, and route or score-and-snap edges with dust collection because laminate chips and dust are irritants.
Order your Wilsonart 7039 Windsor Mahogany laminate sheet in the finish, grade and size your project needs today.
