Wilsonart Rio 7947 Rosewood Laminate Sheet and Compact Panel, Multiple Sizes, Grades and Finishes
Regular price $694.14Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart Rio 7947 Rosewood Laminate Sheet and Compact Panel, Multiple Sizes, Grades and Finishes

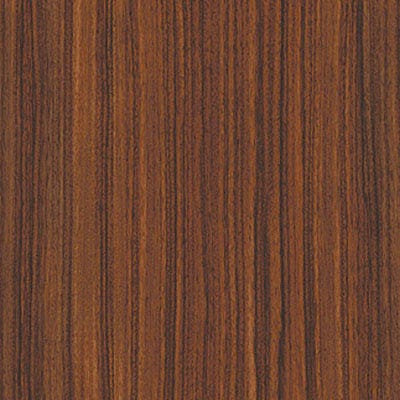

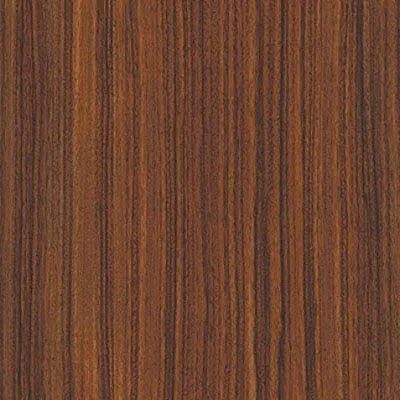

Wilsonart design 7947 Rio is a straight-grained Brazilian rosewood laminate in alternating amber and reddish-brown tones with narrow bands of brown-black graining. This page lists 13 variants in 2 finishes and 5 grades, including 1/4 in. and 1/2 in. compact panels and standard, vertical and postforming sheets from 48 in. x 96 in. to 60 in. x 144 in. One order is one sheet or panel in the chosen variant.
Key Features:
- Rosewood design: Straight-grained Brazilian rosewood look in amber and reddish-brown tones with narrow brown-black graining bands.
- Two compact thicknesses: 569 Compact HPL in 1/4 in. x 60 in. sheets and 568 Compact HPL in 1/2 in. x 48-60 in. panels.
- Postforming options: 350 Postform HPL variants in 38 Fine Velvet Finish from 48 in. x 96 in. to 60 in. x 144 in.
- Vertical grade: 335 Vertical HPL variants in Fine Velvet Finish for cabinet sides and wall surfaces.
- Standard grade: 107 Standard HPL variants in 48 in. x 96 in. and 60 in. x 144 in. for horizontal layup.
- Two finishes: Offered in 38 Fine Velvet Finish and 60 Matte Finish.
- Special order: Non-standard option; allow approximately 2 weeks lead time if not in stock.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 7947 |
| Sell unit | 1 panel |
| Design number | 7947 |
| Design name | Rio |
| Material | High-pressure laminate (HPL) |
| Surface / pattern | Straight-grained Brazilian rosewood; amber and reddish-brown tones with narrow brown-black graining |
| Available finishes | 38 Fine Velvet Finish, 60 Matte Finish |
| Available grades | 107 Standard HPL, 335 Vertical HPL, 350 Postform HPL, 568 Compact HPL, 569 Compact HPL |
| Available sheet sizes | 48" x 96", 48" x 120", 60" x 120", 60" x 144", 1/4" x 60" x 96", 1/4" x 60" x 144", 1/2" x 48" x 96", 1/2" x 60" x 120" |
| Thickness | 1/4 in. for 569 Compact HPL and 1/2 in. for 568 Compact HPL variants; thickness not printed for other grades |
| Recommended use | Standard HPL for horizontal surfaces, Postform HPL for rolled edges, Vertical HPL for cabinet sides and walls, Compact HPL for self-supporting panels |
| Intended use | Countertops, tables, cabinet surfacing, wall panels and self-supporting panels |
Coverage & How Much You Need:
A 48 in. x 96 in. sheet covers 32 sq ft and 60 in. x 144 in. covers 60 sq ft; 1/4 in. compact sheets in 60 in. width cover 40 to 60 sq ft. Size each run with trim margin and pair horizontal layups with a balancing backer sheet.
Fit and Compatibility:
Standard, vertical and postforming grades bond with contact adhesive to particleboard, MDF or plywood; 1/4 in. and 1/2 in. compact variants are self-supporting. Wilsonart backer laminate is sold separately.
Frequently Asked Questions (FAQ):
Q: What do I get when ordering?
A: One laminate sheet or compact panel of Rio 7947 in the finish, grade and size selected.
Q: What is the 1/4 in. compact grade for?
A: 569 Compact HPL in 1/4 in. thickness is a thinner self-supporting panel option in 60 in. x 96 in. or 60 in. x 144 in. sheets.
Q: Can I postform this design?
A: Yes, 350 Postform HPL variants in 38 Fine Velvet Finish are available from 48 in. x 96 in. up to 60 in. x 144 in.
Q: Do compact panels need a substrate?
A: No, compact HPL is self-supporting; the standard, vertical and postforming grades do require bonding to a substrate.
Q: How soon can I get it?
A: Special order; if not in stock locally allow approximately a 2-week lead time with a 24-hour cancellation window.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Use the 1/4 in. 569 compact sheet where you want a rigid panel without the weight of 1/2 in., such as table tops and fixture panels; the 1/2 in. 568 grade suits partition and worktop service. For countertops, choose 350 Postform and respect the minimum postforming radius. Seam compact panels with color-matched adhesive and rout joints flat for an invisible line.
Compact panels are dense and heavy; lift with two people and wear eye and dust protection when cutting or routing.
Order Wilsonart Rio 7947 rosewood laminate or compact panels in the size and grade you need.
