Wilsonart Montana Walnut High-Pressure Laminate Sheet 7110 - Multiple Grades and Sheet Sizes
Regular price $888.00Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart Montana Walnut High-Pressure Laminate Sheet 7110 - Multiple Grades and Sheet Sizes

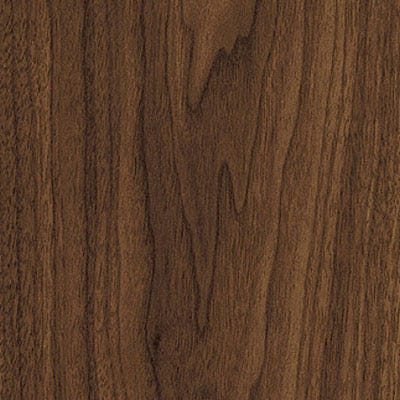

Wilsonart 7110 Montana Walnut is a traditional black walnut laminate with dark brown full-cathedral graining and sienna and golden undertones. Forty-one variants cover ten grades, from standard and postform through Chemsurf, compact and fire-rated HPL, in matte or fine velvet finish. Each order is one sheet in the grade and size you pick.
Key Features:
- Black walnut look: Traditional black walnut design with full cathedral graining in dark brown.
- Warm coloration: Overall brown color with sienna and golden undertones.
- Ten grade options: Includes 107 Standard, 335 Vertical, 350 Postform and High Wear, 390 Chemsurf, 568 and 572 Compact, and 604/605/607 fire-rated grades.
- Two finishes: Offered in 60 Matte Finish and 38 Fine Velvet Finish.
- Self-supporting panels: Compact HPL variants are 1/2 in. thick panels that need no substrate.
- High-wear postform: A 350 Postform High Wear HPL option is available for heavy-use postformed tops.
- Special order: Special-order design with approximately a 2-week lead time when not stocked locally.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 7110 |
| Sell unit | 1 sheet |
| Design number | 7110 |
| Design name | Montana Walnut |
| Material | High-pressure laminate (HPL) |
| Color / finish | Brown with sienna and golden undertones; 60 Matte or 38 Fine Velvet finish |
| Surface / pattern | Dark brown graining with full cathedrals |
| Available finishes | 60 Matte Finish; 38 Fine Velvet Finish |
| Available grades | 107 Standard HPL; 335 Vertical HPL; 350 Postform HPL; 350 Postform High Wear HPL; 390 Chemsurf HPL; 568 Compact HPL; 572 Compact HPL; 604 Fire Rated Vertical HPL; 605 Fire Rated Postform HPL; 607 Fire Rated Standard HPL |
| Available sheet sizes | 30 in. x 96 in., 30 in. x 120 in., 30 in. x 144 in., 36 in. x 96 in., 48 in. x 96 in., 48 in. x 120 in., 48 in. x 144 in., 60 in. x 96 in., 60 in. x 120 in., 60 in. x 144 in.; compact 1/2 in. x 48 in. x 96 in., 1/2 in. x 60 in. x 96 in., 1/2 in. x 60 in. x 120 in., 1/2 in. x 60 in. x 144 in.; compact 60 in. x 144 in. |
| Thickness | 1/2 in. (compact panels only, as printed) |
| Recommended use | Standard for countertops and horizontal work, vertical for cabinet sides and walls, postform for rolled edges, compact for self-supporting panels, Chemsurf for chemical-exposed surfaces, fire-rated grades for code-required interiors |
Coverage & How Much You Need:
A sheet covers the face area of the size chosen, from 30 in. x 96 in. (20 sq ft) to 60 in. x 144 in. (60 sq ft), with 1/2 in. compact panels up to 60 in. x 144 in. Allow trimming margin at all edges and plan walnut graining direction across seams.
Fit and Compatibility:
Bonds to particleboard or MDF cores with contact adhesive; use matching Wilsonart edge banding and a backer sheet under countertops. Compact panels can stand alone where 1/2 in. self-supporting construction is wanted. The High Wear postform grade suits high-traffic postformed tops.
Frequently Asked Questions (FAQ):
Q: What comes with one purchase?
A: One laminate sheet or compact panel in the selected finish, grade and size; substrate, adhesive and edge banding are sold separately.
Q: Which grades come in compact form?
A: The 568 and 572 Compact HPL grades, printed at 1/2 in. thickness, come in panel sizes up to 60 in. x 144 in.
Q: Which finish options are available?
A: 60 Matte Finish and 38 Fine Velvet Finish, with the matte finish covering most grades and sizes.
Q: What is the lead time?
A: This is a special order; if not in stock locally, allow approximately a 2-week lead time.
Q: Which grade for a chemistry lab top?
A: The 390 Chemsurf HPL grade is intended for surfaces exposed to chemicals.
Q: Can the compact panel be used without a core?
A: Yes; compact HPL is a self-supporting 1/2 in. panel designed for use without a separate substrate.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Match the grade to the job: postform grade with a high-wear option for busy kitchens, standard grade for flat-laid counters, and vertical grade for gables and wainscot. For compact panels, carbide tooling and support at both ends of the cut keep the 1/2 in. edges clean. Always balance-sheet a conventional HPL top, and sequence sheets so the cathedral grain flows continuously across visible seams.
Cut laminate edges and dust are hazardous; wear gloves, eye protection and a dust mask, and support heavy compact panels on a full flat table when machining.
Specify Wilsonart 7110 Montana Walnut laminate in the grade and size your build needs.
