Wilsonart Manitoba Maple 7911 High-Pressure Laminate Sheet, Multiple Finishes, Grades and Sheet Sizes
Regular price $150.56Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart Manitoba Maple 7911 High-Pressure Laminate Sheet, Multiple Finishes, Grades and Sheet Sizes

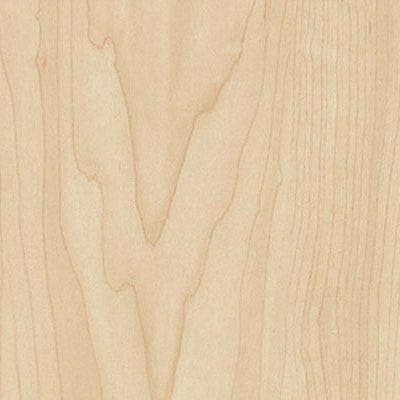

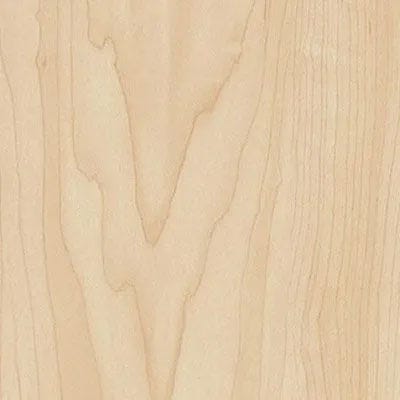

Wilsonart Manitoba Maple design 7911 is a clear natural maple high-pressure laminate with full cathedrals and grain movement, offered in 43 variants. Choices include 3 finishes, 12 grades spanning standard, postforming, vertical, high wear, Chemsurf, compact, fire-rated and RE-COVER options, and 12 sheet sizes. Sold as one sheet; pair with particleboard or MDF and contact adhesive.
Key Features:
- Full cathedral grain: A clear natural maple design with full cathedrals and grain movement.
- Twelve grade options: Grades include 107 Standard, 350 Postform, 335 Vertical, High Wear, 390 Chemsurf, 568 Compact, 604/605/607 Fire Rated and 735 RE-COVER Vertical.
- Compact panels: 568 Compact HPL comes in 1/2 in. thick self-supporting panels up to 60 in. x 144 in.
- Chemical resistant: 390 Chemsurf grade is intended for applications requiring chemical resistance, such as lab surfaces.
- Fire-rated choices: Fire Rated Vertical, Postform and Standard grades serve code-required interiors.
- Wide size range: Sheet sizes from 30 in. x 96 in. up to 60 in. x 144 in. reduce seams on large runs.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 7911 |
| Sell unit | 1 sheet (compact: 1 panel) |
| Design number | 7911 |
| Design name | Manitoba Maple |
| Material | High-pressure laminate (HPL) |
| Color / finish | Clear natural maple |
| Surface / pattern | Full cathedrals with grain movement |
| Available finishes | 60 Matte Finish, 60 Matte Finish + Film, 01 High Gloss Finish + Film |
| Available grades | 107 Standard HPL (general purpose horizontal surfaces), 335 Vertical HPL and 335 Vertical High Wear HPL (cabinet sides, walls), 350 Postform HPL and 350 Postform High Wear HPL (rolled edges), 390 Chemsurf HPL (chemical-resistant lab use), 568 Compact HPL (1/2 in. self-supporting panels), 604 Fire Rated Vertical, 605 Fire Rated Postform, 607 Fire Rated Standard (code-required interiors), 735 RE-COVER Vertical HPL (resurfacing), Crossgrain 350 Postform HPL |
| Available sheet sizes | 12 sizes: 30 in. x 96 in., 30 in. x 120 in., 30 in. x 144 in., 48 in. x 96 in., 48 in. x 120 in., 48 in. x 144 in., 60 in. x 96 in., 60 in. x 120 in., 60 in. x 144 in., plus compact 1/2 in. x 48 in. x 96 in., 1/2 in. x 60 in. x 120 in., 1/2 in. x 60 in. x 144 in. |
| Thickness | 1/2 in. as printed for 568 Compact HPL items only |
| Recommended use | As printed by grade: 107 Standard, 335 Vertical, 350 Postform, 390 Chemsurf, 568 Compact, 604/605/607 Fire Rated, 735 RE-COVER |
Coverage & How Much You Need:
A 48 in. x 96 in. sheet covers 32 sq. ft.; the largest 60 in. x 144 in. sheet covers 60 sq. ft.; a 1/2 in. x 60 in. x 144 in. compact panel covers 60 sq. ft. Size your order so each countertop or panel comes from one sheet where possible.
Fit and Compatibility:
Standard, vertical, postform and fire-rated grades bond to particleboard or MDF with contact adhesive; 568 Compact panels are self-supporting and can be used without a substrate for many applications. Backer sheets, adhesives and edge banding are sold separately.
Frequently Asked Questions (FAQ):
Q: What is included in the order?
A: One sheet or compact panel in the finish, grade and size selected; adhesives, substrates and edge treatments are sold separately.
Q: Which grade is best for countertops?
A: Use 350 Postform for a rolled front edge or 107 Standard for a flat layup; High Wear versions add durability for heavy-use tops.
Q: Do I need a substrate for the compact grade?
A: The 1/2 in. 568 Compact HPL is self-supporting, so it can serve as its own panel for partitions and work surfaces; thinner HPL grades need a bonded substrate.
Q: Is there a chemical-resistant option?
A: Yes, the 390 Chemsurf grade is designed for applications requiring chemical resistance.
Q: Are fire-rated versions available?
A: Yes, 604 Fire Rated Vertical, 605 Fire Rated Postform and 607 Fire Rated Standard grades are listed, in matte finish.
Q: What is the lead time?
A: This is a special order option; if not in stock locally allow approximately a 2-week lead time, with a 24-hour window to cancel.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
This design's breadth makes it easy to match a whole job: run 350 Postform on the tops, 335 Vertical on exposed ends, and specify 568 Compact for self-supporting partitions or lab work. Keep the same finish code across grades so surfaces match. Always use a balanced backer on thinner HPL, roll contact adhesive thoroughly, and handle 60 in. wide sheets with two people to avoid cracking on the fold.
Support full sheets flat during transport and cutting, and wear eye, hearing and dust protection when machining laminate.
Choose your Wilsonart Manitoba Maple 7911 sheet in the exact grade and size for your build.
