Wilsonart Magnolia 5012 High-Pressure Laminate, White Crossweave Abstract, Multiple Grades Including Compact, Chemsurf and Fire Rated
Regular price $970.14Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart Magnolia 5012 High-Pressure Laminate, White Crossweave Abstract, Multiple Grades Including Compact, Chemsurf and Fire Rated

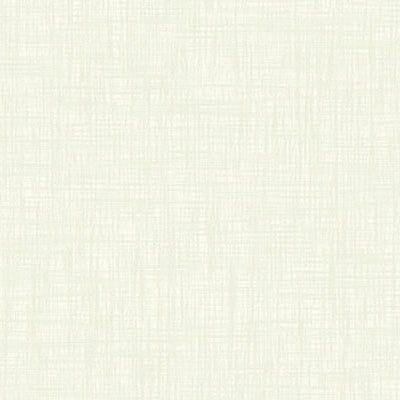

Wilsonart 5012 Magnolia is a white neutral abstract laminate in a soft crossweave pattern that offers overall color and extraordinary dimension, with an approximate design repeat of 49 in. wide by 39.2 in. long. It is offered in Matte and Fine Velvet finishes across eight grades, including Standard, Vertical, Postforming, Postform Highwear, Chemsurf, Compact and Fire Rated Postform. Each order unit is 1 sheet or panel.
Key Features:
- Crossweave abstract: A white neutral abstract in a soft crossweave pattern offering overall color and extraordinary dimension.
- Eight grades: Offered in 107 Standard, 335 Vertical, 350 Postform, 350 Postform Highwear, 390 Chemsurf, 568 and 590 Compact, and 669 Fire Rated Postform HPL.
- Compact panels: Self-supporting compact panels are listed at 1/2 in. and 1 in. thicknesses.
- Chemical-resistant option: 390 Chemsurf HPL is available for laboratory and demanding horizontal applications.
- Fire rated option: 669 Fire Rated Postform HPL is listed in 1/4 in. thickness for code-required interiors.
- Large repeat: Approximate design repeat is 49 in. wide by 39.2 in. long, relevant when matching seams.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 5012 |
| Sell unit | 1 sheet (1 panel for compact items) |
| Design number | 5012 |
| Design name | Magnolia |
| Material | High-pressure laminate (HPL), including compact, chemical-resistant and fire-rated types |
| Available finishes | 60 Matte Finish; 38 Fine Velvet Finish |
| Available grades | 107 Standard HPL (general-purpose horizontal); 335 Vertical HPL (cabinet sides, walls); 350 Postform HPL (rolled edges); 350 Postform Highwear HPL (heavy-use horizontal); 390 Chemsurf HPL (chemical-resistant for labs); 568 Compact HPL 1/2 in. (self-supporting panel); 590 Compact HPL 1 in. (self-supporting panel); 669 Fire Rated Postform HPL 1/4 in. (code-required interiors) |
| Available sheet sizes | 48 in. x 96 in.; 48 in. x 120 in.; 60 in. x 96 in.; 60 in. x 144 in.; plus compact 1/2 in. x 48 in. x 96 in., 1/2 in. x 60 in. x 120 in., 1 in. x 48 in. x 96 in., 1 in. x 60 in. x 144 in.; and fire rated 1/4 in. x 48 in. x 96 in., 1/4 in. x 60 in. x 144 in. |
| Thickness | As printed per item: 1/4 in., 1/2 in. or 1 in. on compact and fire-rated items; not stated for standard grades |
| Surface / pattern | White neutral abstract, soft crossweave; approximate design repeat width 49 in., length 39.2 in. |
| Fire rating | 669 grade is listed as Fire Rated Postform HPL; no class rating is printed |
| Recommended use | Horizontal, vertical, postforming, lab (Chemsurf), self-supporting (compact) or fire-rated interiors as printed per grade |
| Order type | Special order, non-standard option; 24-hour cancellation window; 1-sheet minimum |
Coverage & How Much You Need:
Standard sheets cover about 32 to 60 sq ft (48 in. x 96 in. to 60 in. x 144 in.); 1/2 in. compact panels cover about 32 to 50 sq ft and 1 in. compact panels about 32 to 60 sq ft. Size the job from your cut list, matching the grade and thickness to the application.
Fit and Compatibility:
Standard, vertical, postforming and Chemsurf grades bond with contact adhesive to particleboard, MDF or plywood; compact panels are self-supporting and can be used without a substrate. Adhesive, substrate and balancing backers are sold separately.
Frequently Asked Questions (FAQ):
Q: What is included in one order?
A: One laminate sheet or compact panel in the selected finish, grade and size; substrate, adhesive and backer sheets are sold separately.
Q: Which grade works for a lab worktop?
A: Choose the 390 Chemsurf HPL grade, which is designed for chemical-resistant horizontal surfaces.
Q: Can I use this without a substrate?
A: Yes, the 568 (1/2 in.) and 590 (1 in.) Compact HPL panels are self-supporting and can be used without a carrier panel.
Q: Which grade is fire rated?
A: The 669 Fire Rated Postform HPL is the fire-rated option on this page, listed in 1/4 in. thickness; confirm any required class rating against your local code.
Q: What is the design repeat?
A: The approximate design repeat is 49 in. wide by 39.2 in. long, so plan seam placement to align the crossweave pattern.
Q: What is the lead time?
A: Allow approximately 2 weeks for delivery if not in stock locally; special order laminates have a 24-hour cancellation window and a 1-sheet minimum.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
This is a rare design available across nearly every construction type, so first choose the application, then the grade: postforming for rolled counters, compact for partitions and worktops without substrate, Chemsurf for labs, and the fire-rated grade where code requires it. On compact panels, allow for machining and edge finishing since the color runs through the core differently than on standard HPL. Match the crossweave repeat at seams by dry-fitting panels before gluing.
Compact panels are heavy and laminate edges are sharp; use two-person handling, gloves and eye protection when cutting and installing.
Order Wilsonart 5012 Magnolia laminate in the grade and thickness your project calls for.
