Wilsonart Figured Mahogany 7040K High-Pressure Laminate Sheet - Premium Finish Woodgrain Surfacing
Regular price $184.52Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart Figured Mahogany 7040K High-Pressure Laminate Sheet - Premium Finish Woodgrain Surfacing

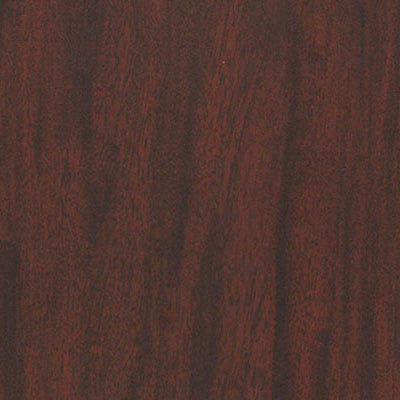

Wilsonart 7040K Figured Mahogany is the premium-finish version of the traditional red mahogany design with exaggerated cathedrals and undulating straight grain. One order unit is one sheet; this page sells 28 variants in 6 premium finishes, 5 grades and 7 sheet sizes. Pair with a balanced backer sheet when bonding to particleboard or MDF.
Key Features:
- Six premium finishes: Choose 01 High Gloss, 07 Textured Gloss, 12 Softgrain or 78 Fine Grain, with High Gloss and Textured Gloss also offered with protective film.
- High-gloss surfaces: 01 High Gloss delivers a polished, reflective face for cabinet fronts and feature panels.
- Five working grades: Grades include 107 Standard, 335 Vertical, 350 Postform, 605 Fire Rated Postform and 735 RE-COVER Vertical.
- RE-COVER resurfacing: 735 RE-COVER Vertical HPL is designed for relaminating over existing vertical surfaces.
- Fire-rated postform: 605 Fire Rated Postform HPL combines a rolled-edge grade with fire-rated construction.
- Seven sheet sizes: Sizes from 30 in. x 144 in. up to 60 in. x 144 in., including the 48 x 96 shop standard.
- Bold grain movement: Exaggerated cathedrals and undulating straight grain give a large-scale figured mahogany look.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 7040K |
| Sell unit | 1 sheet |
| Design number | 7040K |
| Design name | Figured Mahogany |
| Material | High-pressure laminate (HPL) |
| Color / finish | Traditional red mahogany |
| Surface / pattern | Large-scale grain movement with exaggerated cathedrals and undulating straight grain |
| Available finishes | 01 High Gloss Finish, 01 High Gloss Finish + Film, 07 Textured Gloss Finish, 07 Textured Gloss Finish + Film, 12 Softgrain Finish, 78 Fine Grain Finish |
| Available grades | 107 Standard HPL, 335 Vertical HPL, 350 Postform HPL, 605 Fire Rated Postform HPL, 735 RE-COVER Vertical HPL |
| Available sheet sizes | 30" x 144", 36" x 96", 48" x 96", 48" x 120", 60" x 96", 60" x 120", 60" x 144" |
| Recommended use | Standard grade for horizontal surfaces such as countertops, postforming grade for rolled edges, vertical grade for cabinet sides and wall surfaces, RE-COVER for relaminating vertical surfaces, fire-rated postform for code-required interiors |
Coverage & How Much You Need:
A 48 in. x 96 in. sheet yields 32 square feet of decorative surface before trimming; the 60 in. x 144 in. size yields 60 square feet. Lay out doors, tops and panels on the sheet before ordering to minimize seams, and add one backer sheet per decorative face.
Fit and Compatibility:
Bonds to particleboard or MDF with contact adhesive; postforming grade suits rolled-edge fabrication. 735 RE-COVER Vertical HPL is for overlaying existing vertical laminate. Backer sheets and adhesives are sold separately.
Frequently Asked Questions (FAQ):
Q: What is included in one order?
A: One sheet in your selected finish, grade and size from the 28 listed variants; adhesives, backers and substrate are sold separately.
Q: Which finish should I pick for a residential kitchen?
A: 78 Fine Grain or 12 Softgrain are practical low-sheen choices, 07 Textured Gloss adds gloss with texture, and 01 High Gloss gives maximum reflection but shows fingerprints and handling more.
Q: What is RE-COVER grade for?
A: 735 RE-COVER Vertical HPL is intended for relaminating over existing vertical laminate surfaces during refacing projects.
Q: Can I bend a rolled edge with this design?
A: Yes, order 350 Postform HPL or the 605 Fire Rated Postform grade, keeping the bend radius within your equipment's capacity.
Q: Is this a stock or special-order item?
A: It is a special-order, non-standard option; allow approximately a 2-week lead time if not stocked locally, with a 24-hour cancellation window.
Q: Does the film stay on during fabrication?
A: On plus-film variants, leave the protective film on through cutting and handling and remove it after final cleanup.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Glossy K-series faces reward careful handling: keep the film on until the job is done and always balance with a backer to hold tops flat. Use postforming grade for bent edges and vertical grade for tall panels to save weight and cost. Order the same finish code across decks, edges and door faces so sheen matches, and store large sheets flat with faces protected.
Support large sheets on edge-safe benches and wear cut-resistant gloves and eye protection when cutting laminate.
Order your Wilsonart 7040K Figured Mahogany sheet in a premium gloss, softgrain or fine grain finish today.
