Wilsonart Figured Mahogany 7040 High-Pressure Laminate Sheet - Traditional Red Woodgrain Surfacing

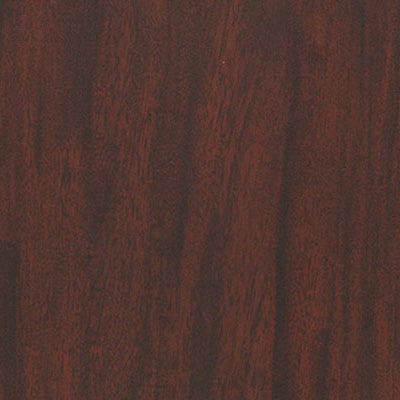

Wilsonart 7040 Figured Mahogany is a traditional red mahogany laminate with large-scale grain movement from exaggerated cathedrals and undulating straight grain. One order unit is one sheet; this page sells 33 variants across 3 finishes, 6 grades and 10 sheet sizes. Pair with a balanced backer when bonding to particleboard or MDF.

Key Features:

• Figured mahogany pattern: Traditional red mahogany with large-scale movement from exaggerated cathedrals and undulating straight grain.
• Three finish options: Offered in 38 Fine Velvet, 60 Matte and 60 Matte with protective film.
• Six grade choices: Grades include 107 Standard, 335 Vertical, 350 Postform plus 604, 605 and 607 fire-rated versions.
• Ten sheet sizes: Sizes run from 30 in. x 96 in. through 60 in. x 144 in. so you can nest parts efficiently.
• Fire-rated variants: 604 Fire Rated Vertical, 605 Fire Rated Postform and 607 Fire Rated Standard grades are listed for code-required interiors.
• Matte + film option: Matte Finish + Film items add a protective film for safe handling and fabrication.
• Fabrication friendly: Standard and postform grades bond with contact adhesive and machine cleanly with carbide tooling.

Specifications Table:

Coverage & How Much You Need:

One sheet covers its printed dimensions; a 48 in. x 96 in. sheet gives 32 square feet and a 60 in. x 144 in. sheet gives 60 square feet before trim. Nest countertop build-ups and face stock on the largest practical size to reduce seams, and order one backer sheet per decorative face.

Fit and Compatibility:

Bond to 45 lb particleboard or MDF with contact adhesive; postforming grade items are for rolled-edge fabrication on postforming equipment. Fire-rated grades are intended for code-required interior applications. Backers and adhesives are sold separately.

Frequently Asked Questions (FAQ):

Q: What comes with one order?
A: One sheet in the finish, grade and size you select from the 33 listed variants; adhesive, backer sheet and substrate are sold separately.

Q: Which grade do I need for a countertop with a rolled edge?
A: Use 350 Postform HPL for the deck when you are bending a front nosing, or 107 Standard HPL for square-edge or flat-laid work.

Q: What is the vertical grade for?
A: 335 Vertical HPL is a lighter, more flexible grade intended for cabinet ends, door faces and other vertical wall surfaces.

Q: Are fire ratings printed for the 604/605/607 grades?
A: The page names them as fire-rated grades but no specific fire class is printed; verify the rating your project's code calls for before ordering.

Q: How fast is delivery?
A: This is a special-order, non-standard option; allow approximately a 2-week lead time if not stocked locally, with a 24-hour window to cancel.

Q: Can I get a protective film on the surface?
A: Yes, select the 60 Matte Finish + Film variant where listed for the 107 Standard or 350 Postform grades.

Expert Verdict — Reviewed by the SuperArbor Pro Desk

Pick postforming grade for any top that gets a bent front edge and standard grade for square-edged tops or overlay work; vertical grade saves weight on tall end panels. The bold cathedral grain reads best on wide spans, so orient the sheet so grain runs the length of a countertop run. Balance every glued top with a backer sheet and let sheets acclimate flat in the shop before fabrication.

Laminate edges and offcuts are sharp; wear cut-resistant gloves and eye protection when cutting and trimming sheets.
