Wilsonart Brazilwood 7946 Woodgrain High-Pressure Laminate Sheet, Multiple Sizes, Grades and Finishes
Regular price $72.72Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart Brazilwood 7946 Woodgrain High-Pressure Laminate Sheet, Multiple Sizes, Grades and Finishes

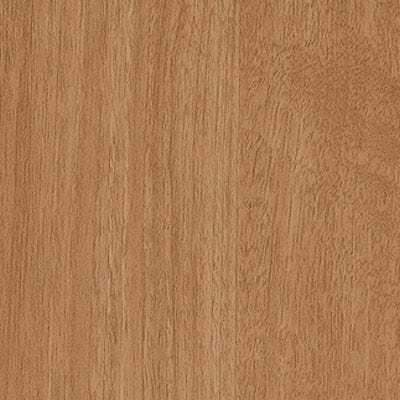

Wilsonart design 7946 Brazilwood is a light, straight-grained Brazilian walnut laminate with subtle planking and slight anigre movement, in light brown with fine brown ticking. This page lists 39 variants: 2 finishes, 8 grades including standard, vertical, postforming, Chemsurf chemical-resistant, compact and fire-rated, and sheet sizes from 30 in. x 96 in. to 1/2 in. x 60 in. x 144 in. One order is one sheet or panel in the chosen variant.
Key Features:
- Brazilian walnut look: Light, straight-grained Brazilian walnut design with subtle planking, slight anigre movement and fine brown ticking.
- Chemical-resistant option: A 390 Chemsurf HPL variant in 60 Matte Finish, 48 in. x 96 in., is offered for laboratory and harsh-use surfaces.
- Compact panels: 568 Compact HPL variants in 1/2 in. thickness in Fine Velvet and Matte finishes, up to 1/2 in. x 60 in. x 144 in.
- Fire-rated vertical: 604 Fire Rated Vertical HPL variant listed in 60 Matte Finish, 48 in. x 96 in.
- High wear grades: Postform High Wear and Vertical High Wear variants in 60 Matte Finish for demanding applications.
- Two finishes: Available in 38 Fine Velvet Finish and 60 Matte Finish.
- Wide size range: Fifteen sheet sizes from 30 in. x 96 in. to 60 in. x 144 in., plus 1/2 in. compact panels.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 7946 |
| Sell unit | 1 sheet |
| Design number | 7946 |
| Design name | Brazilwood |
| Material | High-pressure laminate (HPL) |
| Surface / pattern | Light, straight-grained Brazilian walnut with subtle planking and slight anigre movement; light brown with fine brown ticking |
| Available finishes | 38 Fine Velvet Finish, 60 Matte Finish |
| Available grades | 107 Standard HPL, 335 Vertical HPL, 335 Vertical High Wear HPL, 350 Postform HPL, 350 Postform High Wear HPL, 390 Chemsurf HPL, 568 Compact HPL, 604 Fire Rated Vertical HPL |
| Available sheet sizes | 30" x 96", 30" x 120", 30" x 144", 36" x 84", 36" x 96", 48" x 96", 48" x 120", 48" x 144", 60" x 96", 60" x 120", 60" x 144", 1/2" x 48" x 96", 1/2" x 60" x 96", 1/2" x 60" x 120", 1/2" x 60" x 144" |
| Thickness | 1/2 in. for 568 Compact HPL variants; thickness not printed for other grades |
| Recommended use | Standard for horizontal surfaces, Postform for rolled edges, Vertical for cabinet sides and walls, Chemsurf for chemical-resistant surfacing, Compact for self-supporting panels, fire-rated vertical where code requires |
| Intended use | Countertops, cabinets, lab work surfaces, wall panels and furniture |
Coverage & How Much You Need:
A 48 in. x 96 in. sheet covers 32 sq ft and a 60 in. x 144 in. sheet covers 60 sq ft. Pick a size that trims out cleanly for your run, and balance horizontal installations with a backer sheet on the underside.
Fit and Compatibility:
Standard, vertical and postforming grades bond with contact adhesive to particleboard, MDF or plywood; the 1/2 in. compact panels stand alone. Chemsurf grade pairs with the same substrates where chemical resistance is required. Backer laminate sold separately.
Frequently Asked Questions (FAQ):
Q: What exactly do I receive?
A: One sheet or 1/2 in. compact panel of Brazilwood 7946 in the finish, grade and size selected.
Q: Which grade is best for a lab top?
A: 390 Chemsurf HPL is the chemical-resistant grade listed for this design, in 60 Matte Finish, 48 in. x 96 in.
Q: Is there a self-supporting option?
A: Yes, 568 Compact HPL variants are 1/2 in. thick and can be used without a substrate.
Q: What about fire-rated needs?
A: A 604 Fire Rated Vertical HPL variant in 60 Matte Finish, 48 in. x 96 in. is offered.
Q: Any lead time concerns?
A: The listed example is a special-order option; check availability and allow lead time if the variant is not stocked locally.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
For countertops, the 350 Postform grade rolls a clean bullnose-style edge; keep the postforming radius consistent and warm the sheet properly before bending. In labs, specify Chemsurf over a sealed substrate and seal all cut edges and seams. The 1/2 in. compact panels machine well forpartition and casework panels but are heavy, so use two people on 60 in. x 144 in. sheets.
Support full sheets on a flat table when cutting and wear a dust mask and eye protection; laminate edges and chips are sharp.
Order Wilsonart 7946 Brazilwood laminate in the grade and size your countertop or casework requires.
