Wilsonart 8269 Maple PB Natural Compact High-Pressure Laminate Panel, 3/8 in. Thick, Matte Finish
Regular price $829.86Wilsonart 8269 Maple PB Natural Compact High-Pressure Laminate Panel, 3/8 in. Thick, Matte Finish

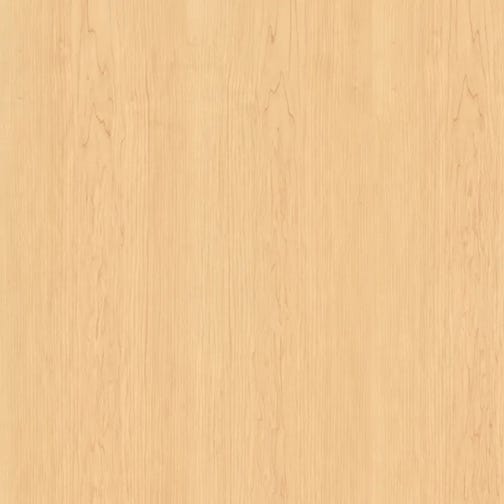

Wilsonart 8269 Maple PB Natural is a classic natural maple woodgrain compact high-pressure laminate panel with a plain sliced bookmatch showing swirled grain in light creamy tones. It is offered in a 60 Matte Finish, 570 Compact HPL grade, in 3/8 in. thick 48 in. x 96 in. or 60 in. x 144 in. panels. Each item code is one self-supporting panel; no substrate is required.
Key Features:
- Natural maple grain: Plain sliced bookmatch maple showcasing swirled grain in light creamy tones.
- Compact construction: 570 Compact HPL is a self-supporting panel that does not require a substrate.
- 3/8 in. thickness: Both listed panels are 3/8 in. thick.
- Matte finish: All variants come in the 60 Matte Finish for a low-sheen surface.
- No design repeat: No design repeat across the full length and width of 4 ft. x 8 ft. or 5 ft. x 12 ft. sheets.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 8269 |
| Sell unit | 1 panel |
| Design number | 8269 |
| Design name | Maple PB Natural |
| Available finishes | 60 Matte Finish (only finish listed) |
| Available grades | 570 Compact HPL (self-supporting panel) |
| Available sheet sizes | 3/8" x 48" x 96"; 3/8" x 60" x 144" |
| Surface / pattern | Plain sliced bookmatch natural maple, swirled grain in creamy tones |
| Thickness | 3/8 in. |
| Recommended use | Self-supporting compact panel for work surfaces, partitions and tabletops |
Coverage & How Much You Need:
One panel covers 32 sq ft (48 in. x 96 in.) or 60 sq ft (60 in. x 144 in.) of face area. Because no design repeat exists across the full sheet, seams can be matched without accounting for pattern repeats.
Fit and Compatibility:
Compact panels can be screwed or used unsupported per the manufacturer's span recommendations, and edges can be machined and polished. For bonded applications use contact adhesive on a suitable core. Substrate, adhesive and edge materials are sold separately.
Frequently Asked Questions (FAQ):
Q: What is included?
A: One 3/8 in. thick compact HPL panel in 60 Matte Finish in the 48 in. x 96 in. or 60 in. x 144 in. size you select.
Q: Does this panel need a substrate?
A: No. Compact HPL is self-supporting, though spans and fastening should follow the manufacturer's fabrication guidance.
Q: What is the panel thickness?
A: Both listed variants are 3/8 in. thick.
Q: Is the pattern repeated across the sheet?
A: No. The design has no repeat across the full length and width of 4 ft. x 8 ft. or 5 ft. x 12 ft. sheets.
Q: How is it installed?
A: Use carbide tooling to machine, drill and polish edges, or bond it with contact adhesive where a core is used.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
This compact maple panel is a good pick for work surfaces, partitions and tabletops where you want a finished edge and no substrate. Machine edges with carbide tooling and dress them with a fine file or polishing stone for a uniform edge line. Choose the 60 in. x 144 in. panel for long runs so you can avoid a seam, and support it flat during transport since 3/8 in. compact is heavy.
Compact laminate is heavy and produces sharp chips when machined, so use two people or a panel carrier for large panels and wear gloves, eye and hearing protection.
Order Wilsonart 8269 Maple PB Natural compact laminate in 3/8 in. for your next work surface.
