Wilsonart 8201 Grey Elm High-Pressure Laminate Sheet, Taupe Elm Grain
Regular price $235.62Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart 8201 Grey Elm High-Pressure Laminate Sheet, Taupe Elm Grain

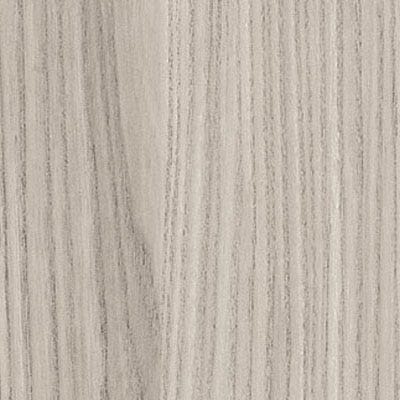

Wilsonart 8201 Grey Elm is a high-pressure laminate sheet with straight elm grain and refined cathedrals in a taupe color with blonde highlights. It is offered in vertical, postforming, high wear, compact, and fire-rated grades, including 1/2 in. compact panels, in sizes from 48 in. x 96 in. to 60 in. x 144 in. Each order unit is one sheet or panel; pair with particleboard or MDF and contact adhesive.
Key Features:
- Taupe elm grain: Grey Elm combines straight grain and refined cathedrals in a taupe color with blonde highlights and subtle contrast.
- Two finishes: Available in 38 Fine Velvet Finish and 60 Matte Finish.
- Compact panels: 568 Compact HPL items come in 1/2 in.-thick self-supporting panels from 48 in. x 96 in. to 60 in. x 144 in.
- Fire-rated grades: 604 Fire Rated Vertical and 605 Fire Rated Postform grades are offered for code-required interiors.
- High wear postform: A 350 Postform High Wear HPL grade adds durability for busy countertops.
- Many size options: Ten sheet size variants are listed across both finishes and grades.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 8201 |
| Sell unit | 1 sheet |
| Design number | 8201 |
| Design name | Grey Elm |
| Available finishes | 38 Fine Velvet Finish, 60 Matte Finish |
| Available grades | 335 Vertical HPL, 350 Postform HPL, 350 Postform High Wear HPL, 568 Compact HPL, 604 Fire Rated Vertical HPL, 605 Fire Rated Postform HPL |
| Available sheet sizes | 48 x 96 in., 48 x 120 in., 48 x 144 in., 60 x 96 in., 60 x 120 in., 60 x 144 in., 1/2 in. x 48 x 96 in., 1/2 in. x 60 x 96 in., 1/2 in. x 60 x 120 in., 1/2 in. x 60 x 144 in. (compact) |
| Material | High-pressure laminate (HPL) sheet and compact laminate panel |
| Thickness | 1/2 in. for 568 Compact HPL items (as printed) |
| Surface / pattern | Taupe elm woodgrain with straight grain, refined cathedrals and blonde highlights |
| Design repeat | Approx. 49.213 in. x 62.205 in. |
| Recommended use | Postform for rolled countertop edges; Vertical for cabinet sides and walls; Compact for self-supporting panels; Fire Rated grades for code-required interiors |
Coverage & How Much You Need:
One sheet covers its full listed face area; a 60 in. x 144 in. sheet equals 60 sq. ft. Add margin for matching the roughly 62 in. design repeat across seams.
Fit and Compatibility:
Bond thin HPL grades to particleboard, MDF or plywood with contact adhesive; 1/2 in. 568 Compact panels are self-supporting. Fire-rated grades are intended for applications requiring fire performance, and a matching Solicor version of the pattern exists in the 8201K design.
Frequently Asked Questions (FAQ):
Q: What is included in one order?
A: One Wilsonart 8201 Grey Elm laminate sheet or 1/2 in. compact panel in the finish, grade and size you select.
Q: Which grade for high-traffic countertops?
A: Choose 350 Postform High Wear HPL in 60 Matte Finish for extra abrasion resistance with a rolled edge.
Q: Do compact panels need a substrate?
A: No, the 1/2 in. 568 Compact HPL panels are self-supporting; thin grades require bonding to a substrate.
Q: Are fire-rated versions available?
A: Yes, 604 Fire Rated Vertical and 605 Fire Rated Postform items are offered in 48 in. x 96 in.
Q: Can I match seams in the grain?
A: Yes, the design repeat is approximately 49.213 in. long by 62.205 in. wide, so plan seams accordingly.
Q: How long is the lead time?
A: Allow approximately two weeks if not stocked locally, with a 24-hour cancellation window.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
For commercial countertops, the High Wear postform grade with 60 Matte Finish is the workhorse choice. Use 1/2 in. compact panels for toilet partitions, lockers and wet areas where a substrate would add bulk. Always balance thin-laminate substrates with a backer sheet and dry-fit the grain repeat before gluing any seams.
Laminate edges are sharp and 1/2 in. compact panels are heavy; wear gloves and eye protection and use two people for large panels.
Order Wilsonart 8201 Grey Elm in the finish, grade and size your build calls for.
