Wilsonart 7984 Mangalore Mango High-Pressure Laminate, Auburn Mango Woodgrain, 30 Variants in 7 Grades and 13 Sheet Sizes
Regular price $942.30Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart 7984 Mangalore Mango High-Pressure Laminate, Auburn Mango Woodgrain, 30 Variants in 7 Grades and 13 Sheet Sizes

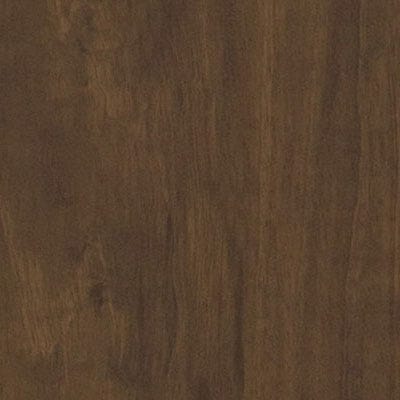

This page sells Wilsonart design 7984 Mangalore Mango, a medium scale mango woodgrain with full cathedrals, straight medium grain and fine texture in light to dark auburn tones. Choose from 30 variants across 4 finishes and 7 grades, including standard, vertical, postforming, Chemsurf, 1/2 in. compact, fire-rated vertical and RE-COVER vertical HPL, in sizes from 30 x 96 in. to 1/2 x 60 x 144 in. Each order unit is 1 sheet or panel of the selected variant.
Key Features:
- Mango woodgrain: Stunning medium scale mango design combining full cathedrals with straight medium grain.
- Auburn texture: Beautiful fine texture with subtle rich tones from light to dark auburn.
- Seven grades: Standard, vertical, postforming, Chemsurf, 1/2 in. compact, fire-rated vertical and RE-COVER vertical HPL variants.
- Film-faced options: Some postforming and compact variants come with a protective film over the finish.
- Code-focused option: 604 Fire Rated Vertical HPL variants are for interior walls where a fire-rated vertical grade is specified.
- Self-supporting compact: 568 Compact HPL panels are 1/2 in. thick for partitions, worktops and other self-supporting uses.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 7984 |
| Sell unit | 1 sheet |
| Design number | 7984 |
| Design name | Mangalore Mango |
| Material | High-pressure laminate (HPL) |
| Surface / pattern | Medium scale mango wood with full cathedrals and straight medium grain, light to dark auburn tones |
| Design repeat | Approx. 51.2 in. length x 49.6 in. width |
| Available finishes | 38 Fine Velvet Finish, 38 Fine Velvet Finish + Film, 60 Matte Finish, 60 Matte Finish + Film |
| Available grades | 107 Standard HPL, 335 Vertical HPL, 350 Postform HPL, 390 Chemsurf HPL, 568 Compact HPL, 604 Fire Rated Vertical HPL, 735 RE-COVER Vertical HPL |
| Available sheet sizes | 30 x 96 in., 30 x 144 in., 36 x 96 in., 48 x 96 in., 48 x 120 in., 48 x 144 in., 60 x 96 in., 60 x 120 in., 60 x 144 in.; compact: 1/2 x 48 x 96 in., 1/2 x 60 x 96 in., 1/2 x 60 x 120 in., 1/2 x 60 x 144 in. |
| Thickness | 1/2 in. (compact 568 HPL variants only, as printed) |
| Recommended use | Standard for horizontal surfaces, postforming for rolled edges, vertical for cabinet sides and walls, Chemsurf for chemical resistance, compact for self-supporting panels, 604 for fire-rated vertical interiors |
Coverage & How Much You Need:
A 48 x 96 in. sheet covers 32 sq ft and a 60 x 144 in. sheet covers 60 sq ft before trim waste; compact panels at 1/2 in. thick cover 48 x 96, 60 x 96, 60 x 120 or 60 x 144 in. depending on the variant. With an approx. 51.2 x 49.6 in. design repeat, plan seams to align the cathedral pattern.
Fit and Compatibility:
Bond to particleboard or MDF with contact adhesive; pair horizontal surfaces with a balancing backer sheet. Use 335 or 604 grades on vertical work, 350 for rolled edges, 390 where chemical resistance is needed, and 568 compact where a self-supporting panel is required.
Frequently Asked Questions (FAQ):
Q: What is included in one order?
A: One sheet or panel in the finish, grade and size you select from the 30 listed variants; adhesives and substrate are sold separately.
Q: Which grade for a kitchen counter?
A: 350 Postform HPL for rolled front edges or 107 Standard HPL for flat-lay tops with separate edge banding.
Q: Which grade for lab or clinical work?
A: The 390 Chemsurf HPL grade is the chemical-resistant option listed for this design.
Q: What sizes and thicknesses are available?
A: Grades come in sheet sizes from 30 x 96 in. to 60 x 144 in.; compact panels are 1/2 in. thick in four sizes up to 1/2 x 60 x 144 in.
Q: What does the + Film finish mean?
A: Those variants ship with a protective film over the finish that is removed after fabrication and installation.
Q: How soon will it arrive?
A: It is a special-order item; if not stocked locally, allow approximately a 2-week lead time for delivery.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
This is the full-range page for the Mangalore Mango design, so pick grade first and finish second: 350 for postformed counters, 335 for cabinet ends, 604 where code calls for a fire-rated vertical grade, and 568 compact for 1/2 in. self-supporting work. Align the roughly 51 in. repeat at seams and book-match feature panels where possible. Use film-faced variants when sheets will move through fabrication to protect the face, and always back-balance tops to prevent warp.
Follow local building and fire codes when specifying fire-rated grades, and handle large sheets with two people and cut-resistant gloves.
Order Wilsonart 7984 Mangalore Mango laminate in your choice of 30 finishes, grades and sizes today.
