Wilsonart 7972K Truss Maple High-Pressure Laminate Sheet, 30 in. x 144 in. to 60 in. x 144 in., Softgrain Natural Maple
Regular price $231.18Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart 7972K Truss Maple High-Pressure Laminate Sheet, 30 in. x 144 in. to 60 in. x 144 in., Softgrain Natural Maple

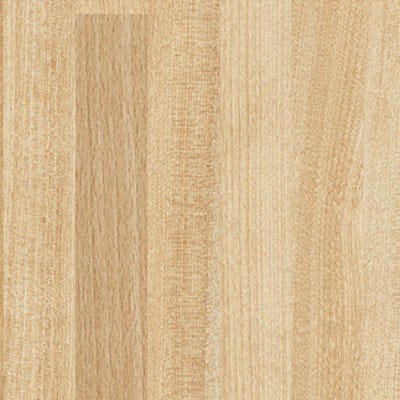

Wilsonart Truss Maple (7972K) is a natural maple laminate design in blocked wood format from the Wilsonart Non-Standard Design Line. Each order is one sheet in 12 Softgrain Finish, available in 350 Postform HPL or 335 Vertical HPL grades across five sheet sizes from 30 in. x 144 in. to 60 in. x 144 in. Use the postforming grade for rolled-edge countertops and vertical grade for cabinet sides.
Key Features:
- Natural maple: Natural maple design in blocked wood format, part of the Wilsonart Non-Standard Design Line.
- Softgrain finish: All seven variants are in 12 Softgrain Finish for a soft, low-sheen texture.
- Postforming grades: Five 350 Postform HPL items support rolled front edges on countertops.
- Vertical grade: 335 Vertical HPL items are intended for cabinet sides and vertical wall surfaces.
- Five sheet sizes: From 30 in. x 144 in. up to 60 in. x 144 in. to fit different countertop and panel layouts.
- Predictable repeat: Approximate design repeat of 31 in. length by 51 in. width.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 7972K |
| Sell unit | 1 sheet |
| Material | High-pressure laminate (HPL) |
| Design name | Truss Maple |
| Available finishes | 12 Softgrain Finish |
| Available grades | 335 Vertical HPL, 350 Postform HPL |
| Available sheet sizes | 30" x 144", 36" x 96", 48" x 96", 60" x 120", 60" x 144" |
| Surface / pattern | Blocked natural maple wood format |
| Design repeat | Approx. 31 in. length x 51 in. width |
| Recommended use | Postforming (350) and vertical (335) as printed by grade |
| Number of variants | 7 listed items |
| Recommended substrate | Bond to particleboard or MDF with contact adhesive |
Coverage & How Much You Need:
A 36 in. x 96 in. sheet covers 24 sq ft and a 60 in. x 144 in. sheet covers 60 sq ft. Plan each countertop or panel run against full sheet lengths and align the approximately 31 in. x 51 in. design repeat at any seams.
Fit and Compatibility:
Bond to particleboard or MDF with contact adhesive and balance the assembly with a matching backer sheet. Postforming grades suit rolled-edge work on a postforming line; vertical grade is for flat vertical applications only. Substrate, adhesive and backer are sold separately.
Frequently Asked Questions (FAQ):
Q: What is included?
A: One sheet of Truss Maple in 12 Softgrain Finish in the 350 Postform or 335 Vertical grade and size you select from seven listed variants.
Q: Which size should I order?
A: Match the sheet to your longest run; 30 in. x 144 in. suits narrow countertops and 60 in. x 144 in. suits wide island or bar tops with fewer seams.
Q: Can this be used for cabinet ends?
A: Yes, order the 335 Vertical HPL grade for cabinet sides, doors and wall panels.
Q: Is it a stock item?
A: No, it is a special order non-standard option; allow approximately 2 weeks lead time if not stocked locally, with a 24-hour cancellation window.
Q: How is it installed?
A: Cut to size, apply contact adhesive to both substrate and sheet, then press and roll the laminate down fully.
Q: How do I prevent warping?
A: Use a stable particleboard or MDF substrate and add a backer sheet to the opposite face to balance the panel.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Pick this 7972K page for the Softgrain finish version of Truss Maple; use 350 Postform grade when rolling front edges and 335 Vertical for casework and wainscot. Route the postforming edge to the radius your equipment requires and keep glue films clean for reliable bonds. Acclimate sheets in the shop before fabrication to limit movement.
Sheets have sharp cut edges and corners; wear cut-resistant gloves and eye protection when cutting, routing and handling large panels.
Order Wilsonart Truss Maple Softgrain laminate in the grade and size for your next build.
