Wilsonart 7941 Tan Echo High Pressure Laminate Sheet, Standard to Fire Rated Grades
Regular price $235.62Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart 7941 Tan Echo High Pressure Laminate Sheet, Standard to Fire Rated Grades

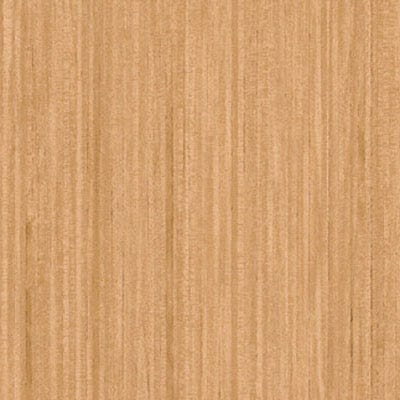

Wilsonart Tan Echo is a reconstituted wood laminate with thin, alternating stripes in organic amber tones forming a layered composite-wood look. The design spans 38 variants across 2 finishes, 8 grades and 14 sheet sizes, including 1/2 in. compact panels and fire-rated grades. One order is one sheet or panel.
Key Features:
- Amber stripes: Thin alternating stripes in organic amber tones create a layered composite-wood design.
- Two finishes: Available in 38 Fine Velvet and 60 Matte finishes.
- Eight grades: Grades include 107 Standard, 335 Vertical, 350 Postform, High Wear Postform, 390 Chemsurf, 568 Compact, 604 Fire Rated Vertical and 605 Fire Rated Postform.
- Fire rated postform: 605 Fire Rated Postform HPL combines rolled-edge capability with fire-rated construction.
- Compact option: 568 Compact HPL panels are 1/2 in. thick and self-supporting, up to 60 x 144 in.
- Chemical resistant option: 390 Chemsurf HPL serves laboratory and demanding surfaces.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 7941 |
| Sell unit | 1 sheet |
| Design number | 7941 |
| Design name | Tan Echo |
| Available finishes | 38 Fine Velvet Finish, 60 Matte Finish |
| Available grades | 107 Standard HPL, 335 Vertical HPL, 350 Postform HPL, 350 Postform High Wear HPL, 390 Chemsurf HPL, 568 Compact HPL, 604 Fire Rated Vertical HPL, 605 Fire Rated Postform HPL |
| Available sheet sizes | 30 x 96, 30 x 120, 30 x 144, 36 x 96, 48 x 96, 48 x 120, 48 x 144, 60 x 96, 60 x 120, 60 x 144 in., plus 1/2 in. compact in 48 x 96, 60 x 96, 60 x 120, 60 x 144 in. (14 total sizes) |
| Surface / pattern | Reconstituted wood with thin alternating stripes in organic amber tones |
| Recommended use | 107 Standard horizontal, 335 Vertical vertical, 350 Postform rolled edges, 568 Compact self-supporting, 390 Chemsurf chemical resistance, 604/605 fire-rated use |
| Thickness | 1/2 in. for 568 Compact HPL items (as printed); other grades' thickness not printed |
| Material | High pressure laminate |
Coverage & How Much You Need:
From 30 x 96 in. (20 sq. ft.) to 60 x 144 in. (60 sq. ft.) per sheet, with 1/2 in. compact panels covering up to 60 sq. ft. Size the job by laying out each top or panel along the grain with trim allowance at all edges.
Fit and Compatibility:
Bond to particleboard or MDF with contact adhesive and pair with Wilsonart edge banding and balancing backers (sold separately). Fire-rated grades are used where the specified assembly requires them; compact panels require no substrate. Finish availability varies by grade and size, so confirm the item code.
Frequently Asked Questions (FAQ):
Q: What is included in one order?
A: One laminate sheet or 1/2 in. compact panel in the finish, grade and size you select, from 38 listed variants.
Q: Which grade for a rolled-edge countertop?
A: 350 Postform HPL for standard work, 350 Postform High Wear for heavy service, or 605 Fire Rated Postform where the spec calls for fire-rated material.
Q: Is there a chemical-resistant version?
A: Yes, 390 Chemsurf HPL in Matte finish, in 60 x 144 in. and 48 x 96 in. sizes.
Q: What are the compact panels?
A: 568 Compact HPL panels are 1/2 in. thick, self-supporting, and offered in four sizes up to 60 x 144 in.
Q: Which grade for cabinet ends?
A: 335 Vertical HPL is the vertical-grade choice for cabinet sides, doors and wall surfaces.
Q: What is the lead time?
A: Special order; allow approximately a 2-week lead time if not stocked locally.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Tan Echo's amber striping reads warm next to natural woods, so sample it against your cabinet stock before committing. Use 350 Postform in Fine Velvet for most tops, step to Chemsurf for labs and to compact panels for self-supporting worktops or partitions. Keep grain direction consistent across adjacent pieces to make the stripes align, balance every standard top with backer laminate, and let sheets acclimate flat in the shop overnight before gluing.
Large sheets and 1/2 in. compact panels are heavy and can crack if flexed; carry with two people on edge and wear gloves and eye protection while cutting.
Order Wilsonart Tan Echo laminate in the finish, grade and sheet size your project requires.
