Wilsonart 7816 Solar Oak High-Pressure Laminate Sheet, Medium-Brown Rotary Oak Woodgrain, Fire-Rated and Chemical-Resistant Options, Multiple Sizes
Regular price $173.28Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart 7816 Solar Oak High-Pressure Laminate Sheet, Medium-Brown Rotary Oak Woodgrain, Fire-Rated and Chemical-Resistant Options, Multiple Sizes

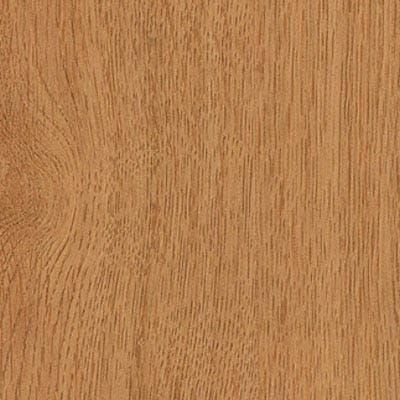

This is Wilsonart design 7816 Solar Oak, a traditional rotary cut oak laminate in a medium brown with golden undertones and dark brown graining. One order unit is one sheet, offered in 32 variants across 60 Matte Finish and seven grades including three fire-rated options and Chemsurf. Pair fire-rated postform, vertical and standard grades for code-driven commercial interiors.
Key Features:
- Rotary oak design: A traditional rotary cut oak laminate in a medium brown color with golden undertones and dark brown graining.
- Fire-rated grades: 604 Fire Rated Vertical, 605 Fire Rated Postform and 607 Fire Rated Standard HPL grades are offered in 48 x 96 in.
- Chemical resistance: 390 Chemsurf HPL is offered in 48 x 96, 60 x 96 (via listed sizes) and 60 x 144 in. for chemically demanding surfaces.
- Seven grade options: Grades include Standard, Vertical, Postform, Chemsurf and the three fire-rated grades.
- Ten sheet sizes: Sizes range from 30 x 96 in. to 60 x 144 in. across the standard, vertical and postform grades.
- Special order program: Non-standard special order with approximately a 2-week lead time if not stocked locally and a 24-hour cancellation window.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 7816 |
| Sell unit | 1 sheet |
| Design number | 7816 |
| Design name | Solar Oak |
| Material | High-pressure laminate (HPL) |
| Color / finish | Medium brown with golden undertones and dark brown graining |
| Surface / pattern | Traditional rotary cut oak, 60 Matte Finish |
| Available finishes | 60 Matte Finish |
| Available grades | 107 Standard HPL, 335 Vertical HPL, 350 Postform HPL, 390 Chemsurf HPL, 604 Fire Rated Vertical HPL, 605 Fire Rated Postform HPL, 607 Fire Rated Standard HPL |
| Available sheet sizes | 30 x 96 in., 30 x 120 in., 30 x 144 in., 36 x 96 in., 48 x 96 in., 48 x 120 in., 48 x 144 in., 60 x 96 in., 60 x 120 in., 60 x 144 in. |
| Recommended use | Standard for horizontal surfaces, Vertical for vertical surfaces, Postform for rolled edges, Chemsurf for chemical resistance, fire-rated grades for code-required interiors |
Coverage & How Much You Need:
One sell unit is a single sheet; coverage ranges from 30 x 96 in. (20 sq ft) to 60 x 144 in. (60 sq ft) depending on the grade and size selected. Order extra for postforming allowances, seams and trim waste.
Fit and Compatibility:
Standard, vertical and postform grades bond to particleboard, MDF or plywood with contact adhesive. Use a balancing backer laminate on countertop undersides to prevent warping, sold separately. Chemsurf and fire-rated items in the same design coordinate visually across a commercial fit-out.
Frequently Asked Questions (FAQ):
Q: What is included in one order?
A: One laminate sheet in the grade and size selected; 32 variants of design 7816 Solar Oak are offered, all in 60 Matte Finish.
Q: Which grade for a code-required interior?
A: Choose 607 Fire Rated Standard for horizontal surfaces, 604 Fire Rated Vertical for walls and cabinet ends, or 605 Fire Rated Postform for rolled countertop edges, each in 48 x 96 in.
Q: Do I need a substrate?
A: Yes, all listed grades are sheet laminates that must be bonded to a stable substrate such as particleboard or MDF with contact adhesive.
Q: Is there a chemical-resistant option?
A: Yes, 390 Chemsurf HPL provides the chemical-resistant grade for lab and healthcare worktops in the same Solar Oak design.
Q: What is the lead time?
A: Allow approximately 2 weeks for delivery as a special order if not stocked locally, with a 24-hour cancellation window.
Q: How do I keep the top flat?
A: Apply a balancing backer HPL sheet to the underside of the substrate; backer laminate is sold separately.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
When a job specifies fire-rated surfaces, use the matching fire-rated grade for every face of the assembly rather than mixing rated and unrated laminates, and confirm the required class with your code authority before ordering. The medium-brown Solar Oak grain hides wear better than lighter oak tones in high-traffic areas. For countertops, the 605 fire-rated postform grade lets you roll the edge while keeping the rating. As with any HPL job, keep sheets and substrate acclimated in the shop for 48 hours before gluing.
Sheets have sharp cut edges and large panels are heavy; wear cut-resistant gloves and eye protection, use a two-person lift for big sheets, and verify fire-rating requirements with local building codes before installation.
