Wilsonart 5014 Battleship Steel Grey Crossweave HPL Laminate Sheets
Regular price $888.00Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart 5014 Battleship Steel Grey Crossweave HPL Laminate Sheets

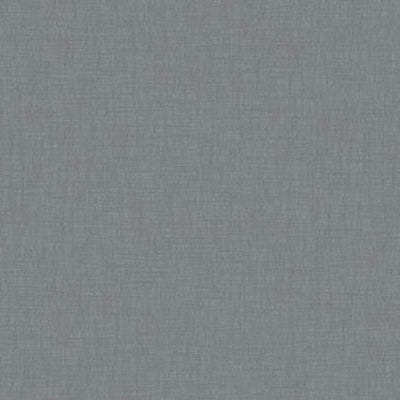

Wilsonart 5014 Battleship is a cool steel grey abstract in a soft crossweave high-pressure laminate that reads as overall color up close, with a random pattern repeat. The design sells across vertical, postforming, Chemsurf, compact and fire-rated postforming grades in two finishes and six sheet sizes. Each variant is one sheet.
Key Features:
- Soft crossweave: Battleship is a cool steel grey abstract in a soft crossweave pattern offering overall color and up-close interest.
- Random repeat: This pattern repeats randomly across the sheet.
- Two finishes: Offered in 38 Fine Velvet Finish and 60 Matte Finish.
- Broad grade range: Available in 335 Vertical HPL, 350 Postform HPL, 390 Chemsurf HPL, 572 Compact HPL and 605 Fire Rated Postform HPL.
- Six sheet sizes: Sizes include 48 in. x 96 in., 48 in. x 120 in., 48 in. x 144 in., 60 in. x 120 in., 60 in. x 144 in. and 3/8 in. x 60 in. x 144 in. compact panel.
- Fire-rated option: A 605 Fire Rated Postform HPL variant in 48 in. x 96 in. is listed for code-required interiors.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 5014 |
| Sell unit | 1 sheet |
| Design number | 5014 |
| Design name | Battleship |
| Surface / pattern | Cool steel grey abstract in a soft crossweave, pattern repeats randomly |
| Available finishes | 38 Fine Velvet Finish, 60 Matte Finish |
| Available grades | 335 Vertical HPL, 350 Postform HPL, 390 Chemsurf HPL, 572 Compact HPL, 605 Fire Rated Postform HPL |
| Available sheet sizes | 3/8 in. x 60 in. x 144 in., 48 in. x 96 in., 48 in. x 120 in., 48 in. x 144 in., 60 in. x 120 in., 60 in. x 144 in. |
| Recommended use | Vertical for cabinet sides and wall surfaces, Postform for rolled edges, Chemsurf for chemical-resistant applications, Compact for self-supporting panels, Fire Rated Postform where specified |
| Compact thickness (as printed) | 3/8 in. on the listed compact item |
Coverage & How Much You Need:
A 48 in. x 96 in. sheet covers 32 sq ft; the largest 60 in. x 144 in. sheet covers 60 sq ft. Map your cut list to the random-repeat pattern so seams and panel joints line up cleanly.
Fit and Compatibility:
Bond to particleboard, MDF or plywood core with contact adhesive; backer laminate is sold separately for underside balancing. Compact panels can serve as self-supporting surfaces, and postforming grades are for postforming equipment with the proper radius.
Frequently Asked Questions (FAQ):
Q: What comes with my order?
A: One sheet in the chosen finish, grade and size; substrate, adhesive and backer laminate are sold separately.
Q: Which grade for a lab bench?
A: Choose 390 Chemsurf HPL, the chemical-resistant grade in this design, for lab and similarly demanding surfaces.
Q: Is there a fire-rated option?
A: Yes, a 605 Fire Rated Postform HPL variant is listed in 48 in. x 96 in.; no fire class is printed in the sources.
Q: What sizes can I get?
A: Listed sizes run from 48 in. x 96 in. through 60 in. x 144 in., including a 3/8 in. compact panel at 60 in. x 144 in.
Q: What is the lead time?
A: This is a special-order, non-standard option; allow approximately 2 weeks for delivery if not stocked locally, with a 24-hour cancellation window.
Q: Do I need a backer?
A: A balancing backer on the underside of a bonded assembly is standard practice to help prevent warping.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Battleship's low-contrast crossweave hides seams and fingerprints well on high-traffic commercial work. Pick 350 Postform for rolled countertops, 335 Vertical for cabinet ends and tall panels, and 572 Compact when you want a self-supporting panel you can route and detail directly. Always pair a decorative top with a backer on the underside, and dry-fit the random-repeat pattern before applying contact adhesive.
Large sheets are heavy and edges are sharp; handle flat with a helper and wear gloves and eye protection during cutting and routing.
Order Wilsonart 5014 Battleship laminate in the grade and size that fits your build.
