Wilsonart 4940 Astro Strandz Laminate, Compact, Fire-Rated Vertical, Chemsurf, Standard, Vertical and Postform Grades, Multiple Sizes
Regular price $442.59Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart 4940 Astro Strandz Laminate, Compact, Fire-Rated Vertical, Chemsurf, Standard, Vertical and Postform Grades, Multiple Sizes

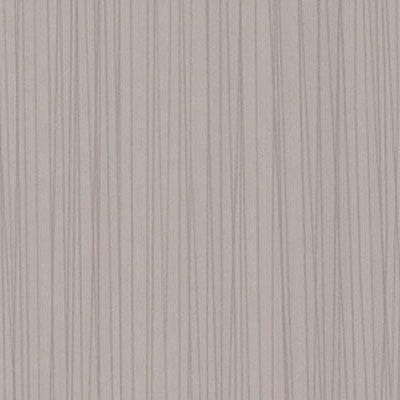

Wilsonart 4940 Astro Strandz is a taupe laminate with mid-toned grey converging lines, offered in 15 variants spanning 3/8 in. and 1/2 in. compact panels, fire-rated vertical grade, Chemsurf, standard, vertical and postforming grades. Each order is one sheet or panel in the selected combination.
Key Features:
- Warm linear neutral: Taupe background with mid-toned grey converging lines suits wood and neutral palettes.
- Two compact thicknesses: 568 Compact HPL at 1/2 in. and 572 Compact HPL at 3/8 in., as printed.
- Fire-rated option: 604 Fire Rated Vertical HPL is offered for code-required vertical interiors.
- Chemical-resistant option: 390 Chemsurf grade is available for lab and work surfaces.
- Finish choices: Available in 38 Fine Velvet and 60 Matte finishes.
- Special order: If not stocked locally, allow approximately a 2-week lead time for delivery.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 4940 |
| Sell unit | 1 sheet (compact: 1 panel) |
| Design number | 4940 |
| Design name | Astro Strandz |
| Material | High-pressure laminate (HPL); compact panels 3/8 in. and 1/2 in. thick |
| Surface / pattern | Taupe background with mid-toned grey converging lines |
| Available finishes | ['38 Fine Velvet Finish', '60 Matte Finish'] |
| Available grades | ['107 Standard HPL', '335 Vertical HPL', '350 Postform HPL', '390 Chemsurf HPL', '568 Compact HPL', '572 Compact HPL', '604 Fire Rated Vertical HPL'] |
| Available sheet sizes | ['48" x 96"', '60" x 144"', '3/8" x 48" x 96" (572 compact)', '1/2" x 48" x 96" (compact)', '1/2" x 60" x 96" (compact)', '1/2" x 60" x 120" (compact)', '1/2" x 60" x 144" (compact)'] |
| Thickness | 3/8 in. (572 Compact) and 1/2 in. (568 Compact), as printed |
| Recommended use | Standard for horizontal surfaces; vertical for cabinet sides and walls; postforming for rolled edges; Chemsurf for chemical resistance; compact for self-supporting panels; 604 for fire-rated vertical surfaces |
Coverage & How Much You Need:
Standard and Chemsurf sheets cover up to 60 sq. ft. (60 in. x 144 in.); compact panels range from 32 sq. ft. (48 in. x 96 in.) to 60 sq. ft. (60 in. x 144 in.). Size jobs so seams fall away from primary sightlines and keep line direction consistent.
Fit and Compatibility:
Bond sheet grades to particleboard or MDF with contact adhesive; compact panels in 1/2 in. and 3/8 in. install self-supporting without a substrate. Use Chemsurf where chemical resistance is required and 604 Fire Rated Vertical where codes demand it. Backer sheet recommended under bonded tops.
Frequently Asked Questions (FAQ):
Q: What compact thicknesses are offered?
A: 1/2 in. (568 Compact HPL) and 3/8 in. (572 Compact HPL), both in Matte finish, 48 in. x 96 in. base sizes.
Q: Is there a fire-rated grade?
A: Yes, 604 Fire Rated Vertical HPL in Matte finish, 48 in. x 96 in.; no fire class is printed in the sources.
Q: Do I need a substrate for compact panels?
A: No, compact panels are self-supporting; the sheet grades must be bonded to a stable core.
Q: What finishes come with this design?
A: 38 Fine Velvet and 60 Matte, depending on grade and size.
Q: Which grade should I use for a rolled countertop edge?
A: 350 Postform HPL, available in Fine Velvet and Matte finishes up to 60 in. x 144 in.
Q: What is the lead time?
A: Approximately 2 weeks if not stocked locally.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Astro Strandz is the warmer sibling of Vapor Strandz; pair it with oak or walnut woodgrain laminates and use the 3/8 in. compact for lighter-duty partitions where 1/2 in. is more than needed. Keep the converging lines running toward the main viewpoint in rooms. Chemsurf edges must be sealed per fabricator practice since the core, not the laminate, is the vulnerable part.
Support compact panels fully during cutting and routing; use two-person handling for large panels and wear eye and respiratory protection.
Order Wilsonart Astro Strandz laminate in the grade, thickness and size for your next countertop or panel project.
