Wilsonart 4877 Grey Mesh Decorative Laminate Sheet, Soft Grey Grid Weave, Multiple Grades and Sizes
Regular price $1,056.90Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart 4877 Grey Mesh Decorative Laminate Sheet, Soft Grey Grid Weave, Multiple Grades and Sizes

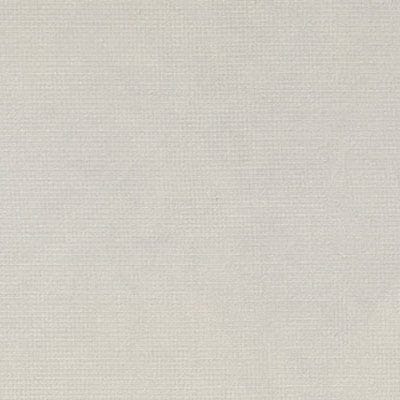

Wilsonart 4877 Grey Mesh is a specialty decorative high-pressure laminate featuring a small scale grid pattern created by a weave of soft light greys. It is offered in Fine Velvet and Matte finishes across standard, vertical, postforming, Chemsurf, compact and RE-COVER grades in sizes from 30 in. x 96 in. up to 60 in. x 144 in. Each variant is sold as one sheet.
Key Features:
- Soft grey weave: A small scale grid pattern created by a weave of soft light grey tones.
- Two finish choices: Available in 38 Fine Velvet Finish and 60 Matte Finish.
- Six grade options: Offered in 107 Standard, 335 Vertical, 350 Postform, 390 Chemsurf, 568 Compact and 735 RE-COVER Vertical HPL.
- 1/2 in. compact panels: The 568 Compact HPL grade comes in 1/2 in. thick panels for self-supporting uses.
- Broad size range: Sizes run from 30 in. x 96 in. up to 60 in. x 144 in.
- Refacing option: The 735 RE-COVER Vertical HPL grade suits vertical refacing work.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 4877 |
| Sell unit | 1 sheet |
| Design number | 4877 |
| Design name | Grey Mesh |
| Surface / pattern | Small scale grid pattern, weave of soft light greys |
| Available finishes | 38 Fine Velvet Finish, 60 Matte Finish |
| Available grades | 107 Standard HPL, 335 Vertical HPL, 350 Postform HPL, 390 Chemsurf HPL, 568 Compact HPL, 735 RE-COVER Vertical HPL |
| Available sheet sizes | 30" x 96", 30" x 120", 30" x 144", 36" x 96", 48" x 96", 48" x 120", 48" x 144", 60" x 96", 60" x 120", 60" x 144", 1/2" x 60" x 96" (compact), 1/2" x 60" x 144" (compact) |
| Thickness | 1/2 in. (compact grade only, as printed) |
| Recommended use | Standard for horizontal surfaces, postforming for rolled edges, vertical for cabinet sides and walls, Chemsurf for chemical-resistant surfaces, compact for self-supporting panels, RE-COVER for vertical refacing |
Coverage & How Much You Need:
A 48 in. x 96 in. sheet covers 32 sq ft and a 60 in. x 144 in. sheet covers 60 sq ft. Plan countertop and wall work so parts share one grain direction per sheet.
Fit and Compatibility:
Bond standard grades to particleboard or MDF with contact adhesive and balance with a backer sheet underneath countertops. Compact 1/2 in. panels can stand alone. Pair with other Wilsonart Mesh tones, such as Sheer Mesh, for tonal contrasts within one installation.
Frequently Asked Questions (FAQ):
Q: What comes with my order?
A: One sheet in the finish, grade and size variant you choose; adhesive and substrate are sold separately.
Q: Which sheet size fits a typical countertop run?
A: A 60 in. x 96 in. sheet covers an 8 ft deck with front build-up; longer runs need a 60 in. x 120 in. or 60 in. x 144 in. sheet or a planned seam.
Q: Is the compact grade glued down like regular laminate?
A: No, the 1/2 in. 568 Compact HPL panels are self-supporting and are mechanically fastened or joined rather than contact-bonded to a substrate.
Q: Can this be used on cabinet ends and walls?
A: Yes, select the 335 Vertical HPL grade, which is intended for vertical surfaces such as cabinet sides and wall panels.
Q: How long does delivery take?
A: This is a special order non-standard option; if not stocked locally allow approximately two weeks, with a 24-hour cancellation window.
Q: Do you offer a chemical-resistant version?
A: Yes, the 390 Chemsurf HPL grade is intended for surfaces exposed to chemicals such as in labs and healthcare work.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Grey Mesh is a versatile light grey neutral; the small grid scale hides seams and incidental scratching better than solid colors. For postformed countertops order the 350 grade in Fine Velvet, which is the more common offering for that grade. Always balance-bond backs and let large sheets acclimate flat in the shop before gluing. On decks that take heavy wear, consider a High Wear variant if available in the companion design 4878/4879 listings.
Wear gloves and eye protection when routing or shearing laminate; dust from cutting HPL requires collection or a respirator.
Order Wilsonart 4877 Grey Mesh laminate in your choice of finish, grade and sheet size.
