Wilsonart 4820 Carbon EV High-Pressure Laminate Sheet 30 in. x 96 in. to 60 in. x 144 in., Matte Finish
Regular price $888.00Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart 4820 Carbon EV High-Pressure Laminate Sheet 30 in. x 96 in. to 60 in. x 144 in., Matte Finish

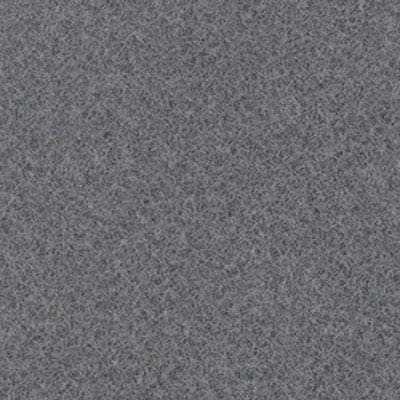

Wilsonart 4820 Carbon EV is a small scale fiber laminate with a dark grey background, charcoal and blue hints and a layer of small light grey fibers, in 60 Matte Finish. It spans 13 sheet sizes, including 1/2 in. and 3/8 in. compact panels, across eight grades from standard to fire-rated. Each order unit is one sheet or panel; pair it with particleboard, MDF or use compact panels self-supported.
Key Features:
- Fiber design: Small scale fiber pattern with a dark grey background, charcoal and blue hints and small light grey fibers.
- Matte finish: Offered in 60 Matte Finish across all listed variants.
- Eight grade options: Grades include 107 Standard, 335 Vertical, 350 Postform, 390 Chemsurf, 568 Compact, 572 Compact, 604 Fire Rated Vertical and 605 Fire Rated Postform HPL.
- Compact panels: 568 Compact HPL is offered in 1/2 in. thickness and 572 Compact HPL in 3/8 in. thickness, both self-supporting.
- Fire-rated options: 604 and 605 fire-rated grades serve code-required interior applications.
- Wide size range: Sheet sizes run from 30 in. x 96 in. to 60 in. x 144 in.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 4820 |
| Sell unit | 1 sheet |
| Design number | 4820 |
| Design name | Carbon EV |
| Available finishes | 60 Matte Finish |
| Available grades | 107 Standard HPL, 335 Vertical HPL, 350 Postform HPL, 390 Chemsurf HPL, 568 Compact HPL, 572 Compact HPL, 604 Fire Rated Vertical HPL, 605 Fire Rated Postform HPL |
| Available sheet sizes | 30 in. x 96 in., 30 in. x 120 in., 30 in. x 144 in., 36 in. x 96 in., 48 in. x 96 in., 48 in. x 120 in., 48 in. x 144 in., 60 in. x 96 in., 60 in. x 120 in., 60 in. x 144 in.; compact 568 panels 1/2 in. x 60 in. x 120 in., 1/2 in. x 60 in. x 144 in.; compact 572 panel 3/8 in. x 60 in. x 144 in. |
| Thickness | 1/2 in. for 568 Compact HPL; 3/8 in. for 572 Compact HPL; sheet thickness not printed for HPL grades |
| Surface / pattern | Small scale fiber design, dark grey with charcoal and blue hints and small light grey fibers |
| Recommended use | Standard and postforming for horizontal surfaces, vertical for casework and walls, compact for self-supporting panels, Chemsurf for chemical-resistant surfaces, fire-rated grades for code-required interiors |
Coverage & How Much You Need:
Flat HPL sheets cover from 20 sq. ft. (30 x 96) to 60 sq. ft. (60 x 144) before trim; the 1/2 in. 568 compact panels cover 50 to 60 sq. ft. and the 3/8 in. 572 panel covers 60 sq. ft. Size the job by deck area plus edges and splash, adding waste for sink and cooktop cutouts.
Fit and Compatibility:
Flat grades bond to particleboard or MDF with contact adhesive and pair with a Wilsonart backer sheet; compact panels are self-supporting and need no substrate. Postforming grades require postforming equipment; compact panels cannot be postformed.
Frequently Asked Questions (FAQ):
Q: What is included in one order?
A: One laminate sheet or compact panel in the grade and size you select, in 60 Matte Finish.
Q: What is the difference between 568 and 572 compact?
A: Both are self-supporting compact panels; 568 is listed in 1/2 in. thickness and 572 in 3/8 in., so pick 3/8 in. where lighter weight or thinner profiles are wanted.
Q: Are there fire-rated options?
A: Yes, 604 Fire Rated Vertical HPL and 605 Fire Rated Postform HPL are listed for code-required interior applications.
Q: Can this go in a lab or clinic?
A: The 390 Chemsurf grade is intended for chemical-resistant surfaces such as lab worktops.
Q: How do I finish the edges of compact panels?
A: Route edges square or with a small radius using sharp carbide tooling; no edge banding is required since the panel is colored through, though sources do not state edge treatment.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Carbon EV's dark grey-blue tone hides seams and wear, making it a strong choice for high-traffic casework, partitions and worktops. Use the 3/8 in. 572 panel for lighter self-supporting builds and 1/2 in. 568 where stiffness over spans matters. On flat countertop work, always balance with backer laminate to prevent bow. Compact panels are heavy and brittle at corners; support the full sheet on a scoring table and drill relief holes at inside corners of cutouts.
Cut compact panels with sharp carbide tooling and proper dust extraction; wear eye protection, gloves and a dust mask, as edges and chips are sharp.
Choose your grade and thickness and order Wilsonart 4820 Carbon EV matte laminate today.
