Wilsonart 4814 Tungsten EV High-Pressure Laminate Sheet 30 in. x 96 in. to 60 in. x 144 in., Matte Finish
Regular price $147.16Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart 4814 Tungsten EV High-Pressure Laminate Sheet 30 in. x 96 in. to 60 in. x 144 in., Matte Finish

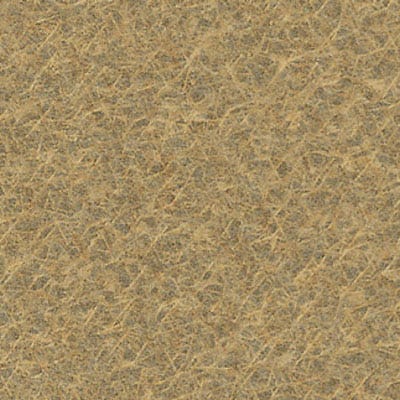

Wilsonart 4814 Tungsten EV is a small scale fiber laminate with a bronze background, grey hints and a layer of small gold fibers, in 60 Matte Finish. It spans 14 sheet sizes, including 1/2 in. compact panels from 48 in. x 96 in. to 60 in. x 144 in., and eight grades from standard to fire-rated postforming. Each order unit is one sheet or panel; pair it with particleboard, MDF or a self-supporting core as the grade requires.
Key Features:
- Fiber design: Small scale fiber pattern with a bronze background, grey hints and small gold fibers.
- Matte finish: Offered in 60 Matte Finish across all listed variants.
- Eight grade options: Grades include 107 Standard, 335 Vertical, 335 Vertical High Wear, 350 Postform, 390 Chemsurf, 568 Compact, 604 Fire Rated Vertical and 605 Fire Rated Postform HPL.
- Compact panels: 568 Compact HPL panels are 1/2 in. thick and self-supporting without a substrate.
- Fire-rated options: 604 and 605 fire-rated grades are for code-required interior applications.
- Wide size range: Sheet sizes run from 30 in. x 96 in. to 60 in. x 144 in.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 4814 |
| Sell unit | 1 sheet |
| Design number | 4814 |
| Design name | Tungsten EV |
| Available finishes | 60 Matte Finish |
| Available grades | 107 Standard HPL, 335 Vertical HPL, 335 Vertical High Wear HPL, 350 Postform HPL, 390 Chemsurf HPL, 568 Compact HPL, 604 Fire Rated Vertical HPL, 605 Fire Rated Postform HPL |
| Available sheet sizes | 30 in. x 96 in., 30 in. x 120 in., 30 in. x 144 in., 36 in. x 96 in., 48 in. x 96 in., 48 in. x 120 in., 48 in. x 144 in., 60 in. x 96 in., 60 in. x 120 in., 60 in. x 144 in.; compact 568 panels 1/2 in. x 48 in. x 96 in., 1/2 in. x 60 in. x 96 in., 1/2 in. x 60 in. x 120 in., 1/2 in. x 60 in. x 144 in. |
| Thickness | 1/2 in. for 568 Compact HPL panels; sheet thickness not printed for HPL grades |
| Surface / pattern | Small scale fiber design, bronze with grey hints and small gold fibers |
| Recommended use | Standard and postforming for horizontal surfaces, vertical for casework and walls, compact for self-supporting panels, Chemsurf for chemical-resistant surfaces, fire-rated grades for code-required interiors |
Coverage & How Much You Need:
Flat HPL sheets cover from 20 sq. ft. (30 x 96) to 60 sq. ft. (60 x 144) before trim; a 1/2 in. compact panel at 60 in. x 144 in. covers 60 sq. ft. of self-supporting surface. Size the job by deck area plus edges and splash.
Fit and Compatibility:
Flat grades bond to particleboard or MDF with contact adhesive and pair with a Wilsonart backer sheet; 1/2 in. compact panels need no substrate and can be routed with standard carbide tooling. Postforming grades require postforming equipment; compact panels cannot be postformed.
Frequently Asked Questions (FAQ):
Q: What is included in one order?
A: One laminate sheet or 1/2 in. compact panel in the grade and size you select, in 60 Matte Finish.
Q: When should I pick the compact panel?
A: Choose 568 Compact HPL for partitions, lockers, table tops or other self-supporting panels where no substrate is desired; it is 1/2 in. thick.
Q: Are there fire-rated options?
A: Yes, 604 Fire Rated Vertical HPL and 605 Fire Rated Postform HPL are listed for code-required interior applications.
Q: Can I use this in a lab setting?
A: The 390 Chemsurf grade is designed for chemical-resistant surfaces such as lab and workroom tops.
Q: How do I install the flat grades?
A: Bond with contact adhesive to a flat particleboard or MDF substrate, roll from the center outward, and trim with a router; keep a backer sheet on the underside.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
This design is the most versatile of the fiber family here, letting you run one bronze-gold look from cabinet ends (vertical grade) to rolled countertop edges (postforming) to washroom partitions (compact). Order the 48 in. deep sheets for standard 25 in. counter decks with edge allowance, and 60 in. for islands. The vertical high wear grade suits heavily used cabinet doors. Compact panels are heavy; plan handling and support tables before cutting.
Cut laminate and compact panels with sharp carbide tooling and wear eye protection, gloves and a dust mask; edges and offcuts are sharp.
Select your grade and size and order Wilsonart 4814 Tungsten EV matte laminate today.
