Wilsonart 17013K Webb Oak High-Pressure Laminate Sheet, Oak Woodgrain, 36 x 96 in. to 60 x 144 in., Aligned Oak Finish
Regular price $95.57Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart 17013K Webb Oak High-Pressure Laminate Sheet, Oak Woodgrain, 36 x 96 in. to 60 x 144 in., Aligned Oak Finish

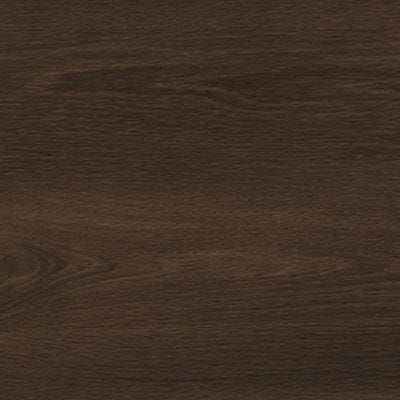

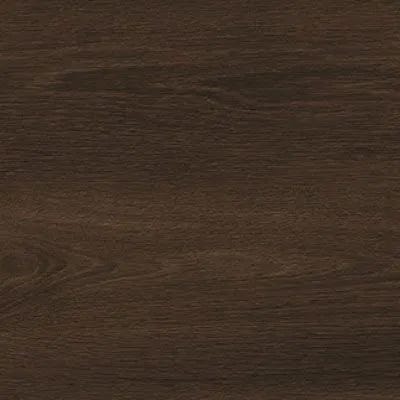

Wilsonart Webb Oak (design 17013K) is a standard high-pressure laminate sheet in the 57 Aligned Oak Finish. Choose 366 HD Vertical grade for cabinet sides and wall surfaces or 376 HD Postform grade for rolled-edge countertops, in 36 x 96 in., 48 x 96 in. or 60 x 144 in. sheets. One sheet per order; bond to particleboard, MDF or plywood.
Key Features:
- Oak woodgrain: Webb Oak brings a natural oak grain look to laminate surfaces.
- Aligned texture: The 57 Aligned Oak Finish embosses grain alignment into the sheet for a realistic feel.
- Vertical grade option: 366 HD Vertical HPL suits cabinet sides, wall panels and other vertical surfaces.
- Postform grade option: 376 HD Postform HPL is designed for horizontal countertops with rolled front edges.
- Three sheet sizes: Available in 36 x 96 in., 48 x 96 in. and 60 x 144 in. to fit a range of layouts.
- Special order: If not in stock locally, allow approximately a 2-week lead time for delivery.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 17013K |
| Sell unit | 1 sheet |
| Design number | 17013K |
| Design name | Webb Oak |
| Material | High-pressure laminate (HPL) |
| Available finishes | 57 Aligned Oak Finish |
| Available grades | 366 HD Vertical HPL (cabinet sides and vertical surfaces); 376 HD Postform HPL (horizontal countertops with rolled edges) |
| Available sheet sizes | 36 in. x 96 in.; 48 in. x 96 in.; 60 in. x 144 in. |
| Recommended use | Horizontal (postforming) or vertical surfaces, per grade |
| Assembly | Bond to particleboard, MDF or plywood with contact adhesive |
Coverage & How Much You Need:
A 36 x 96 in. sheet covers 24 sq. ft., a 48 x 96 in. sheet covers 32 sq. ft., and a 60 x 144 in. sheet covers 60 sq. ft. before waste. Lay out cuts to keep grain direction consistent across adjoining pieces.
Fit and Compatibility:
Bonds to particleboard, MDF or plywood substrates with contact adhesive; use a backer sheet on the reverse side of wide panels to reduce warping. Postforming grade is for rolled-edge countertop work; vertical grade is for flat vertical surfaces. Pair with other Wilsonart oak designs for coordinated cabinetry.
Frequently Asked Questions (FAQ):
Q: What comes in the box?
A: One laminate sheet in your selected grade and size; adhesive, substrate and backer sheets are sold separately.
Q: Which grade is right for a countertop?
A: Use 376 HD Postform HPL when the front edge will be rolled in a postforming operation, and 366 HD Vertical HPL for cabinet ends and wall surfaces.
Q: What sizes are available?
A: This design is offered in 36 x 96 in., 48 x 96 in. and 60 x 144 in. sheets in the listed grades.
Q: How do I install it?
A: Cut slightly oversize, apply contact adhesive to laminate and substrate, align carefully because contact cement bonds instantly, then press, roll and trim flush.
Q: What is the lead time?
A: It is a special-order item; allow approximately 2 weeks for delivery if not in stock locally, with a 24-hour cancellation window.
Q: Does the finish match the other Wilsonart oak designs?
A: All items on this page use the 57 Aligned Oak Finish, so the embossed grain texture is consistent across this oak program.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Webb Oak is a workhorse woodgrain for cabinet shops, and the 36 x 96 in. size is handy for wall oven surrounds and shallow tops. Order postforming grade only when you will actually roll the edge, since it is tuned for the postform radius; otherwise standard vertical grade is fine and easier to source. Rough-trim before gluing, keep the room above 65 degrees F for reliable contact adhesive cure, and back islands with a balancing sheet.
Wear eye protection and a dust mask when cutting laminate, use proper ventilation with contact cement, and handle cut edges with care as they can be sharp.
Order Wilsonart Webb Oak laminate now for a dependable oak woodgrain on your countertops and cabinets.
