Wilsonart 17004K Carter Oak High-Pressure Laminate Sheet, 48 in. x 96 in. and 60 in. x 144 in., Weathered Grey Oak Design
Regular price $238.92Orders start at $399 — combine any items to reach the minimum. Learn more
Wilsonart 17004K Carter Oak High-Pressure Laminate Sheet, 48 in. x 96 in. and 60 in. x 144 in., Weathered Grey Oak Design

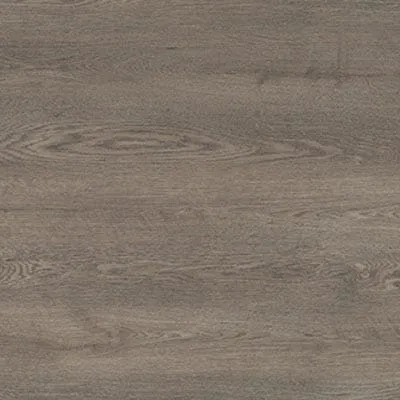

Wilsonart 17004K Carter Oak is a high-pressure laminate sheet in a weathered oak design of warm grey shades, enhanced by an embossed and aligned texture. Choose 48 in. x 96 in. or 60 in. x 144 in. sheets in vertical or postforming grades. Each order unit is one sheet; pair with particleboard or MDF substrate and contact adhesive.
Key Features:
- Weathered grey oak: Handsome weathered oak design in shades of warm grey.
- Embossed texture: Embossed and aligned texture enhances the weathered grain.
- Two sheet sizes: Available in 48 in. x 96 in. and 60 in. x 144 in. sheets.
- Grade options: Choose 366 HD Vertical HPL for vertical surfaces or 376 HD Postform HPL for rolled countertop edges.
- Large design repeat: Approximate design repeat of 49 in. wide by 39.2 in. long.
- Special order: Non-standard option with approximately a 2-week lead time if not stocked locally.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Wilsonart |
| Manufacturer model | 17004K |
| Sell unit | 1 sheet |
| Material | High-pressure laminate (HPL) |
| Color / finish | Weathered oak in warm grey shades |
| Design number | 17004K |
| Design name | Carter Oak |
| Available finishes | 57 Aligned Oak Finish |
| Available grades | 366 HD Vertical HPL (vertical surfaces such as cabinet sides and walls); 376 HD Postform HPL (countertops with rolled edges) |
| Available sheet sizes | 48 in. x 96 in.; 60 in. x 144 in. |
| Surface / pattern | Embossed and aligned woodgrain texture, approximate design repeat 49 in. W x 39.2 in. L |
| Recommended use | Horizontal or vertical surfacing depending on grade selected |
| Coverage per unit | 32 sq. ft. (48 in. x 96 in.) or 60 sq. ft. (60 in. x 144 in.) per sheet |
Coverage & How Much You Need:
One 48 in. x 96 in. sheet covers 32 sq. ft.; one 60 in. x 144 in. sheet covers 60 sq. ft. Plan seams around the approximate 49 in. x 39.2 in. design repeat for consistent grain.
Fit and Compatibility:
Bonds to standard particleboard or MDF with contact adhesive; the postforming grade suits compatible rolled-edge countertops and the vertical grade suits cabinet sides and walls. Backer laminate is sold separately.
Frequently Asked Questions (FAQ):
Q: What is included?
A: One Carter Oak laminate sheet in your selected grade and size; substrate, contact adhesive and backer sheets are sold separately.
Q: How much does a sheet cover?
A: 32 sq. ft. for the 48 in. x 96 in. sheet and 60 sq. ft. for the 60 in. x 144 in. sheet, before trimming.
Q: Can it be used on cabinet doors?
A: Yes, order the 366 HD Vertical HPL grade for cabinet sides, doors and other vertical surfaces.
Q: Is this in stock?
A: It is a special-order design; allow approximately a 2-week lead time when not stocked locally, with a 24-hour window to cancel.
Q: What substrate should I use?
A: A dimensionally stable particleboard or MDF core is standard for high-pressure laminate work.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Carter Oak's warm grey weathered look pairs well with modern cabinetry and hides everyday wear better than very light colors. For countertops choose the postforming grade and verify your postformer's minimum inside radius before bending. Order a backer sheet for every horizontal panel so the assembly stays flat. Cut sheets slightly oversize and trim flush after the adhesive cures to avoid chipping the aligned texture.
Laminate sheets are heavy and awkward; use two people for the 60 in. x 144 in. size and wear gloves for sharp edges.
Order Wilsonart Carter Oak laminate and choose your grade and sheet size today.
