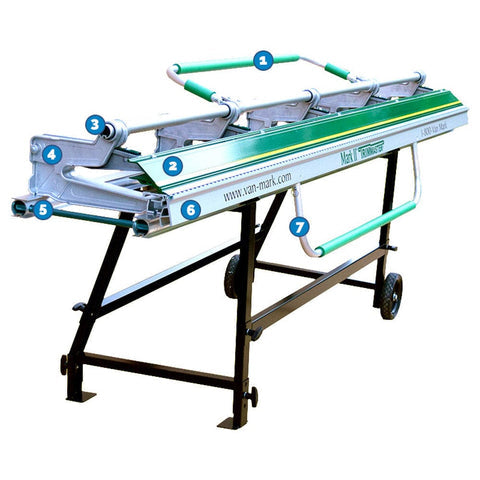

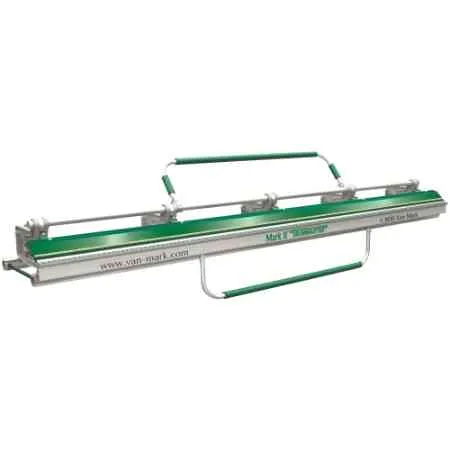

VAN MARK PRODUCTS Van Mark Mark II TrimMaster 10 ft. 6 in. Portable Siding Brake with 14 in. Throat Depth – TM10-S
Regular price $2,445.99The Van Mark TM10-S Mark II TrimMaster is a 10 ft. 6 in. professional-grade portable siding brake for bending aluminum trim coil and light gauge steel. It delivers crisp bends up to 180 degrees for fascia, J-channels, drip edge and custom flashing. One brake per sell unit.
Key Features
- 10'6" bending length: The 10 ft. 6 in. working length bends long runs of fascia, trim coil and flashing in a single piece.
- 14 in. throat depth: A 14 in. throat depth handles deeper bends and more complex trim profiles.

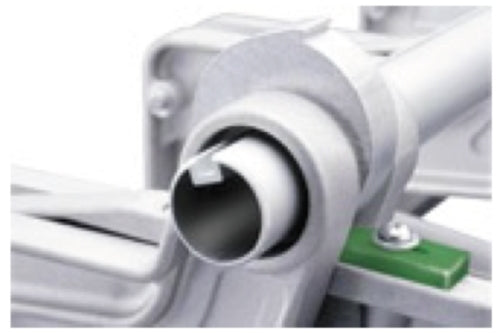

- POWERslot hinge: The POWERslot hinge auto-measures to a 5/8 in. bend for tight J-channel pockets on vinyl siding and fiber cement.
- Power Lock bar: The Power Lock bar provides strong, even clamping pressure along the entire bending edge for clean, crisp bends.
- Complex 180 bends: Capable of complex bends up to 180 degrees for hems, drip edges, J-channels and custom profiles.

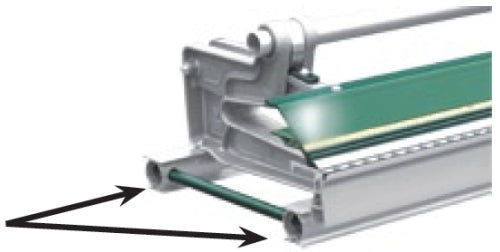

- Adjustable wedges: Ultra-high molecular weight wedges are independently adjustable and replaceable for long-term accuracy.
- Portable build: Hollow-core extrusions add strength while keeping the brake lightweight and jobsite-portable.
Specifications
- Manufacturer model
- TM10-S
- Sell unit
- 1 brake, 10 ft. 6 in.
- Material
- Aluminum and light gauge steel bending capability
- Nominal size
- 10 ft. 6 in. working length
- Length
- 10 ft. 6 in. (3.20 m)
- Throat depth
- 14 in.
- Maximum bend
- Up to 180 degrees
- POWERslot hinge bend
- Auto-measures to 5/8 in.
- Recommended materials
- Up to .032 in. aluminum and 26 ga. light steel (typical recommendation)
- Wedges
- UHMW, independently adjustable and replaceable
- Weight
- Approx. 135-145 lb
- Assembly
- Cam-locking system, minimal adjustments
- Intended use
- Siding, roofing, window and door trim, custom flashing and repair metal
Fit and Compatibility
Designed for bending aluminum trim coil and light gauge steel used in siding, roofing and trim work. Pairs with trim coil, flashing stock and Van Mark brake accessories; stands and transport accessories may be sold separately.
Frequently Asked Questions
What is included?
One Van Mark TM10-S Mark II TrimMaster brake; stands or transport accessories are not listed as included.
What length metal can it bend?
The 10 ft. 6 in. working length bends long runs of fascia, trim coil and flashing in a single piece.
What materials can it handle?
It is designed for aluminum trim coil and light gauge metals, typically up to .032 in. aluminum and 26 ga. light steel.
Can it form J-channels?
Yes. The POWERslot hinge auto-measures to a 5/8 in. bend, ideal for tight J-channel pockets on vinyl siding and fiber cement.
How heavy is it to move around a jobsite?
It weighs approximately 135-145 lb, and hollow-core extrusions keep it relatively lightweight and portable for its size.
Can it make custom profiles?
Yes, it performs complex bends up to 180 degrees for hems, drip edges, J-channels and custom flashing profiles.
Product Expert Notes
The TrimMaster line is a workhorse choice for remodelers and siding installers who need one-piece bends on long trim runs. Pick the 10'6" model when standard fascia and window wrap lengths dominate your work; longer 12'6" versions suit extended eaves and commercial fascia. Use replaceable UHMW wedges to keep bend lines crisp, and bend scrap first to dial in hem allowances.
Keep fingers clear of the clamping and bending edges during operation, and use two people or proper lifting technique when moving this 135-145 lb brake.
Get the Van Mark Mark II TrimMaster 10'6" brake and bend trim coil like a pro on every jobsite.
