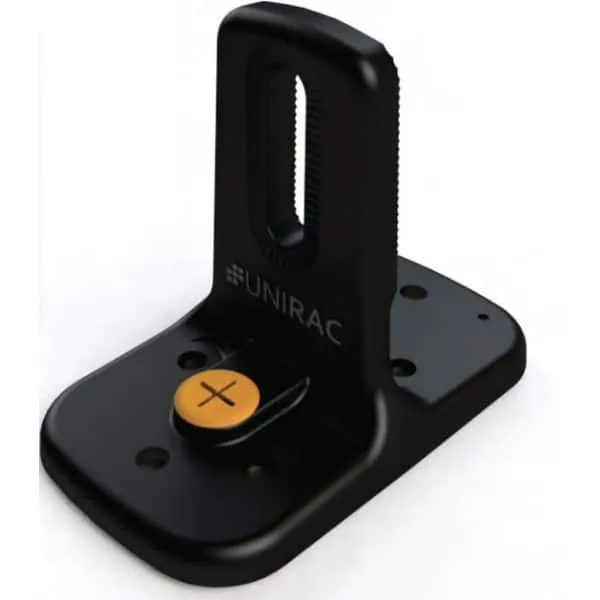

UNIRAC FlashLoc Duo Dark Solar Roof Mount Attachment for Composition Shingle Roofs – 004275D

The Unirac FlashLoc Duo Dark is an all-in-one pitched roof attachment for composition shingle and rolled composition solar installs. It mounts to either the roof deck (OSB or plywood) or rafters, with a dark finish that blends with darker shingles. Order in multiples of 20 to cover one attachment point per unit.

Key Features

• Dual mount design: Secures to either the roof deck or directly to rafters, so installers do not need to locate rafters in every scenario.
• Triple Seal technology: Patented TRIPLE SEAL combines an outer shield contour-conforming gasket, pressurized sealant, and additional sealing elements for a watertight barrier.
• Watertight performance: Delivers fast, watertight roof attachment without traditional flashing.
• Dark finish: Sleek dark anodized aesthetic integrates with darker shingles and modern residential and commercial designs.
• All-in-one kit: Each unit arrives as a complete attachment kit for comp shingle solar PV systems.
• Installer friendly: Designed as the most flexible mounting option for composition shingle solar PV systems.

Specifications

Manufacturer model

004275D

UPC

810039363362

Sell unit

Pack of 20 attachment kits (order in multiples of 20)

Material

Anodized aluminum mounting assembly with sealing elements

Color / finish

Dark (anodized black/dark bronze)

Intended use

Pitched roof attachment for composition shingle and rolled composition solar PV systems

Mounting

Deck (OSB or plywood) or rafter attachment

Sealing

Patented TRIPLE SEAL technology (gasket, pressurized sealant, additional sealing elements)

Pack quantity

Order in multiples of 20; 20 per package carton

Weight per unit

0.5 lb

Fit and Compatibility

Part of the Unirac FlashLoc family and intended for Unirac solar racking systems on composition shingle or rolled composition roofs. Flashing and other roof mount styles from the same family are sold separately.

Frequently Asked Questions

What is included with each unit?

Each FlashLoc Duo Dark is a complete all-in-one kit with the mounting hardware and TRIPLE SEAL sealing components needed for one attachment point.

Do I have to find the rafters to install it?

No. The dual-mount design secures to either the roof deck (OSB or plywood) or directly to rafters, giving you flexibility when rafters are not accessible.

How does it seal against leaks?

It uses patented TRIPLE SEAL technology: an outer shield contour-conforming gasket, pressurized sealant, and additional sealing elements form a permanent watertight barrier.

What roof types is it for?

It is optimized for composition shingle and rolled composition roofs; the dark finish blends with darker shingles.

Can I buy just one?

The manufacturer packages these in multiples of 20, with 20 units per package, so plan your order in batches of 20.

Will it match dark shingles?

Yes, the dark anodized black/dark bronze finish is designed to integrate with darker shingle and modern roof designs.

Product Expert Notes

FlashLoc Duo is the pick when rafter layout does not line up with your module plan, because the deck-mount option frees you from locating rafters at every footing. Space attachments per your racking manufacturer's span tables and use one unit per attachment point. The dark finish is worth choosing on darker comp shingle roofs where standard aluminum flashing-style mounts would show. Keep some pressurized sealant on hand to ensure the TRIPLE SEAL cavity fills fully during install.

Work only on dry roofs with proper fall protection, and follow local building and solar code requirements for roof penetrations and structural attachment.
