TRIM-TEX Rigid Splayed Adjustable Vinyl Corner Bead, 10 ft. x 1-3/8 in. – RS10
Regular price $102.65Orders start at $399 — combine any items to reach the minimum. Learn more

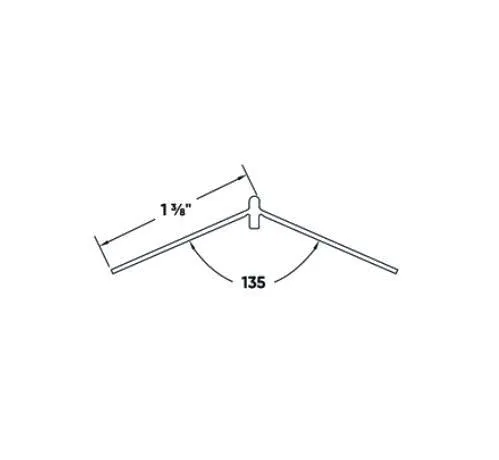

This is a Trim-Tex Rigid Splayed Adjustable vinyl corner bead for finishing outside drywall corners, measuring 10 ft. long with a 1-3/8 in. splayed flange. Its hinged, sharp-nosed design adjusts to outside corners from 115 to 155 degrees. One unit is a single 10 ft. bead; master cartons contain 40 pieces.
Key Features
- Adjustable hinge: The hinged design allows the bead to adjust to finish outside corners from 115 to 155 degrees.
- Sharp rigid nose: A clean, sharp rigid nose creates a crisp corner line.
- Less mud needed: Requires less mud and no setback to finish compared with the standard splayed vinyl corner bead.
- Durable vinyl: Made of durable, resilient vinyl that resists dents and cracking during handling.
- Easy installation: Designed for easy installation on standard drywall outside corners.
- Bulk carton option: Available 40 pieces per master carton for larger jobs.
Specifications
- Manufacturer model
- RS10
- Sell unit
- 1 corner bead, 10 ft. x 1-3/8 in.
- Material
- Vinyl
- Nominal size
- 10 ft. x 1-3/8 in.
- Length
- 10 ft.
- Flange width
- 1-3/8 in.
- Adjustable angle range
- 115 to 155 degrees
- Pack quantity
- 40 pieces per carton
- Type
- Rigid splayed adjustable corner bead
- Intended use
- Outside drywall corner finishing
Coverage and How Much You Need
One bead covers 10 linear ft. of outside corner. Measure total outside corner length and divide by 10 ft., allowing for cut waste at openings.
Fit and Compatibility
Works with standard drywall corner finishing methods and Trim-Tex vinyl bead tools and accessories, sold separately. Suits any outside corner in the 115 to 155 degree range.
Frequently Asked Questions
What is included with the purchase?
Each sell unit is one 10 ft. x 1-3/8 in. bead; the manufacturer packs 40 beads per carton.
What corner angles does it handle?
The hinged splayed design adjusts to outside corners from 115 to 155 degrees.
How is it installed?
Attach it to the outside corner with staples, nails or bead adhesive, then finish with joint compound; it needs less mud and no setback than standard splayed bead.
Why choose the rigid splayed version?
It has a sharp rigid nose for a clean line and requires less mud and no setback to finish.
Is it metal or vinyl?
It is a vinyl corner bead, which is durable and resilient.
Product Expert Notes
Choose this bead when outside corners fall outside 90 degrees, such as splayed walls or bay-window returns, since the hinge adjusts from 115 to 155 degrees. The rigid nose holds a sharp line with less joint compound than standard splayed bead. For bulk projects, plan around the 40-piece carton. Use a vinyl-compatible clinching tool or adhesive for the fastest, cleanest attachment.
Wear eye protection and a dust mask when cutting and sanding drywall trim, and handle cut bead edges carefully as they can be sharp.
Order the Trim-Tex Rigid Splayed Adjustable Corner Bead today for clean, adjustable outside corners.
