THE STEEL NETWORK INC The Steel Network StiffClip CL600 10-Gauge Floor Tie Clip Connector for Cold-Formed Steel Framing (Box of 50) – CL600-118

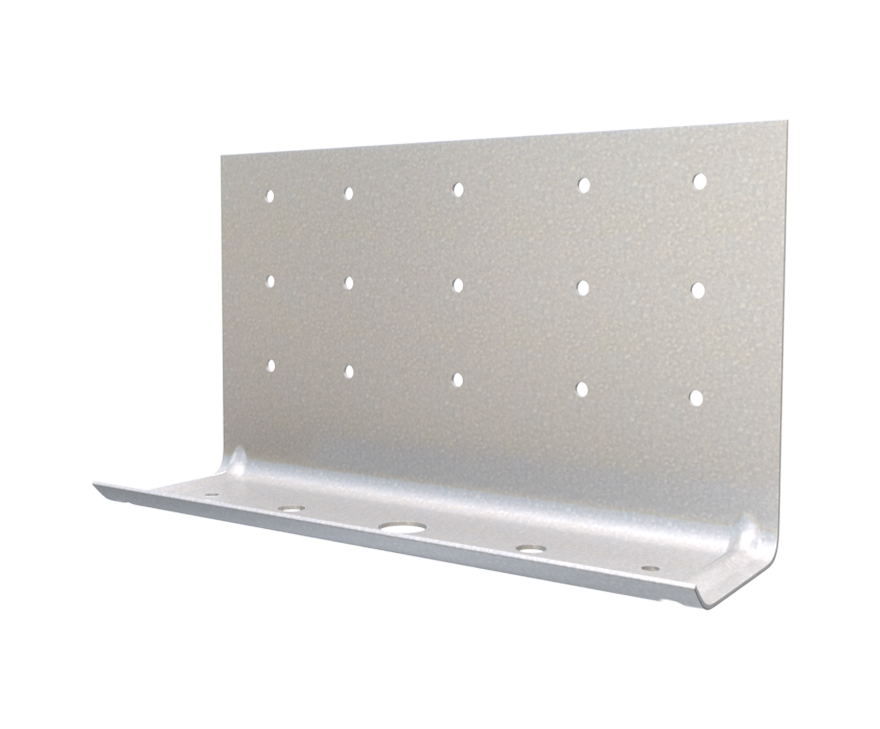

Regular price $400.00The Steel Network StiffClip CL600-118 is a floor tie clip connector that attaches steel studs to the building structure in cold-formed steel framing. Measuring 5-1/2 x 3 x 1-1/2 in. in 118 mil (10 ga) certified 50 ksi steel, its stiffened 90-degree angle legs resist vertical, horizontal and torsional loads. Pre-drilled guide holes speed connections to studs and decks; sold as a box of 50.
Key Features
- Stud-to-structure: Engineered to connect steel studs to the building structure in cold-formed steel framing.
- Stiffened legs: Unique stiffened 90-degree angle legs provide increased bending strength.
- Multi-directional loads: Resists vertical, horizontal, and torsional loads.
- Pre-drilled holes: Pre-drilled guide holes allow fast, secure connections to studs and decks.
- Certified 50 ksi steel: Manufactured from certified 50 ksi steel for reliable structural performance.
- Replaces steel angles: Reduces the need for heavy steel angles, offering a more efficient tested solution.
- Box of 50: Sold 50 clips per box.
Specifications
- Manufacturer model
- CL600-118
- Sell unit
- Box of 50 clips
- Material
- Certified 50 ksi cold-formed steel
- Color / finish
- Galvanized steel (cold-formed framing clip)
- Nominal size
- 5-1/2 x 3 x 1-1/2 in.
- Thickness
- 118 mils (10 ga)
- Pack quantity
- Box of 50 clips
- Assembly
- Pre-drilled guide holes for screw attachment to studs and decks
- Intended use
- Floor tie clip connector for cold-formed steel framing; connects steel studs to the building structure
- Tested
- Tested to ensure structural integrity
Fit and Compatibility
StiffClip CL is used with The Steel Network cold-formed steel framing members and replaces heavy steel angles in stud-to-structure connections. Screw attachment to studs and decks uses the clip's pre-drilled guide holes; fasteners and framing members are sold separately.
Frequently Asked Questions
How many clips are in a box?
The CL600-118 StiffClip CL is sold as 50 clips per box.
What are the clip dimensions?
The clip measures 5-1/2 x 3 x 1-1/2 in. in 118 mil (10 ga) steel.
What loads does it resist?
Its stiffened 90-degree angle legs are designed to resist vertical, horizontal, and torsional loads.
Does it have pre-drilled holes?
Yes, pre-drilled guide holes allow fast and secure connections to studs and decks.
What is it made of?
It is manufactured from certified 50 ksi steel and is tested to ensure structural integrity.
Can it replace steel angles?
Yes, the manufacturer states the StiffClip CL reduces the need for heavy steel angles.
Product Expert Notes
Use the StiffClip CL when a tested, engineered alternative to field-fabricated steel angles is needed for stud-to-structure floor ties; verify the required mil thickness and clip size with the project engineer, as the CL series is offered in multiple sizes and gauges. The pre-drilled guide holes speed screw installation and help keep fastener placement consistent. Refer to the manufacturer's StiffClip CL submittal for allowable loads and screw patterns.
Confirm clip selection and fastener patterns with the structural designer and applicable building codes, and wear gloves and eye protection when handling steel clips and driving screws.
Order the Steel Network StiffClip CL600-118 floor tie clip connector in a box of 50 today.
