TAJIMA TOOL Chalk-Rite II Ultra-Thin Chalk Line Reel, 100 ft. Braided Line, 0.5 mm Lines, Blue, Gasket-Sealed Aluminum Case – CR202B-P
Regular price $46.50Orders start at $399 — combine any items to reach the minimum. Learn more

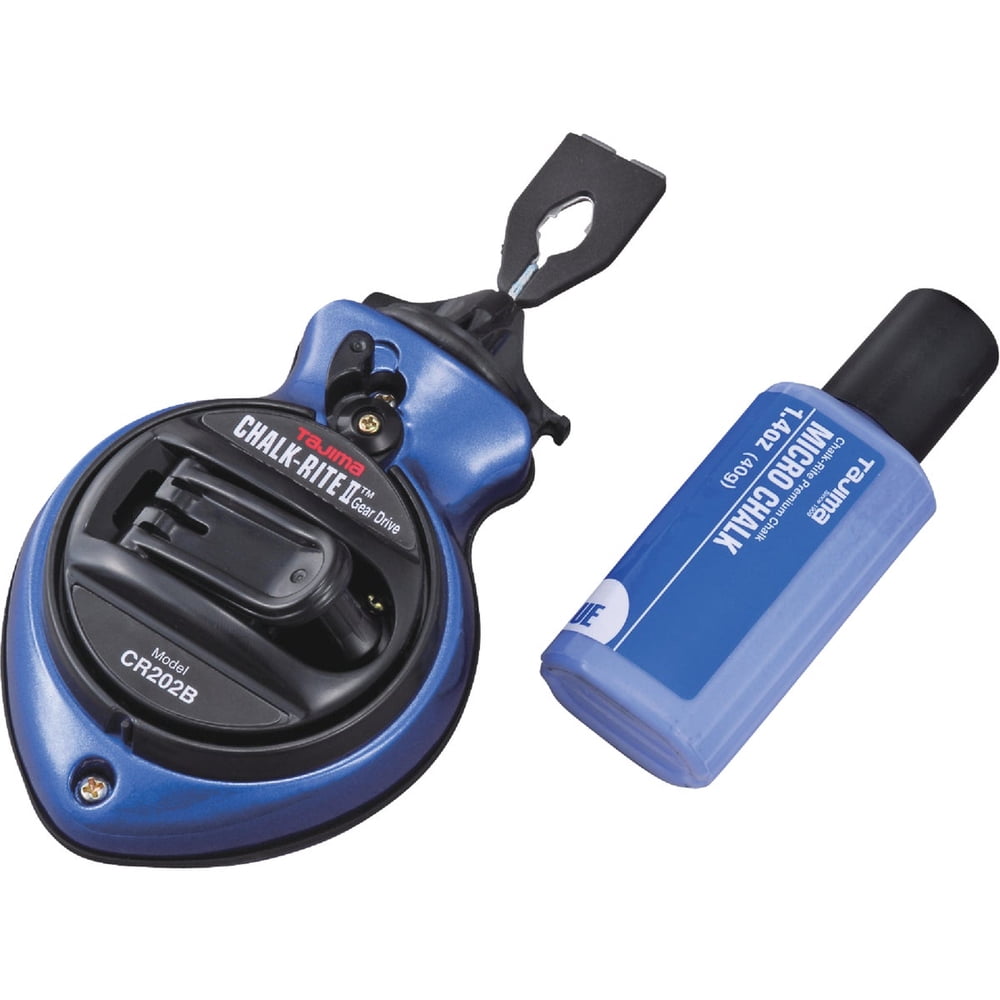

This is the Tajima Tool Chalk-Rite II Ultra-Thin snap-line chalk reel, built for fast, precise construction layout. The braided line lays down an ultra-thin 0.02 in. (0.5 mm) line up to 100 ft. (30 m) long. Each order unit is a 6-pack that includes blue micro chalk, ready to pair with your layout and framing tools.
Key Features

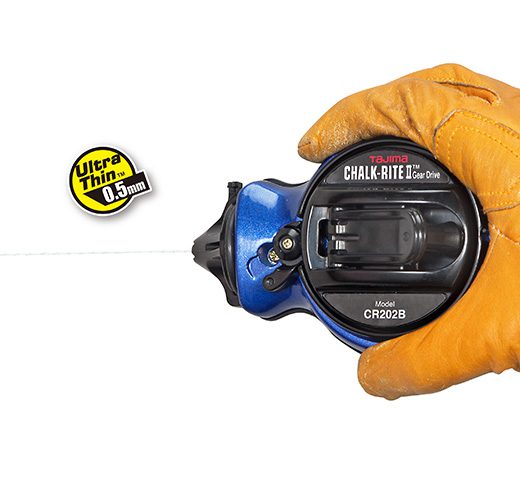

- Ultra-thin lines: The specially crafted braided line creates ultra-thin 0.02 in. (0.5 mm) chalk lines for crisp, accurate marks.

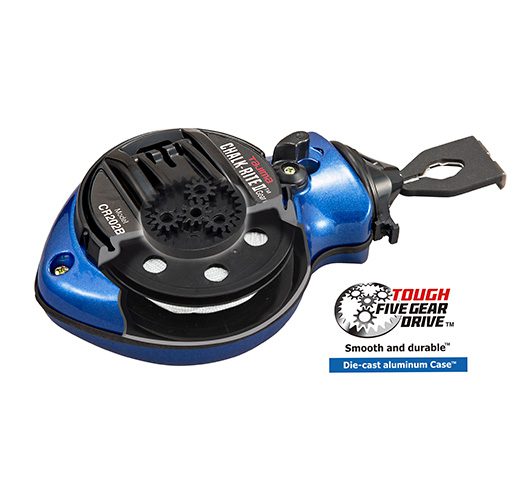

- Five-gear rewind: A smooth-running, durable five-gear drive winds the line up to three times faster than standard snap lines.
- Sealed aluminum case: The heavy-duty die-cast aluminum case is sealed with an elastomer gasket to protect the line and chalk.

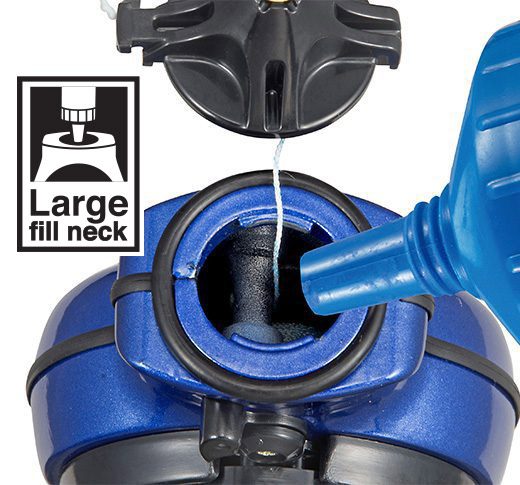

- Large fill port: The large gasket-sealed refill port simplifies refilling chalk and allows convenient felt replacement.
- Line pull-through: A snap line pull-through tool feature keeps the line running smoothly through the reel.
- Contractor grade: Built for construction layout, this lightweight reel is rated for standard chalk line use up to 100 ft.
- Six-pack value: Each sell unit contains 6 chalk line reels with blue micro chalk, supplied in master cartons of 24 (6 sets).
Specifications
- Manufacturer model
- CR202B-P
- Sell unit
- Pack of 6 chalk line reels with blue micro chalk
- Material
- Die-cast aluminum case, braided nylon/polyester line
- Color / finish
- Blue
- Nominal size
- 0.02 in. (0.5 mm) line x 100 ft. (30 m)
- Length
- 100 ft. (30 m) line
- Line thickness
- 0.02 in. (0.5 mm)
- Chalk color
- Blue
- Winding control
- Five-gear drive
- Case
- Gasket-sealed heavy-duty die-cast aluminum, type 4
- Pack quantity
- 6 chalk line reels
- Master carton
- 24 (6 sets)
- Intended use
- Construction layout and marking, standard chalk line applications
- Manufacturer warranty summary
- Not stated in sources
Coverage and How Much You Need
One reel holds 100 ft. (30 m) of braided line, enough to snap layout lines across a full 30 m span in a single pass. Longer layout runs can be handled by repositioning and re-snapping from a fixed reference line.
Fit and Compatibility
The Chalk-Rite II works with standard chalk line chalks, including the included blue micro chalk, and accepts felt replacement through its large fill neck. It is a standalone layout tool and pairs with Tajima measuring and marking tools; no dedicated line height or system constraints apply.
Frequently Asked Questions
What is included in this order?
This order unit is a pack of 6 Tajima Chalk-Rite II Ultra-Thin chalk line reels with blue micro chalk.
How long is the line and how thin are the marks?
The reel holds 100 ft. (30 m) of braided line that produces ultra-thin 0.02 in. (0.5 mm) chalk lines.
How fast does it rewind?
The five-gear drive winds the line smoothly and up to three times faster than standard snap lines.
Is the case durable around job site dust?
Yes, the die-cast aluminum case is sealed with an elastomer gasket for enhanced durability and protection.
Can I replace the felt or refill chalk?
Yes, the large gasket-sealed refill port allows easy chalk refills and convenient felt replacement.
What is it designed for?
It is a contractor-grade, lightweight chalk line rated for construction layout and standard chalk line applications.
Product Expert Notes
For crisp layout on framing, tile, or concrete work, the 0.5 mm ultra-thin line is a meaningful upgrade over standard snap lines because narrower marks mean less ambiguity when snapping to a datum. The five-gear drive saves real time on long pull-outs, and the gasket-sealed aluminum case keeps chalk dry in dusty conditions. Choose the Ultra-Thin version when precision matters; use heavier standard lines for rough grading or very dusty surfaces where fine marks are hard to read.
Wear eye protection when snapping chalk lines and keep fingers clear of the line path; the line can snap back quickly under tension.
Add the Tajima Tool Chalk-Rite II Ultra-Thin 6-pack to your kit for faster, sharper layout lines on every job.
