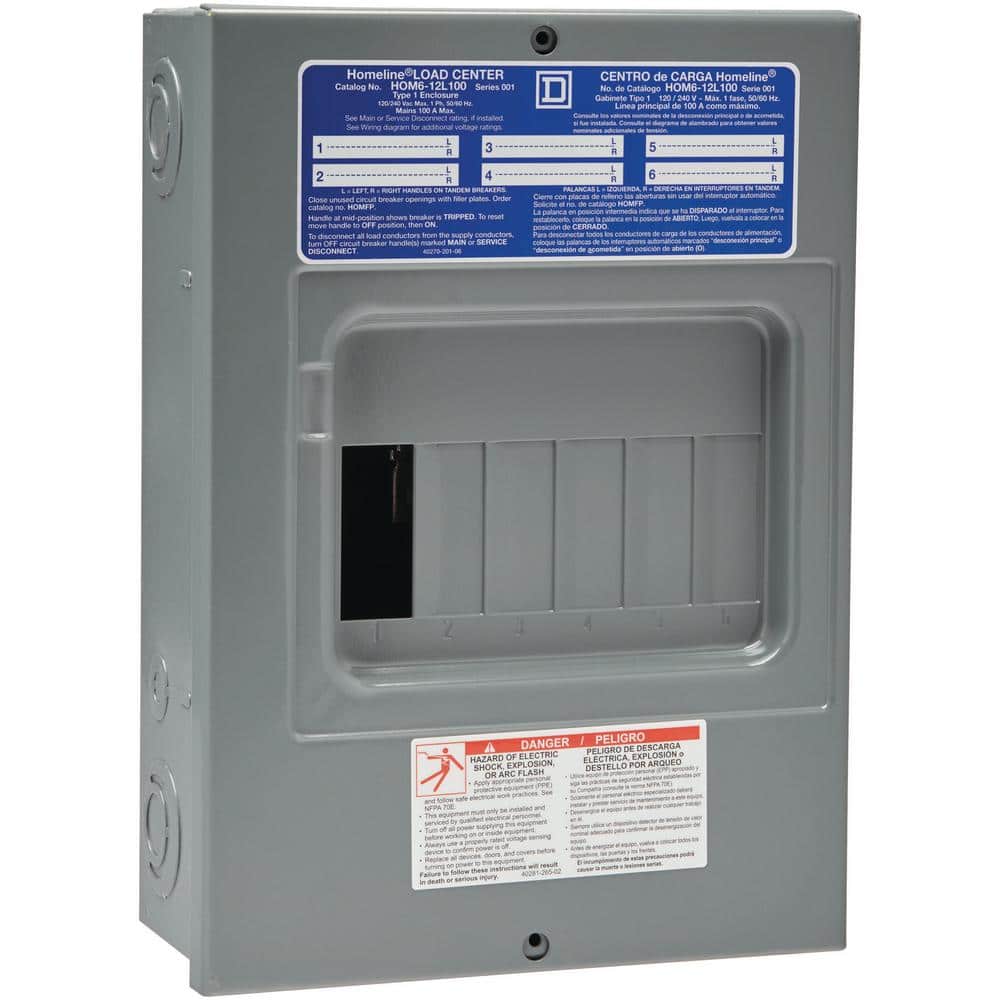

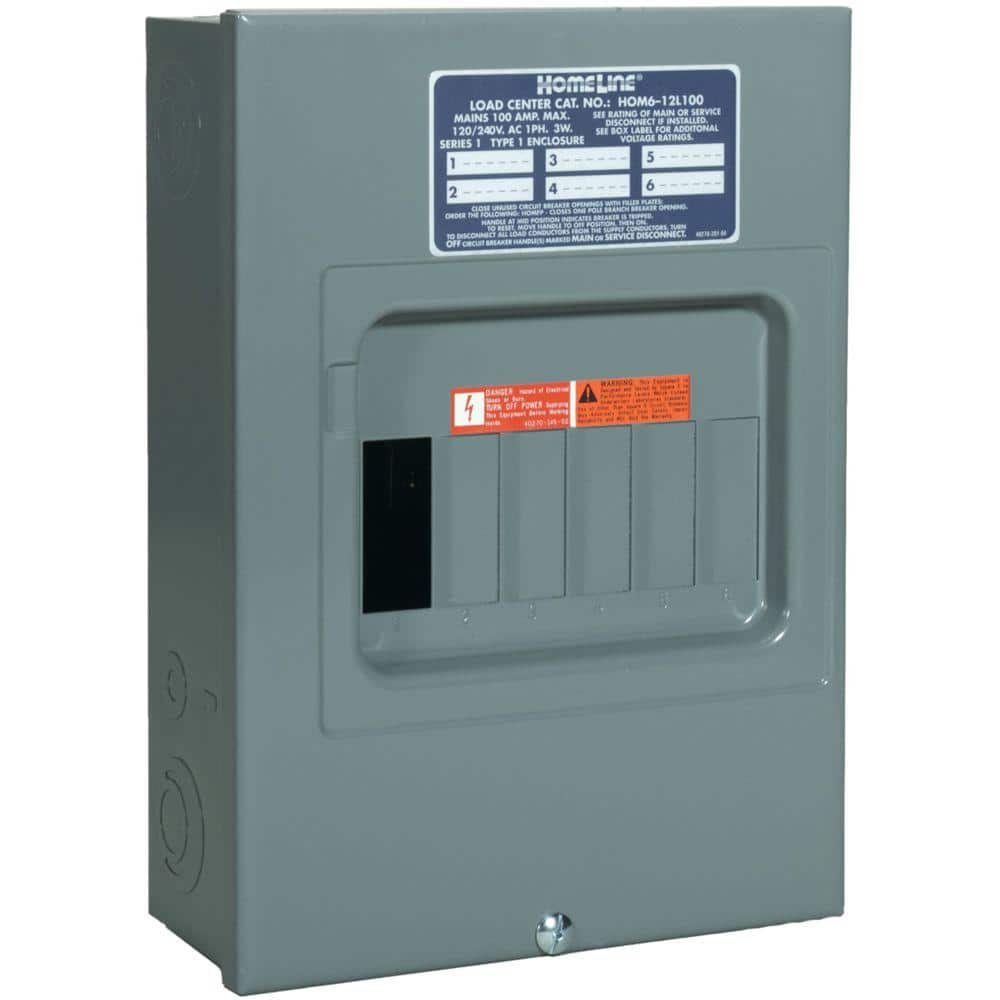

Square D Homeline 100 Amp 6-Space 12-Circuit Indoor Surface Mount Main Lug Load Center with Cover
Regular price $29.40Homeline 100 Amp Main Lug Load Center
The Square D Homeline 100 Amp 6-Space 12-Circuit Load Center is perfect for residential and commercial power distribution. Compatible with Square D Homeline circuit breakers, it promises easy installation and enhanced durability with its rugged thermoplastic design. Ideal for professionals and DIY home improvers seeking reliable power management solutions.
Key Features:
- Aluminum Bus Bar: Tested for quality and durability, ensuring long-term performance.
- Surface Mount Cover: Includes a cover for easy installation without a door for accessible wiring.
- Dual Screw Options: Features slot/square drive screws for versatile installation tools.
- Indoor Use: Designed for indoor applications with reliable NEMA 1 configuration.
- High Short Circuit Rating: Rated at 10,000 AIR for safety in a range of setups.
Specifications Table:
| Specification | Details |
|---|---|
| Breaker Box Type | Subpanel |
| Connection Type | Non-Neutral |
| Electrical Product Type | Main Lug/ Main Lug Kit |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 100 A |
| Mounting Type | Surface |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 12 |
| Number of Spaces | 6 |
| Phase Type | 1 Phase |
| Product Weight (lb.) | 8.05 lb |
| Series Type | Homeline |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |

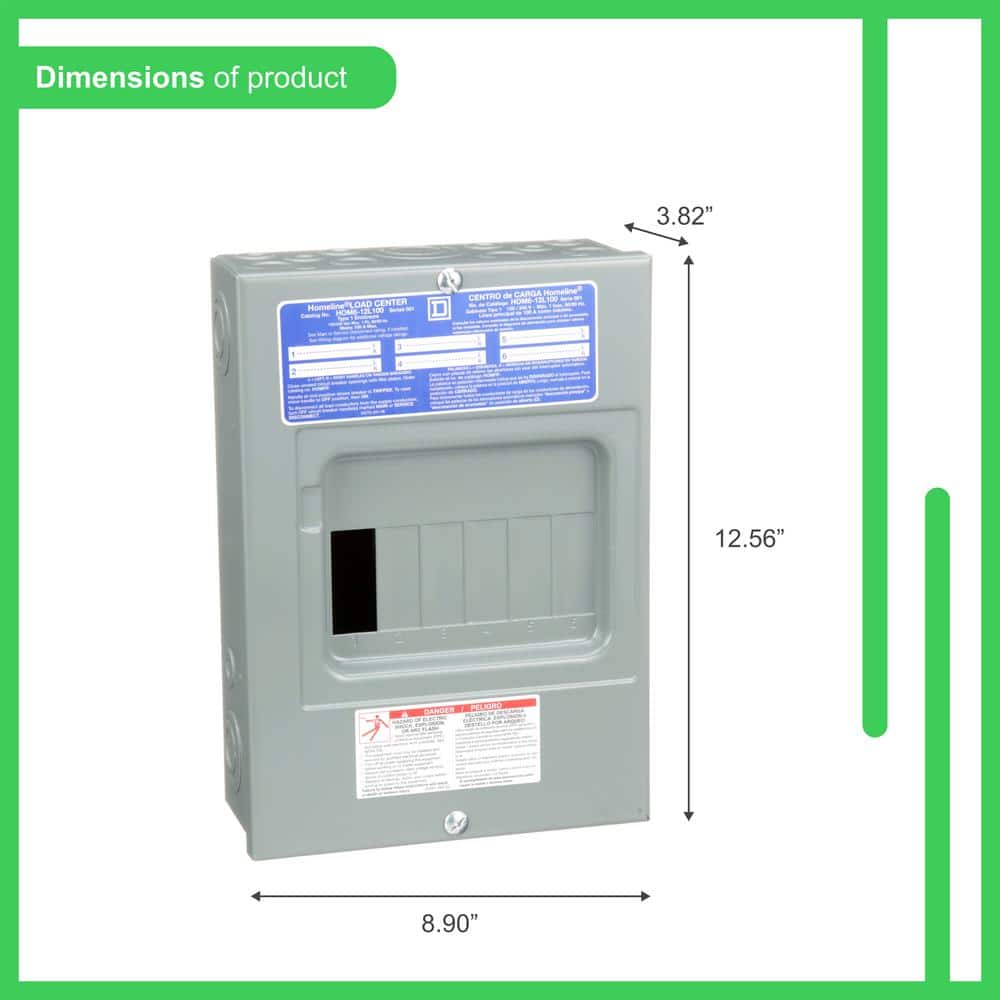

| Product Depth (in.) | 3.8 in |
| Product Height (in.) | 12.57 in |
| Product Width (in.) | 8.88 in |
Frequently Asked Questions (FAQ):
Q: Can this load center be used outdoors?
A: No, this load center is designed specifically for indoor use, complying with NEMA 1 standards.
Q: Is the circuit breaker included with the load center?
A: No, circuit breakers are sold separately. This model is compatible with Square D Homeline circuit breakers.
Q: What tools are needed for installation?
A: You can use either a standard flat blade screwdriver or a square-head driver for installation, thanks to the versatile slot/square drive screws.
Q: What is the short circuit current rating?
A: This load center has a short circuit current rating of 10,000 AIR, providing robust safety standards.
Q: What is the warranty on this load center?
A: Square D offers a 10-year warranty for residential applications when used with the appropriate Homeline branch circuit breakers.
Power Meets Precision in Your Electrical Setup
Experience the ultimate in electrical management with the Square D Homeline Load Center. This essential piece effortlessly blends functionality with precision, making it a cornerstone of sophisticated power distribution solutions. Perfect for a seamless installation, its sleek, surface-mounted design allows for elegant concealment in modern environments. Unlock a new level of organization and safety that is essential to every well-designed home—ensuring you live free from clutter and electrical headaches.
Upgrade your power management today with the trusted reliability of the Square D Homeline Load Center.
