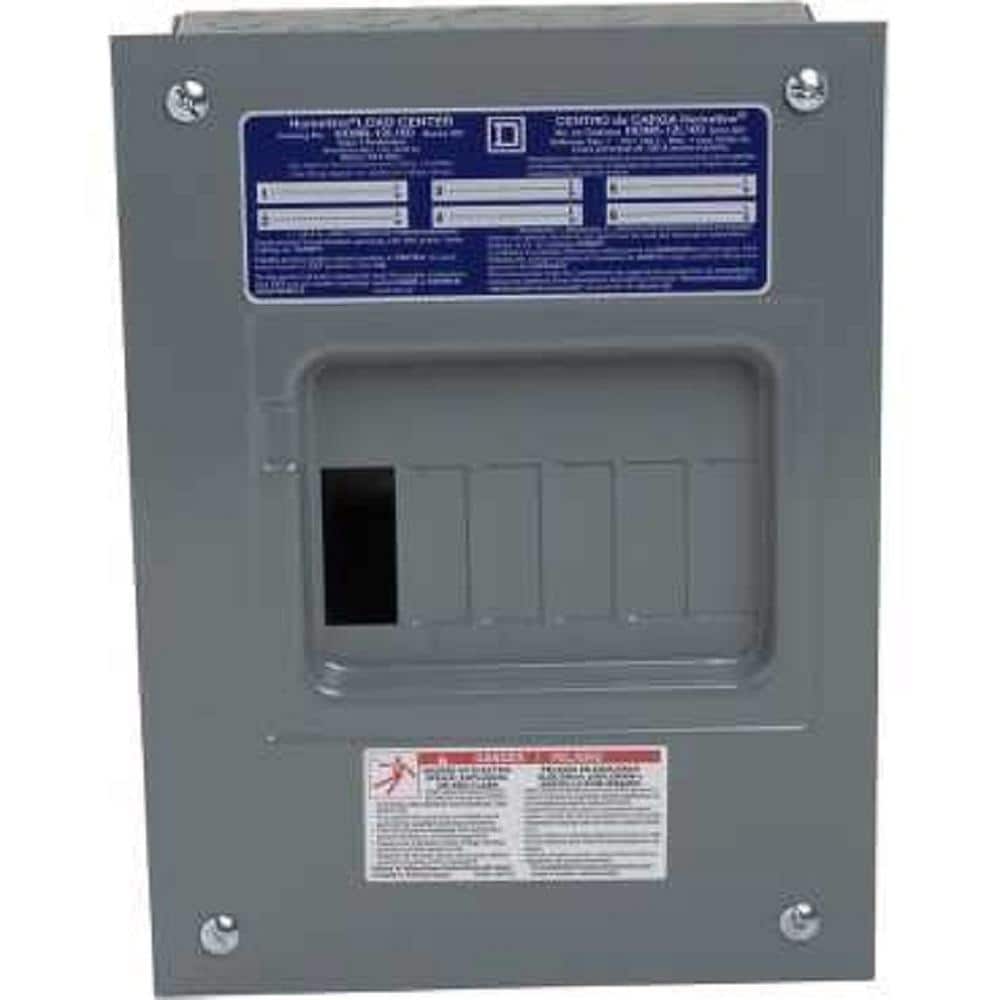

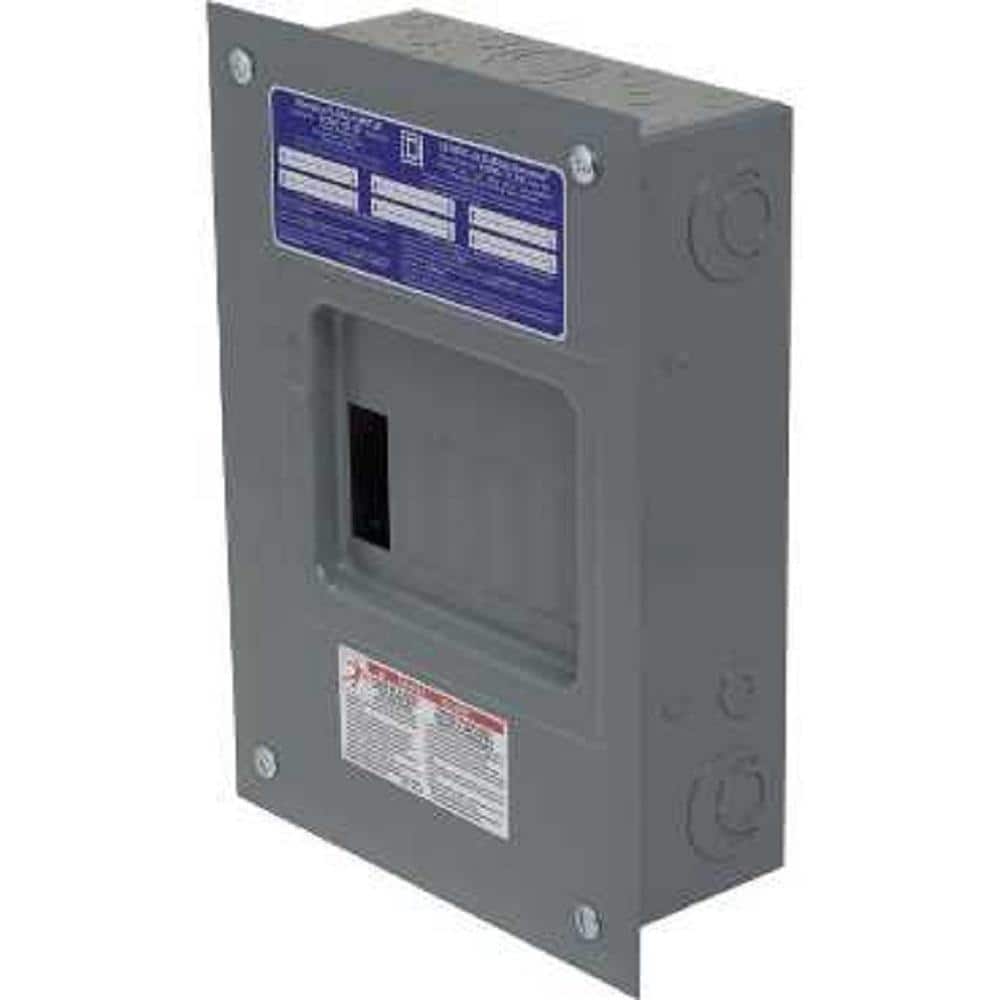

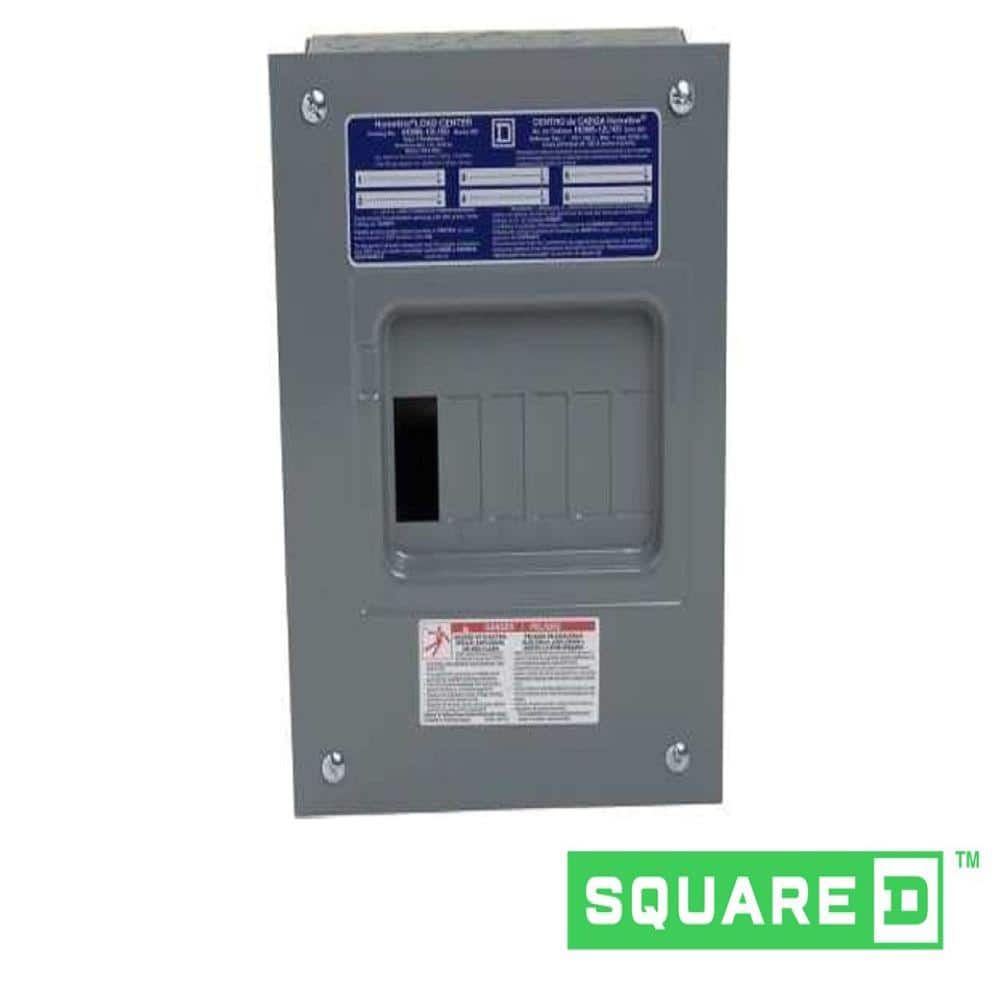

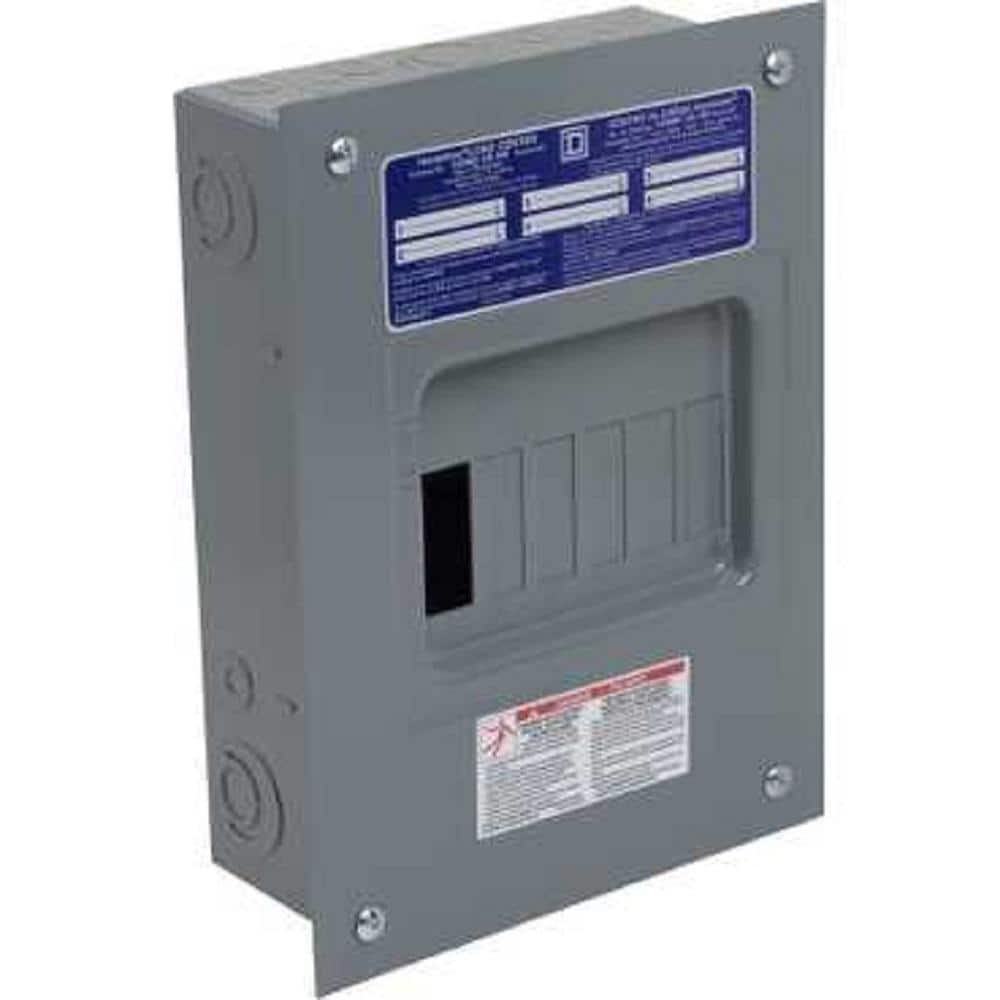

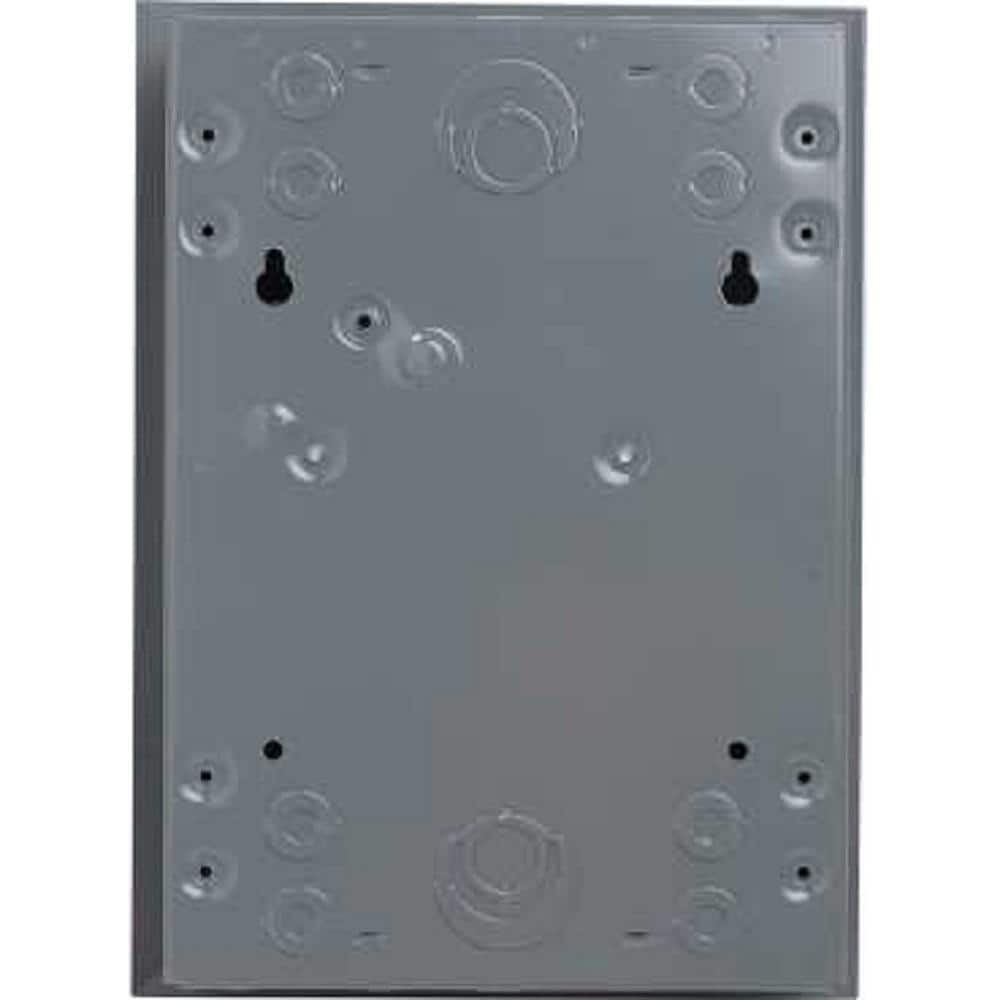

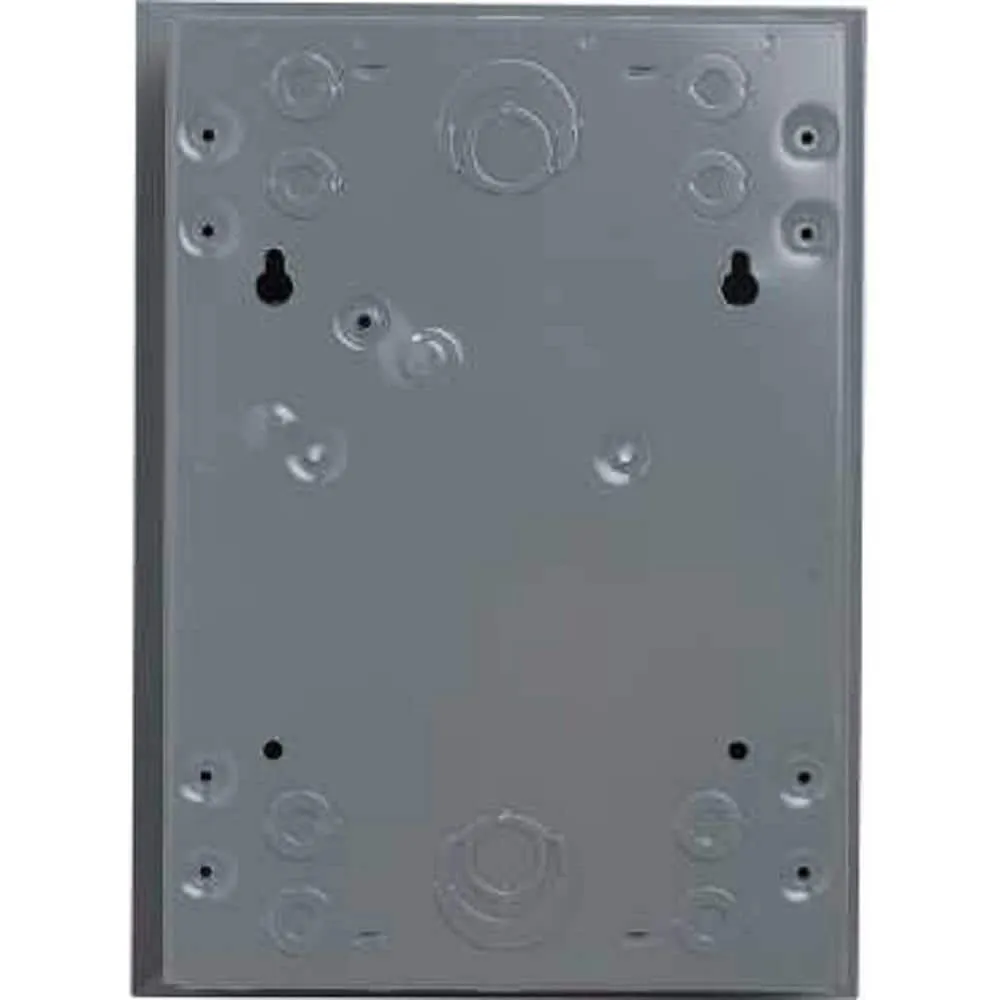

Square D Homeline 100 Amp Indoor Load Center

The Square D Homeline 100 Amp Indoor Main Lug Load Center is a robust and efficient power distribution solution, perfect for value-driven contractors and homeowners. Its durable aluminum bus bar and thermoplastic interior ensure reliable performance, while its user-friendly design supports a quick installation. Ideal for managing up to 12 circuits in residential or commercial settings.

---

Key Features:

• Durable Design: Features a plated aluminum bus bar and rugged thermoplastic interior for lasting performance.
• Easy Installation: Slot/square drive screws accommodate standard and square-head drivers for straightforward setup.
• Versatile Wiring: Offers three ground bar mounting locations for flexible installation options.

---

Specifications Table:

Specification	Details
Breaker Box Type	Subpanel
Connection Type	Non-Neutral
Electrical Product Type	Main Lug/ Main Lug Kit
Indoor/Outdoor	Indoor

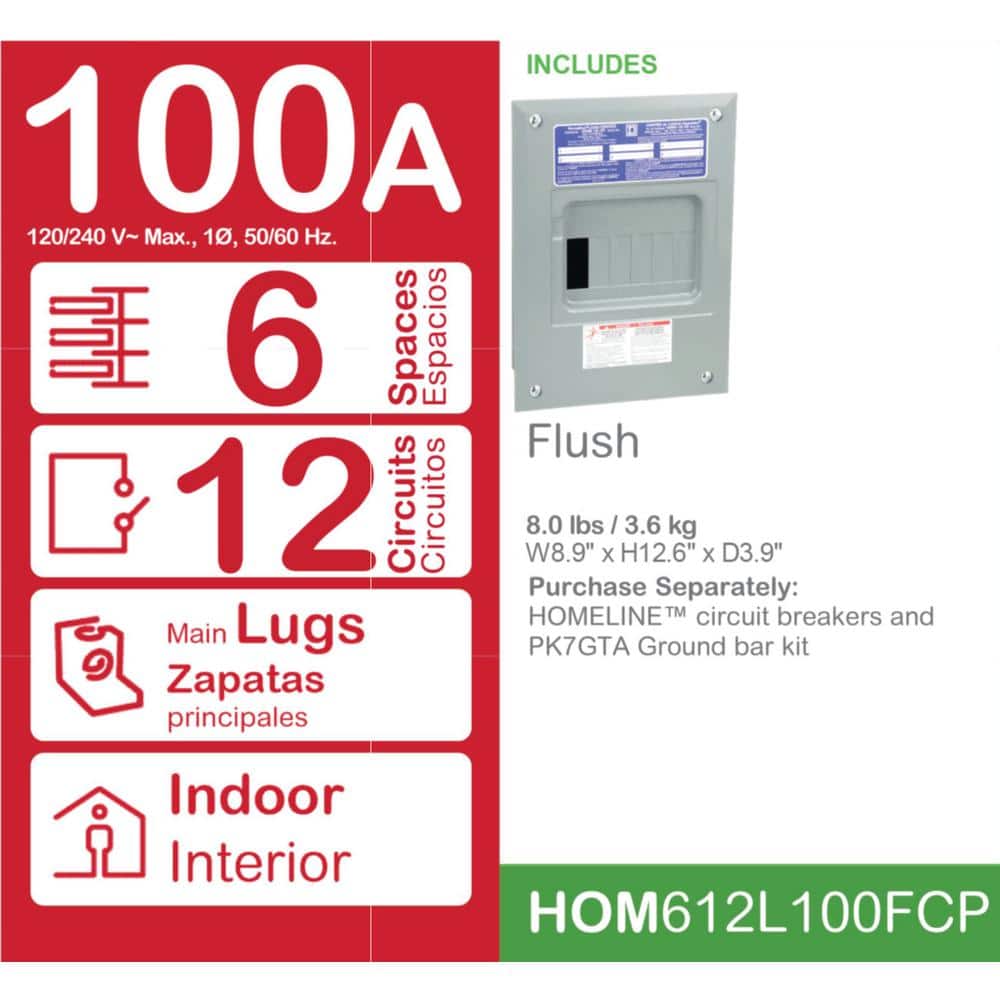

Maximum Amperage (A)	100 A
Mounting Type	Flush
NEMA Configuration	NEMA 1
Number of Circuits	12
Number of Spaces	6
Phase Type	1 Phase
Product Weight (lb.)	7.95 lb
Series Type	Homeline
Voltage (V)	120/240 V
Certifications and Listings	UL Listed
Manufacturer Warranty	Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.

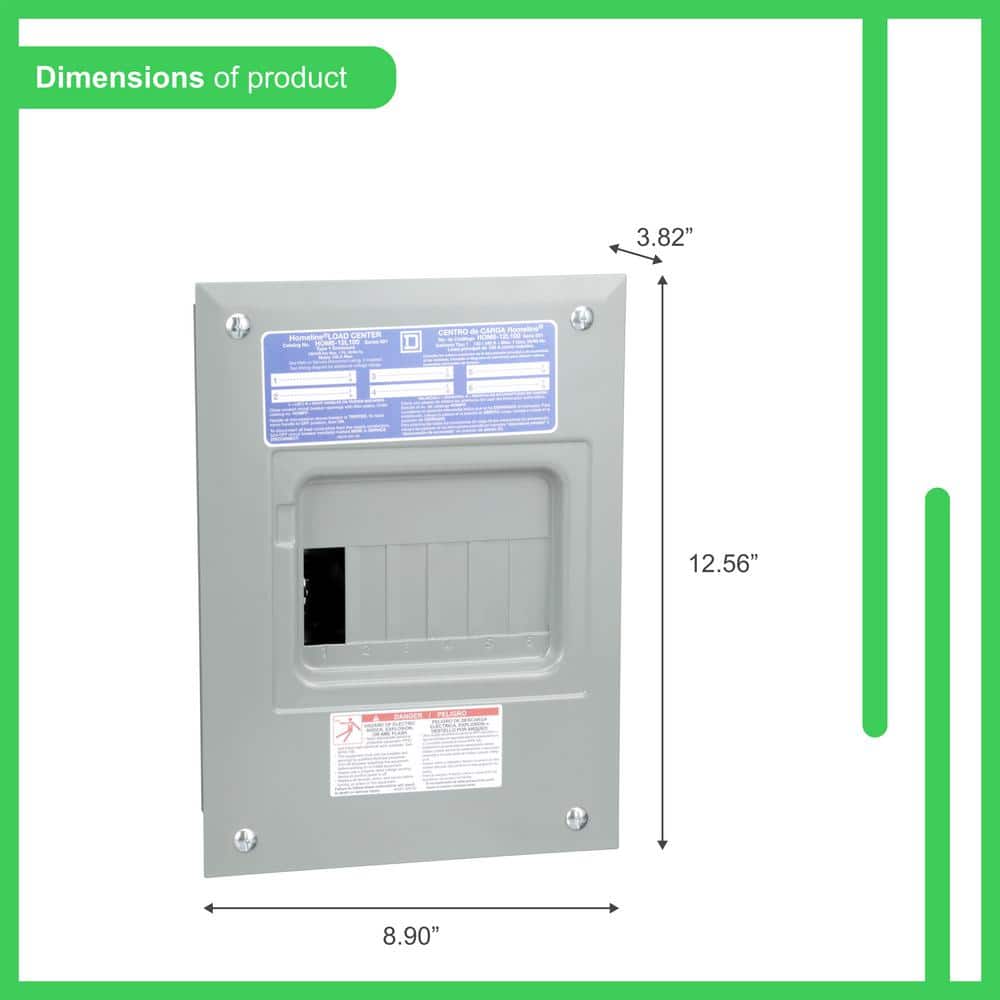

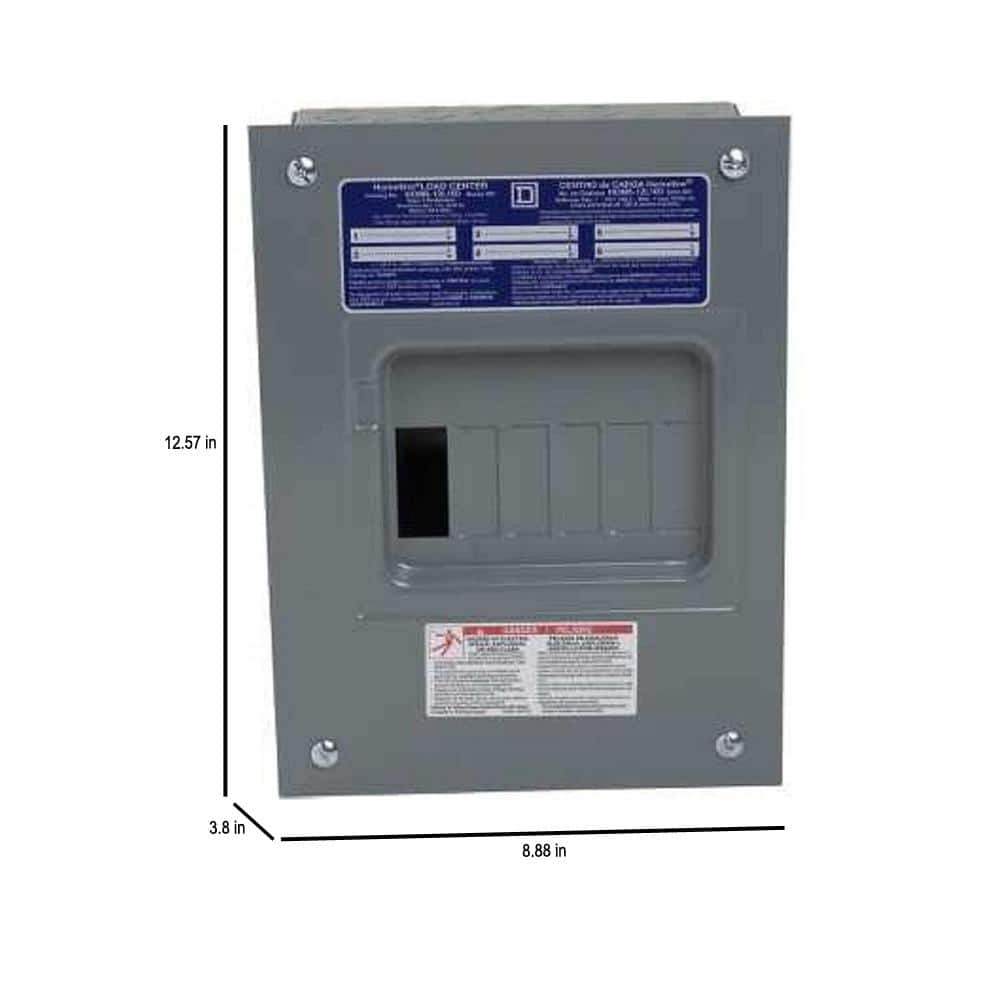

Product Depth (in.)	3.8 in
Product Height (in.)	12.57 in
Product Width (in.)	8.88 in

---

Frequently Asked Questions (FAQ):

Q: Can this load center be used for both residential and commercial applications?
A: Yes, the Square D Homeline 100 Amp Load Center is UL listed for both residential and commercial use, making it versatile for a range of power distribution needs.

---

Q: Does it come with a door?
A: No, this model includes a flush mount cover without a door—ideal for streamlined installations in interior spaces.

---

Q: What type of circuit breakers does it support?
A: This load center is designed specifically to be compatible with Square D Homeline circuit breakers.

---

Q: How many circuits can this load center manage?
A: It can manage up to 12 circuits with 6 available spaces for circuit breakers.

---

Q: Is a surge arrestor included?
A: No, but it accommodates plug-on secondary surge arrestors, which are sold separately.

---

Elevate Your Power Management Aesthetic

Infuse your interiors with the sophistication of seamless power management with the Square D Homeline Load Center. Its streamlined design ensures it quietly complements any space while providing top-notch functionality. Imagine it nestled within a design narrative that embraces both technology and style, where the ability to manage power efficiently is both a necessity and a refined aesthetic choice. Make it the heart of an intelligently designed living or commercial space, ensuring a seamless blend of functionality and luxury.

---

Ensure reliable power management in your next project by upgrading to the efficient and durable Square D Homeline 100 Amp Load Center.
