SOPREMA Sopralene Flam 180 FR GR SBS-Modified Bitumen Granulated Cap Ply 39.4 in. x 32.8 ft.
Regular price $116.00Orders start at $399 — combine any items to reach the minimum. Learn more

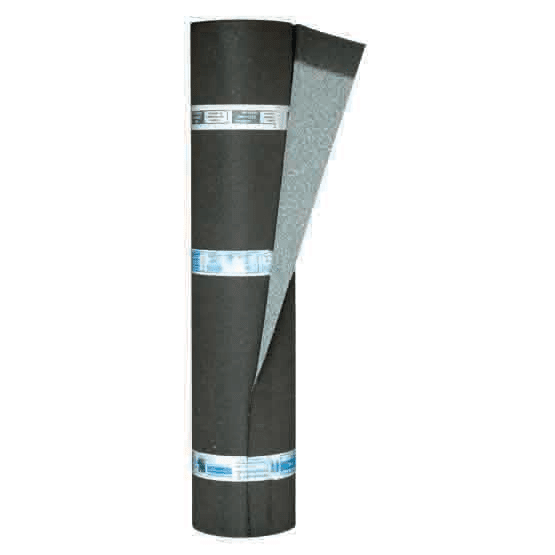

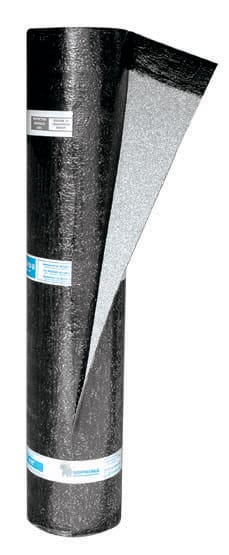

SOPREMA Sopralene Flam 180 FR GR SBS-Modified Bitumen Granulated Cap Ply 39.4 in. x 32.8 ft.
Soprema Sopralene Flam 180 FR GR is a fire-retardant, granulated SBS-modified bitumen cap ply for approved multi-ply membrane and flashing assemblies. The SBS-modified sheet is reinforced with a non-woven polyester mat and surfaced with ceramic-coated granules on top and polyolefin burn-off film underneath for heat welding. Choose Black, White or Gray; each roll measures 39.4 in. x 32.8 ft.
Key Features:
- SBS flexibility: SBS rubber polymer adds elongation, elasticity and flexibility to the bitumen sheet.
- Polyester reinforcement: A dimensionally stable non-woven polyester mat increases membrane strength and puncture resistance.
- Granule surfacing: Ceramic-coated granules add resistance to weathering and foot traffic.
- Fire retardant: Formulated as a fire-retardant granulated cap ply.
- Heat-weldable: Underside polyolefin burn-off film is designed to optimize heat welding.
- Three color choices: Available in Black, White and Gray finishes.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Soprema |
| Sell unit | 1 roll |
| Product line | Sopralene Flam 180 FR GR |
| Available colors | Black, White, Gray |
| Available sizes | 39.4 in. x 32.8 ft. roll |
| Material | SBS polymer-modified bitumen with non-woven polyester reinforcement |
| Finish / texture | Ceramic-coated granules topside; polyolefin burn-off film underside |
| Dimensions | 39.4 in. x 32.8 ft. |
| Intended use | Cap ply in approved multi-ply membrane and flashing assemblies |
| Fire rating | Fire retardant (FR) as printed |
Coverage & How Much You Need:
Each roll is 39.4 in. wide by 32.8 ft. long, covering approximately 107.8 sq. ft. before allowing for side laps and heat-welded seams. Plan rolls per square plus extra for laps and flashing details.
Fit and Compatibility:
Intended for use in approved multi-ply membrane and flashing assemblies. Confirm the full assembly with the membrane manufacturer; base plies, insulation, adhesives and welding equipment are sold separately.
Frequently Asked Questions (FAQ):
Q: What colors are available?
A: Black, White and Gray, all in the same 39.4 in. x 32.8 ft. roll size.
Q: How much does one roll cover?
A: A roll covers about 107.8 sq. ft. before deducting for side laps and welded seams.
Q: How is it installed?
A: The polyolefin burn-off film underside is designed for heat welding; use in approved multi-ply assemblies per manufacturer instructions.
Q: What is the sheet reinforced with?
A: A tough, dimensionally stable non-woven polyester mat.
Q: Can it handle foot traffic?
A: Yes, the granule surfacing provides added resistance to weathering and foot traffic.
Q: What does FR GR mean?
A: Fire retardant, granulated; the cap ply is formulated for fire retardancy and surfaced with ceramic-coated granules.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Choose this FR GR cap ply when a job calls for a granulated, fire-retardant wearing surface in a multi-ply SBS system; the polyester mat gives real puncture resistance around rooftop traffic. White reflects heat on occupied or low-slope buildings, while Black and Gray suit aesthetic-matched details. Overlap side laps properly and weld cleanly through the burn-off film for watertight seams.
Heat welding modified bitumen involves open flame and hot surfaces; use trained installers with proper fire-watch and safety equipment per the manufacturer's instructions.
Order Soprema Sopralene Flam 180 FR GR cap ply in Black, White or Gray for your multi-ply roofing project.
