SolarFoot

$5.15 $4.84

Save $0.31

Shipping calculated at checkout.

[{"id":53068659458415,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"LPSM812548MM200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SolarFoot - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":484,"weight":0,"compare_at_price":515,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068659491183,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"LPSM812548MM200-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SolarFoot - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":5229,"weight":0,"compare_at_price":5563,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068659523951,"title":"Box of 100","option1":"Box of 100","option2":null,"option3":null,"sku":"LPSM812548MM200-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SolarFoot - Box of 100","public_title":"Box of 100","options":["Box of 100"],"price":51959,"weight":0,"compare_at_price":55275,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068659556719,"title":"Box of 150","option1":"Box of 150","option2":null,"option3":null,"sku":"LPSM812548MM200-150","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SolarFoot - Box of 150","public_title":"Box of 150","options":["Box of 150"],"price":77713,"weight":0,"compare_at_price":82673,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

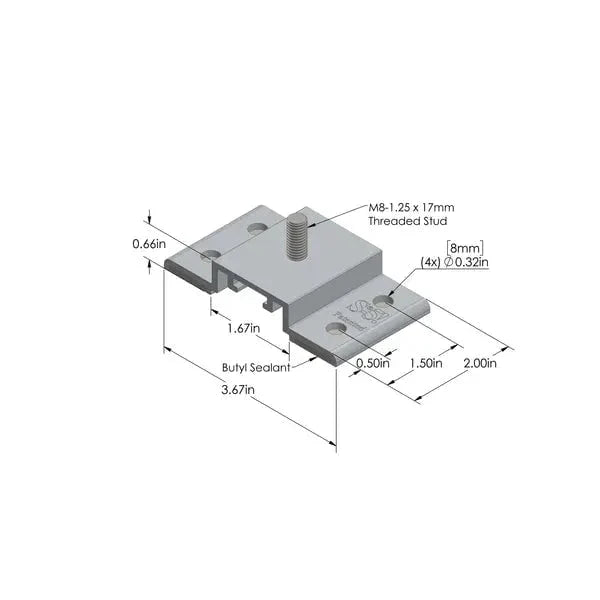

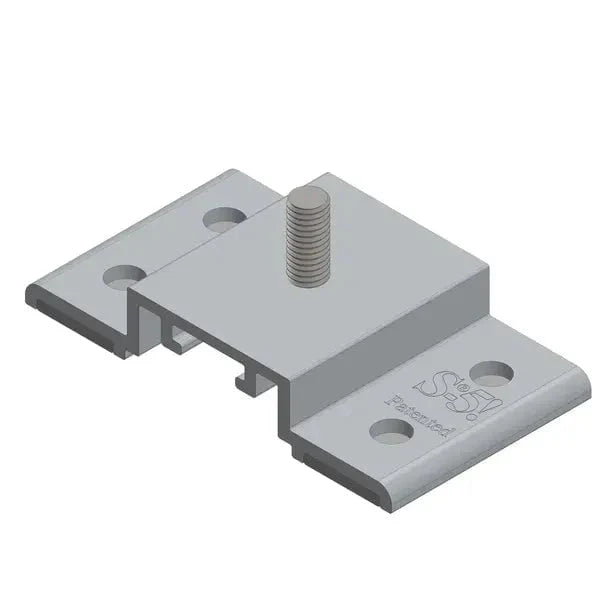

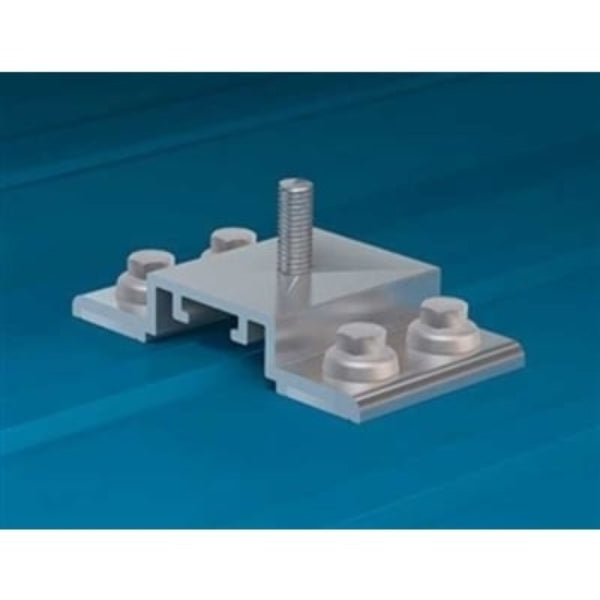

The S-5! SolarFoot is a simple, cost-effective pedestal for L-Foot attachment of rail-mounted solar PV. The bracket can be used to mount any L-foot to exposed-fastened metal roofs, such as AG-panel or R-Panel.

Designed to straddle minor striations in your roof panel for attachment into decking or structure, SolarFoot can be fastened into a variety of substrates, including the wood deck, wood timber purlins or steel purlins.

Benefits

Designed for exposed-fastened metal roof solar mounting attached via L-Foot and rails
Compatible with all rail manufacturer’s L-Foot components
Attaches directly to structure or deck for optimal holding strength
Proper sealant selection never left to chance; no messy or risky field application of sealant
Low center of gravity reduces moment arm commonly associated with L-Foot/rail solar racking
Stainless integrated stud and serrated, hex-flange nut secure the L-Foot into position

Key Features

Compatible with all L-Foot products
Secure rail-mounted systems to trapezoidal roof profiles
Integrated reservoir prevents over-compressing seal
Utilizes either two or four fasteners (sold separately), depending on need
Must attach through the roof into either deck or structure using S-5! tested fasteners to achieve published holding strength
Integral M8 stud and hex-flange nut included

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
