SnapNrack Flashbox Internal Wiring Kit for Solar Roof Mount Systems
Regular price $39.00Orders start at $399 — combine any items to reach the minimum. Learn more
SnapNrack Flashbox Internal Wiring Kit for Solar Roof Mount Systems

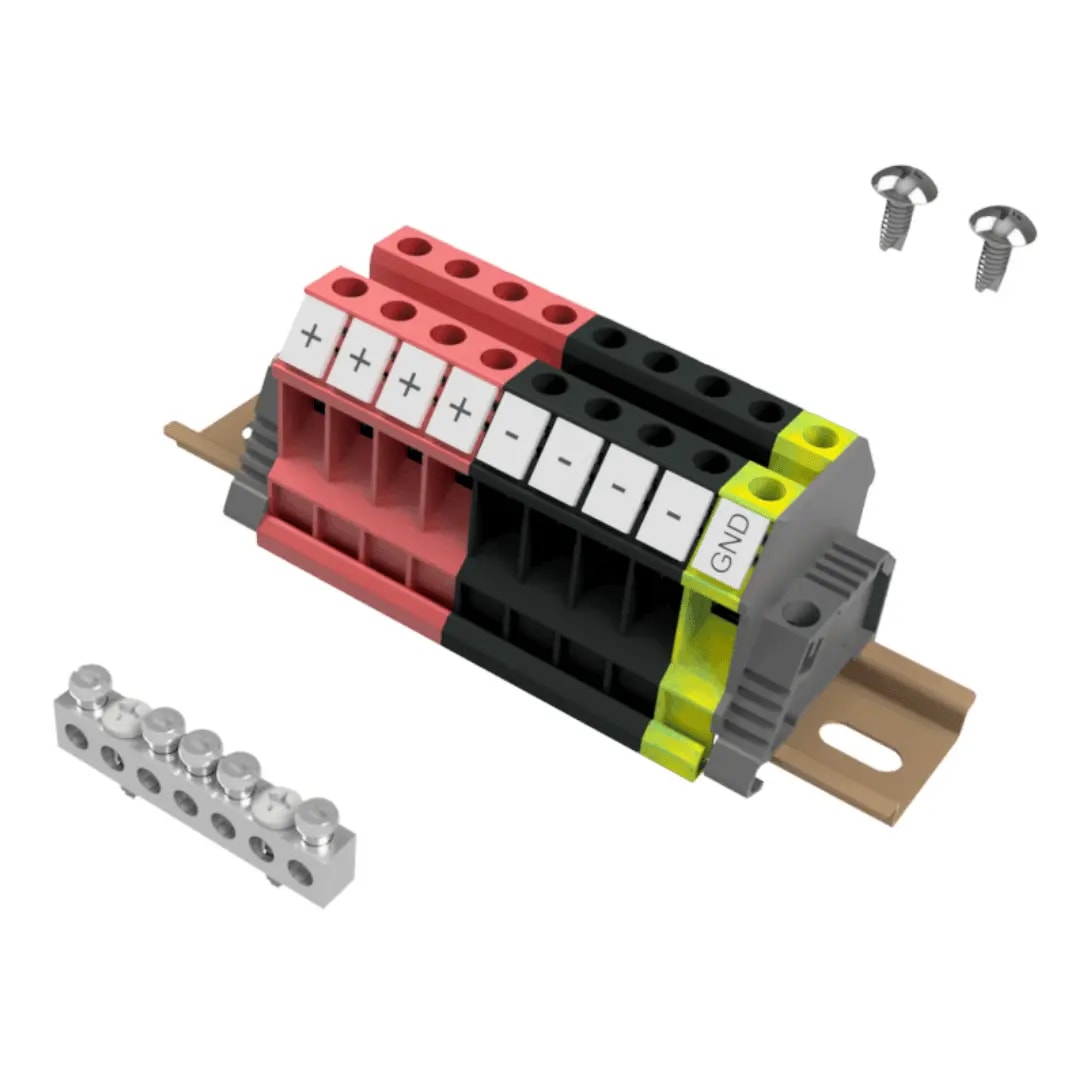

The SnapNrack Flashbox Internal Wiring Kit is a wire-management accessory that routes module string wiring internally through a SnapNrack Flashbox roof penetration. Each kit contains the internal wiring components needed to complete a Flashbox installation. Sold as one kit.
Key Features:
- Internal wire routing: Routes solar string wiring through the interior of the SnapNrack Flashbox.
- Wire management: Part of the SnapNrack balance-of-system wire management lineup.
- System-matched: Designed to work with the SnapNrack Flashbox penetration assembly.
- Complete kit: Sold as a single kit with the internal wiring components for the application.
- Clean finish: Keeps conductors concealed and organized inside the flashed roof opening.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | SnapNrack |
| Sell unit | 1 kit |
| Product line | SnapNrack Flashbox |
| Pack quantity | 1 kit per order unit |
| Intended use | Internal wiring of SnapNrack Flashbox solar roof penetrations |
Fit and Compatibility:
Intended for use with SnapNrack Flashbox roof penetration assemblies; check the Flashbox installation manual (version 2.1) for wiring routing and compatibility details. Flashbox and rail components are sold separately.
Frequently Asked Questions (FAQ):
Q: What is included in the kit?
A: The internal wiring components for routing conductors through a SnapNrack Flashbox; the Flashbox itself and rail hardware are sold separately.
Q: Which Flashbox does it fit?
A: It is designed for SnapNrack's Flashbox product; consult the Flashbox installation manual for the exact compatible assembly.
Q: Is this a safety or electrical code item?
A: It is a manufacturer wire-management accessory; all wiring must still comply with the NEC and local electrical codes.
Q: Can I buy it as a single piece?
A: It is sold as one kit per order unit.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Route string wiring inside the Flashbox only as shown in SnapNrack's installation manual, keeping conductor bend radii and connector protection in mind. Pair the kit with the correct Flashbox base and flashing for your roof type, and stage the internal wiring before setting the module rails to save a return trip to the roof.
Only qualified installers should perform photovoltaic wiring; de-energize conductors and follow NEC and local electrical codes.
Order the SnapNrack Flashbox Internal Wiring Kit to keep your solar penetrations neat, concealed and code-ready.
