SIMPSON STRONG-TIE SJC 2 in. x 4-1/2 in. x 8-1/4 in. 14-Gauge Galvanized Steel-Joist Connector (15-Pack) – SJC8.25-R15
Regular price $93.75Orders start at $399 — combine any items to reach the minimum. Learn more

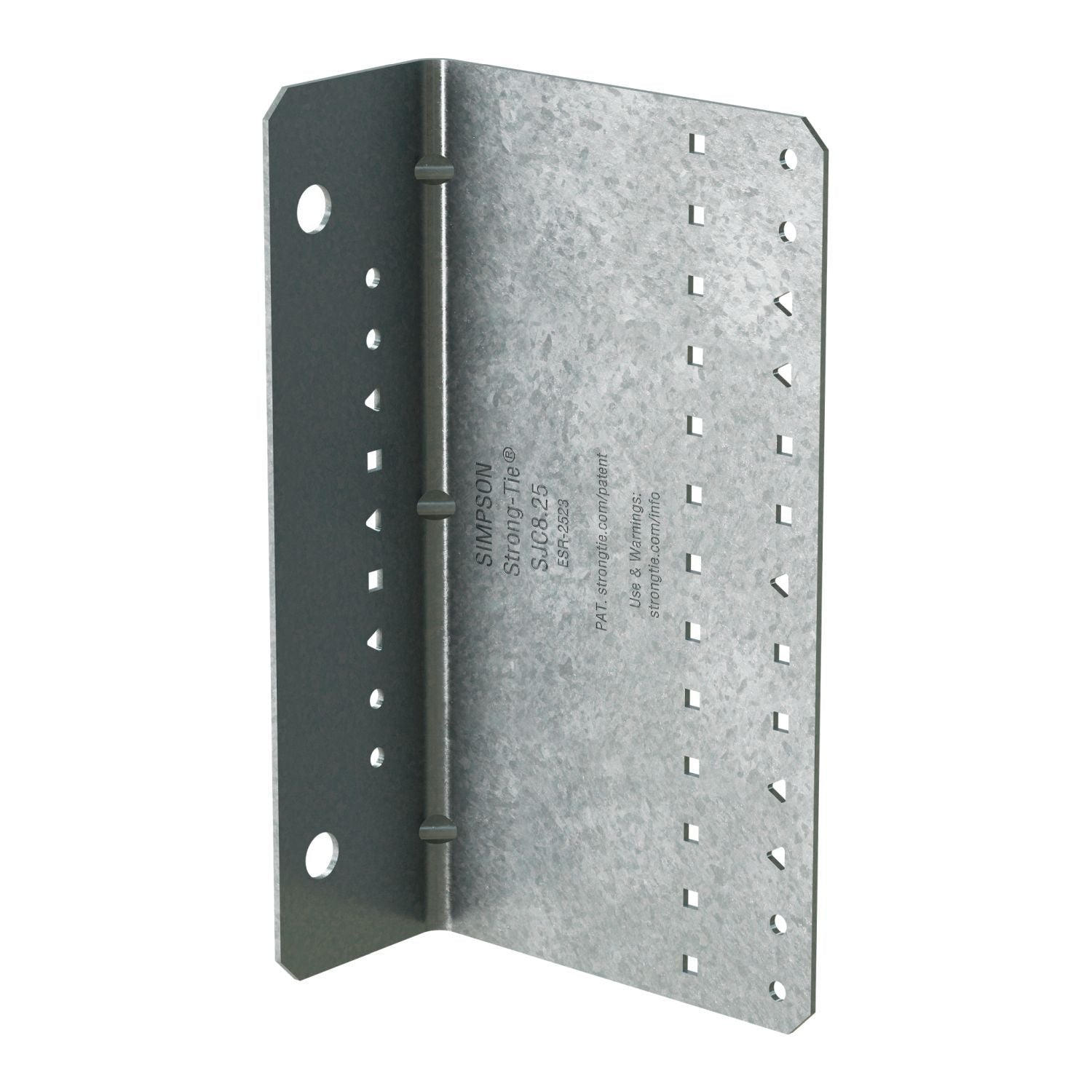

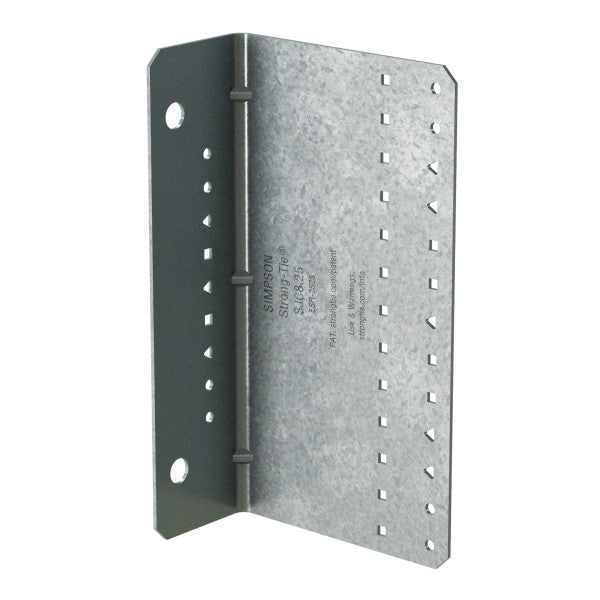

The Simpson Strong-Tie SJC 8-1/4 in. joist connector is a 14-gauge galvanized steel clip designed for cold-formed steel joist, rafter, and metal-deck applications. Each pack includes 15 connectors sized 2 in. x 4-1/2 in. x 8-1/4 in. It installs on the open side of joists and pairs with specified fasteners.
Key Features
- CFS Joist Design: Specifically designed for cold-formed steel joist, rafter, and underside-of-metal-deck applications.
- Wide Flange Fit: The 4-1/2 in. leg length enables soft-side connections for joists with flanges up to 3-1/2 in.
- Lip Accommodation: Angle lengths accommodate hard-side or soft-side attachment for joists with return lips up to 3/4 in.
- Deck Flute Ready: Prepunched 3/8-in. holes suit 6, 8, 10, and 12 in. on-center metal-deck flutes.
- No Predrilling: Prepunched holes reduce installation cost by eliminating predrilling.
- Heavy Gauge: Made from 14-gauge (68 mil) steel, galvanized G90 for corrosion resistance.
Specifications
- Manufacturer model
- SJC8.25-R15
- UPC
- 707392127321
- Sell unit
- Pack of 15 connectors
- Material
- 14-gauge (68 mil) steel
- Color / finish
- G90 galvanized
- Nominal size
- 2 in. x 4-1/2 in. x 8-1/4 in.
- Height
- 2 in.
- Width
- 4-1/2 in.
- Length
- 8-1/4 in.
- Wire gauge
- 14 ga
- Thickness
- 68 mil
- Hole size
- 3/8 in. prepunched holes
- Pack quantity
- 15 connectors
- Intended use
- CFS joist, rafter, metal-deck and kicker-to-metal-deck applications
Fit and Compatibility
Part of the Simpson Strong-Tie SJC steel joist connector line for cold-formed steel framing. Fits joists and rafters with flanges up to 3-1/2 in. and return lips up to 3/4 in. Fasteners sold separately.
Frequently Asked Questions
How many connectors come in a pack?
Each pack includes 15 galvanized steel-joist connectors.
What joist sizes does it fit?
It installs on the open side of joists and rafters with flanges up to 3-1/2 in. and return lips up to 3/4 in.
Can it attach to metal deck?
Yes, it also accommodates kicker-to-metal-deck applications, and its prepunched 3/8-in. holes suit 6, 8, 10, and 12 in. on-center deck flutes.
What material and finish is it?
It is made from 14-gauge (68 mil) steel with a G90 galvanized finish for corrosion resistance.
Does it need predrilling?
No, prepunched holes eliminate predrilling and speed installation.
Product Expert Notes
Pick the SJC for open-side installation on CFS joists and rafters where the 4-1/2 in. leg lets you reach soft-side connections on larger 3-1/2 in. flanges. The prepunched 3/8-in. holes make it especially convenient for metal-deck flute alignment. Order enough packs for all joist ends and use the fasteners specified in the Simpson load tables to achieve rated values.
Use all specified fasteners in the correct positions to achieve published load values and follow the project's engineered connection details.
Get the Simpson Strong-Tie SJC galvanized steel-joist connector 15-pack for your cold-formed steel joist connections.
