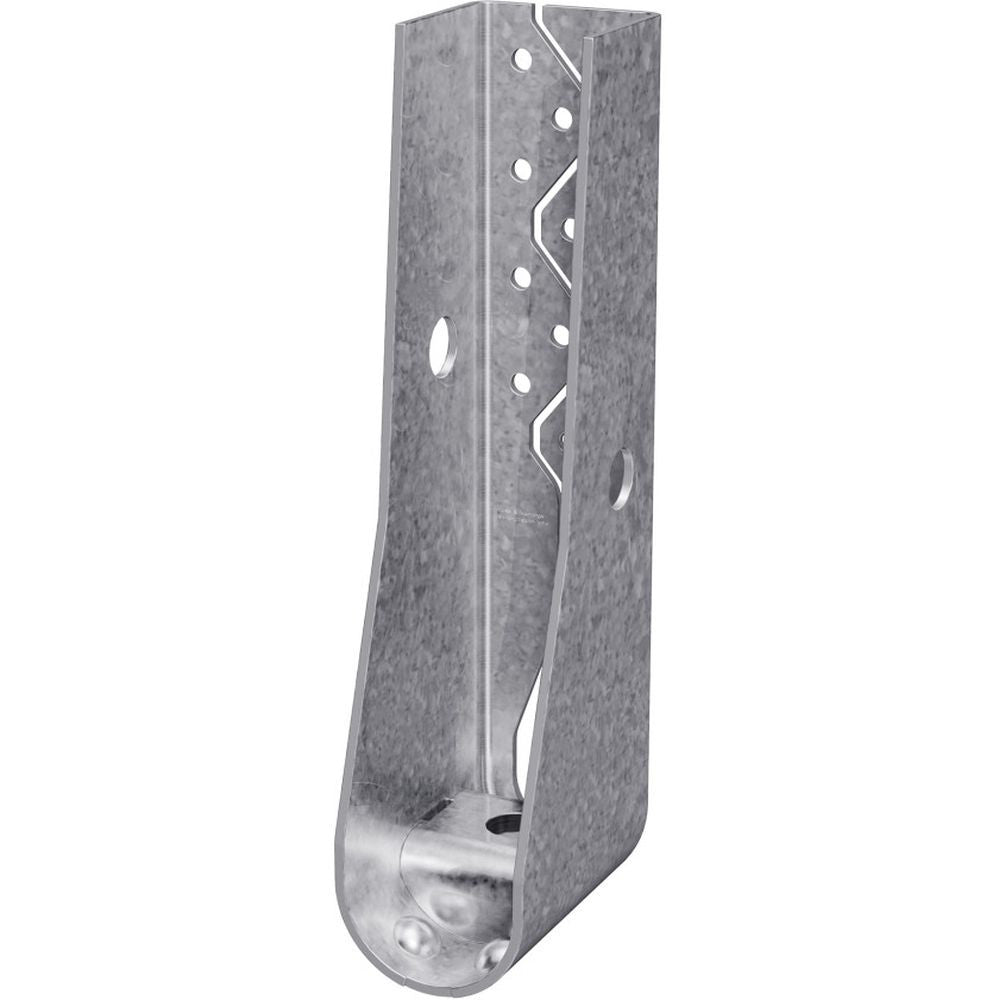

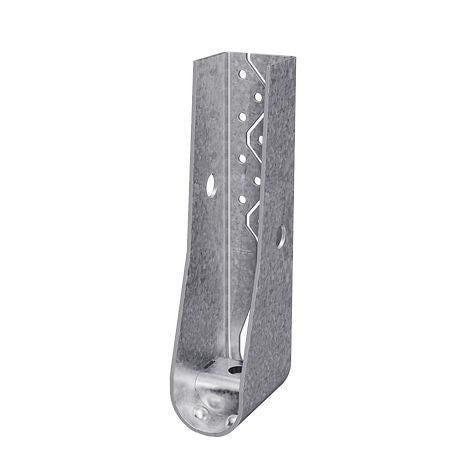

SIMPSON STRONG-TIE S/HDU6 10-3/8 in. Galvanized Cold-Formed Steel Holdown
Regular price $41.40Orders start at $399 — combine any items to reach the minimum. Learn more

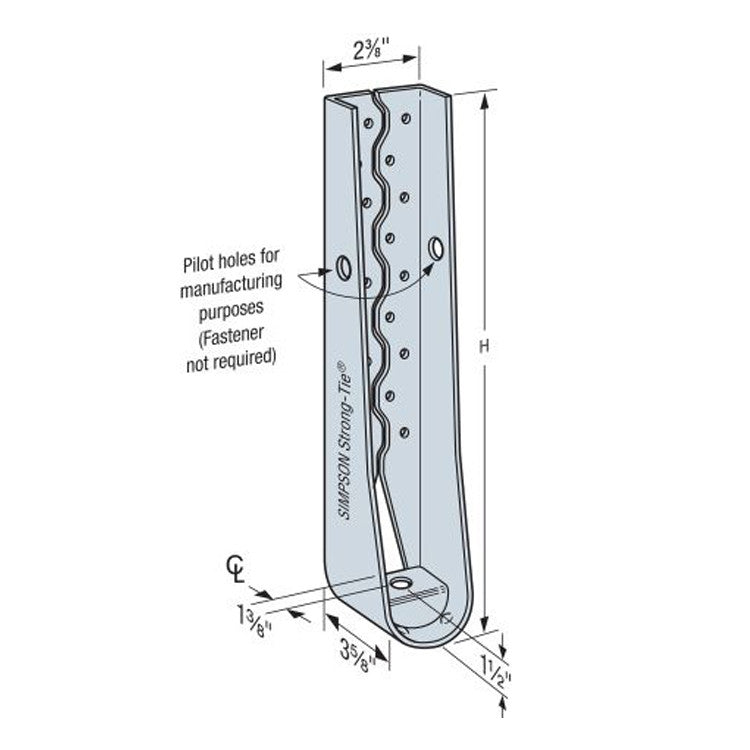

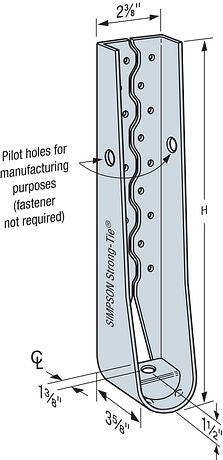

The Simpson Strong-Tie S/HDU6 is a light-gauge holdown for cold-formed steel framing, providing stud-to-foundation and floor-to-floor tension connections. It stands 10-3/8 in. tall with a G90 galvanized finish and installs with #14 self-drilling tapping screws, which are sold separately. One holdown per order unit.
Key Features
- CFS Framing: Used as a cold-formed steel framing connector where structural steel members require stud-to-foundation or floor-to-floor connections.
- Screw Install: Installs with #14 self-drilling tapping screws, saving time and labor.
- Low Deflection: Pre-deflected geometry virtually eliminates material stretch, resulting in low deflection under load.
- 5/8 in. Anchor: Accepts a 5/8 in. diameter foundation anchor.
- Galvanized Finish: G90 zinc galvanized coating for corrosion resistance in dry environments.
- Versatile Mounting: Supports wood-to-steel, steel-to-steel, and steel-to-concrete installations.
Specifications
- Manufacturer model
- S/HDU6
- UPC
- 707392722205
- Sell unit
- 1 holdown (fasteners and anchor not included)
- Material
- Cold-formed steel
- Color / finish
- G90 galvanized
- Height
- 10-3/8 in.
- Width
- 5/8 in. (foundation anchor diameter)
- Thickness
- Light gauge steel
- Foundation anchor diameter
- 5/8 in.
- Fasteners
- (12) #14 self-drilling tapping screws, not included
- Assembly
- Screw-installed, self-drilling tapping screws
- Intended use
- Stud-to-foundation and floor-to-floor holdown connections in cold-formed steel framing
- Code reports
- IAPMO Evaluation Report ER-0124; State of Florida FL13872
Fit and Compatibility
Part of the Simpson Strong-Tie S/HD and S/HDU holdown line for cold-formed steel construction. Fasteners (12 #14 screws) and the 5/8 in. foundation anchor are sold separately. G90 coating is suited to dry environments; it offers a low level of corrosion resistance.
Frequently Asked Questions
What is included with the holdown?
One galvanized S/HDU6 holdown per unit; the (12) #14 screws and 5/8 in. foundation anchor are not included.
What fasteners does it use?
It installs with #14 self-drilling tapping screws, which save time and labor versus predrilled installations.
What anchor does it require at the foundation?
It uses a 5/8 in. diameter foundation anchor.
Is it corrosion resistant?
The G90 galvanized coating provides a low level of corrosion resistance suited to dry environments.
What applications is it designed for?
Stud-to-foundation and floor-to-floor connections for cold-formed steel framing, including wood-to-steel, steel-to-steel, and steel-to-concrete installations.
Product Expert Notes
Choose the S/HDU6 when your cold-formed steel shearwall or chord needs a holdown that combines performance with screw installation. Its pre-deflected geometry keeps deflection low under load, which matters for wall performance. Confirm the required holdown model and anchor size with your project's engineered drawings, and use all specified screws and the correct 5/8 in. anchor to achieve rated capacities.
Holdowns are structural components; follow the engineer of record's fastener and anchor schedule, and use all specified fasteners to achieve published load values.
Add the Simpson Strong-Tie S/HDU6 galvanized steel holdown to your cold-formed steel framing order today.
