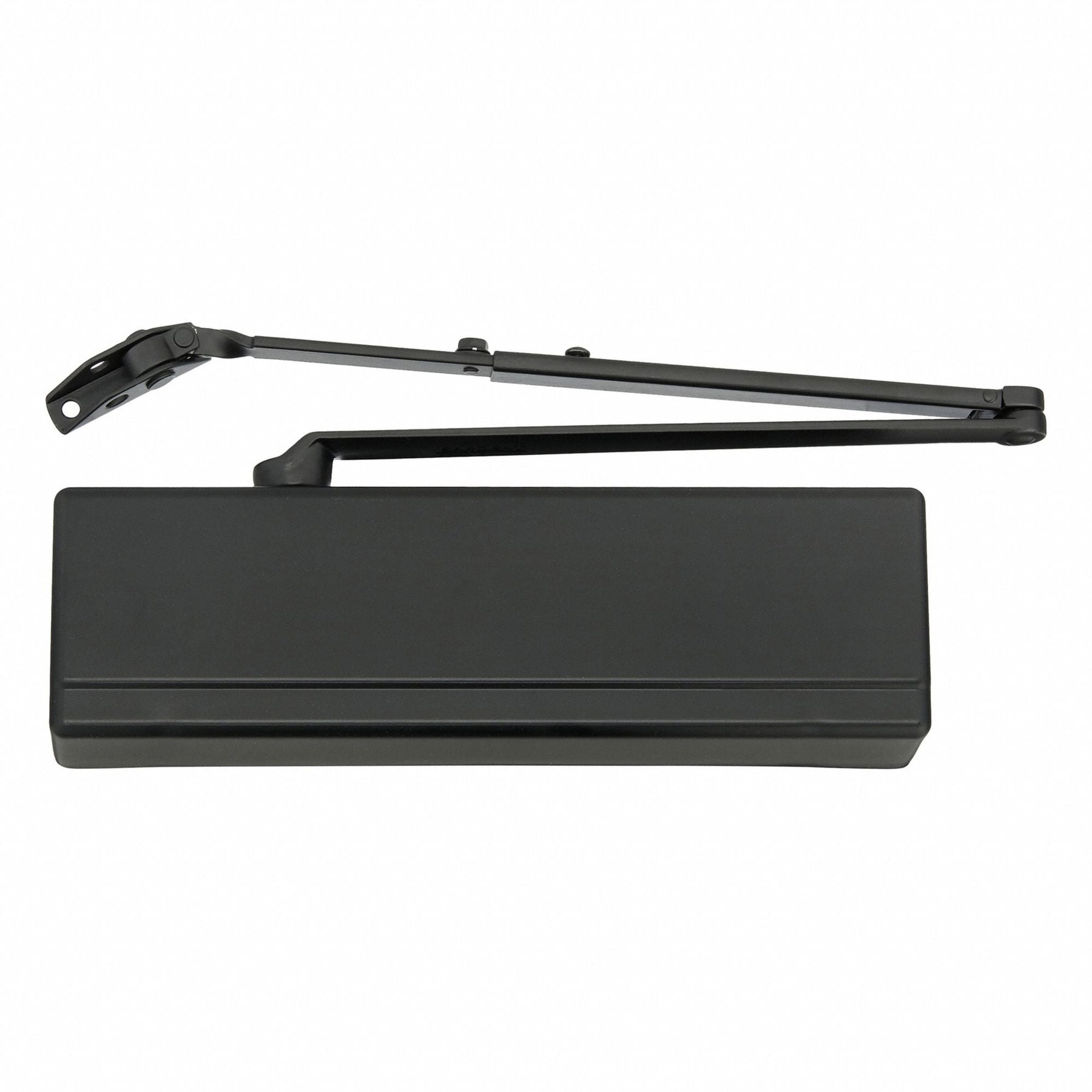

Grade 1 Heavy Duty Parallel Door Closer

The SARGENT Grade 1 Heavy Duty Door Closer is engineered for high-traffic environments, ensuring durability and performance. With its sleek parallel-mount design, it seamlessly integrates into any door setup while offering robust hydraulic operation for smooth, controlled closing every time.

---

Key Features:

• Superior Durability: Designed to handle up to 25,000,000 cycles, ideal for high-traffic areas.
• Sleek Design: Parallel mounting with folding arm for a modern, unobtrusive look.
• Fire Rated: 3-hour UL and cUL listed rating for enhanced safety.
• Full Control: Adjustable spring size with standard pressure relief valves for precise operation.
• Versatile Use: Suitable for both interior and exterior applications, compatible with door widths up to 48 inches.

---

Specifications Table:

Specification	Details
Manufacturer Part Number	351 UO BSP
Brand	SARGENT
Closer Mounting Type	Parallel
Closer Series	351
Closer Stop Type	Spring
Closer Type	Non-Hold Open
Color	Black
Compatible with Brand	Sargent
Compatible with Series	Sargent 351
Display Qty	1
Display Sell UOM	EA
Max Door Opening Angle	180 °
Door Opening - Minimum	120 °
Features	Standard Pressure Relief Valves for Both Opening and Closing Cycles
Finish	Black
Fire Rating	3 hr
Housing Depth	2-3/16 in
Housing Height	3-7/8 in
Energy Source	Hydraulic
Door Width Campatibility	60 in
Location Use	Interior/Exterior
Properties	Wear-Resistant
Standards	UL and cUL Listed
UL Fire Rating	UL10C
Spring Type	Adjustable
Height Between Mounting Holes	2-1/2 in
Spring Size - Minimum	1
Material	Aluminum
Exterior Door Width - Maximum	48 in
Product Type	Door Closer
Projection	2-3/16 in
Spring Size	6
Arm Type	Parallel
Closer Cycles	25,000,000
Hand Orientation	Non-Handed
Housing Length	13 in
Performance Duty Rating	1
Length Between Mounting Holes	9 in
Ligature Resistance	Not Ligature-Resistant
ADA Compliant	Yes
Performance Rating	Grade 1 - Heavy Duty
Finish C	Black Suede Powder Coated, Sprayed ; Aluminum ; Black

---

Frequently Asked Questions (FAQ):

Q: What type of doors is this closer compatible with?
A: This door closer is designed for both interior and exterior applications and is compatible with doors up to 48 inches in width.

---

Q: Is this door closer ADA compliant?
A: Yes, the SARGENT Grade 1 Heavy Duty Door Closer meets ADA compliance standards.

---

Q: How is the door closer mounted?
A: The closer uses a parallel mount system, with the closer arm located underneath the door frame on the push side.

---

Q: Can the door closer be adjusted for different door types?
A: Yes, it features an adjustable spring size and pressure relief valves to accommodate various door specifications.

---

Transform Entries with Timeless Elegance

Elevate your space with the SARGENT Grade 1 Door Closer, where functionality meets finesse. Its discreet, foldaway arm design offers a clean aesthetic that blends seamlessly with any decor, adding a touch of refined elegance to your doorways. Ideal for high-traffic areas in commercial settings, its robust performance promises longevity and reliability. Consider it a luxurious staple for any project, embodying both efficiency and style.

---

Experience seamless door operation and enhanced safety by choosing the SARGENT Grade 1 Heavy Duty Door Closer, your ultimate solution for high-traffic environments.
