S5 VersaBracket 67

$4.05 $3.81

Save $0.24

Shipping calculated at checkout.

[{"id":53068656378223,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"VBP6732613752875","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S5 VersaBracket 67 - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":381,"weight":0,"compare_at_price":405,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068656410991,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"VBP6732613752875-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S5 VersaBracket 67 - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":4155,"weight":0,"compare_at_price":4420,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068656443759,"title":"Box of 70","option1":"Box of 70","option2":null,"option3":null,"sku":"VBP6732613752875-70","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S5 VersaBracket 67 - Box of 70","public_title":"Box of 70","options":["Box of 70"],"price":28746,"weight":0,"compare_at_price":30581,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068656476527,"title":"Box of 210","option1":"Box of 210","option2":null,"option3":null,"sku":"VBP6732613752875-210","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S5 VersaBracket 67 - Box of 210","public_title":"Box of 210","options":["Box of 210"],"price":85735,"weight":0,"compare_at_price":91207,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

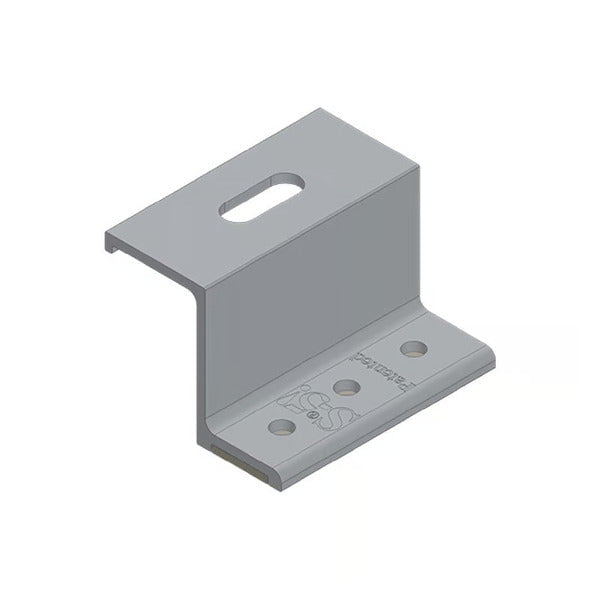

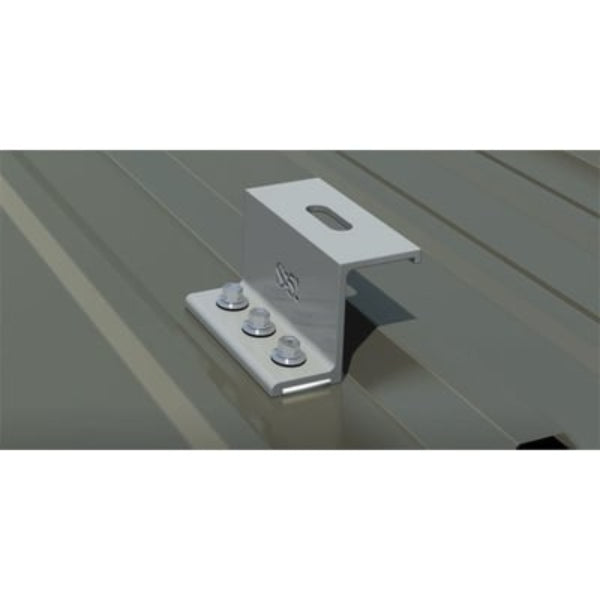

The VersaBracket is a bottom-fixed, metal roof bracket specifically designed for mounting S-5! ColorGard with VersaClip and solar PV to exposed‑fastened profiles. VersaBracket is compatible with the S-5-PVKIT® for rail-less (direct-attach™) or bottom-bolted rail for solar mounting. It can be used for other utility mounting as well.

VersaBracket 67 fasten through the roof, into the deck or structure using fasteners specifically designed to outlive the roof (fasteners sold separately for the appropriate substrate).

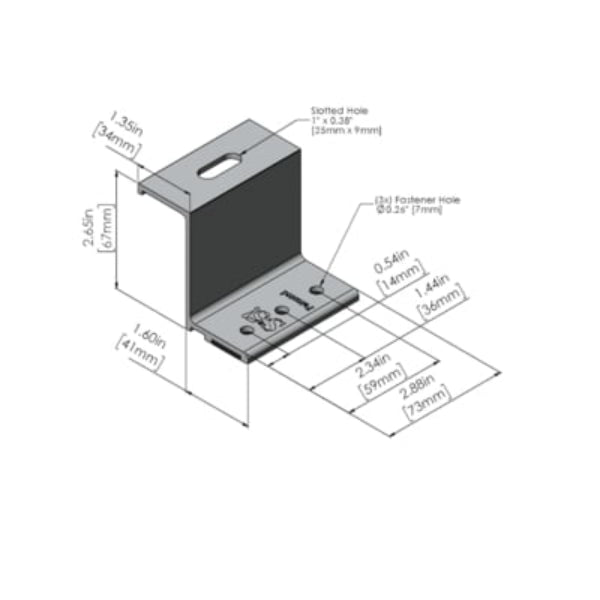

Specifications:

VersaBracket 67: 2.65” (67 mm)
Horizontal mounting face comes with 1” (25 mm) slot on top for 8 mm bolted attachments
Factory-applied, non-curing, 60-yr butyl sealant–just peel release paper and fasten
Reservoir conceals sealant from UV exposure, preventing UV degradation and over-compression
Design uses a “triple-seal” for watertight assurance

Note: We do NOT recommend the use of VersaBracket for side-bolted rail with L-Foot. For these applications, please see ProteaBracket, VersaGard, or SolarFoot

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
