S-5-ZF Metal Roof Clamps

$6.54 $6.15

Save $0.39

Shipping calculated at checkout.

[{"id":53068658868591,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"ZMFL741381181T","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-ZF Metal Roof Clamps - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":615,"weight":0,"compare_at_price":654,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068658901359,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"ZMFL741381181T-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-ZF Metal Roof Clamps - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":6144,"weight":0,"compare_at_price":6536,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068658934127,"title":"Box of 68","option1":"Box of 68","option2":null,"option3":null,"sku":"ZMFL741381181T-68","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-ZF Metal Roof Clamps - Box of 68","public_title":"Box of 68","options":["Box of 68"],"price":41776,"weight":0,"compare_at_price":44443,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068658966895,"title":"Box of 250","option1":"Box of 250","option2":null,"option3":null,"sku":"ZMFL741381181T-204","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-ZF Metal Roof Clamps - Box of 250","public_title":"Box of 250","options":["Box of 250"],"price":162348,"weight":0,"compare_at_price":172711,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

A nut and bolt are often the required connection for certain utilities or bottom-bolted PV rails (Schletter, K-2, Everest) to a standing seam clamp. Choose the S-5-ZF (“F” for “Flange”) for an economical, non-penetrating standing seam metal roof (SSMR) clamp for most “bulb” seam configurations such as ZipRib, BEMO and KalZip.

The slotted hole in the flange allows minor adjustment, making the ZF ideal for walkways, module-level power electronics and a myriad of other utility mountings.

Stainless steel lock-nuts and several bolt sizes are sold separately.

Specifications:

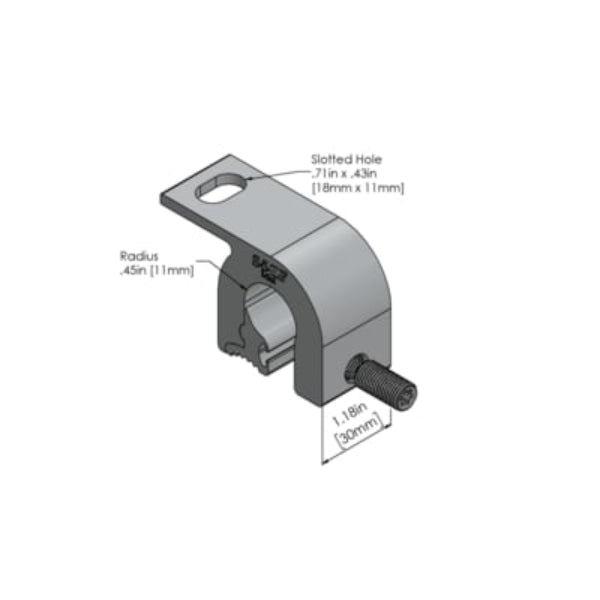

Slotted hole in flange provides adjustment for versatile utility mounting (bolt diameter up to 10 mm (⅜”)
Specifically designed to fit “bulb-shaped” seam profiles
Unique flange design increases ease and versatility of attachment to bottom-mount rails and other nut-and-bolt connections
Light and medium-duty applications, such as utility mounting and bottom-mount PV rails
One T-30 Torx round-point setscrew (Torx bit tip provided)
Ideal for bottom-mounted solar PV rails

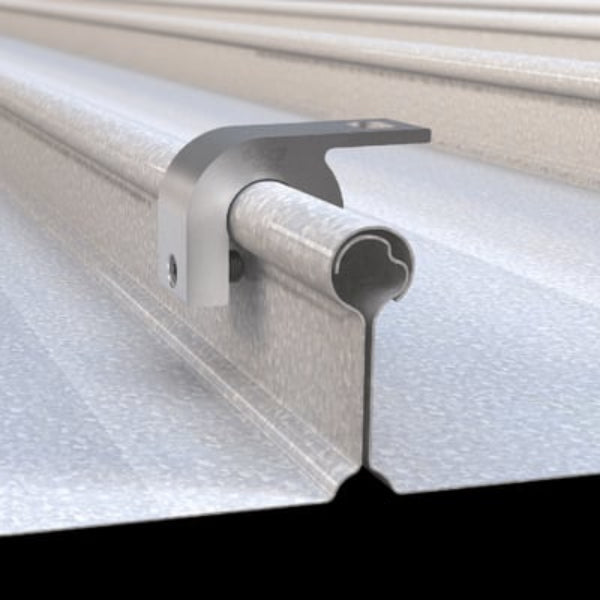

The S-5-ZF, featuring the Zip Flange, offers a secure nut and bolt connection for various "bulb" seam configurations, ensuring robust attachment and compatibility with multiple seam types.

If this clamp does not match your roof profile, browse our other metal roof clamps below to find one that best matches your roof profile.

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
