S-5-Z Mini Metal Roof Clamps

$7.62 $7.16

Save $0.46

Shipping calculated at checkout.

[{"id":53068652380527,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"ZM1M81381181_NBT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-Z Mini Metal Roof Clamps - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":716,"weight":0,"compare_at_price":762,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068652413295,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"ZM1M81381181_NBT-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-Z Mini Metal Roof Clamps - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":7586,"weight":0,"compare_at_price":8070,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068652446063,"title":"Box of 50","option1":"Box of 50","option2":null,"option3":null,"sku":"ZM1M81381181_NBT-50","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-Z Mini Metal Roof Clamps - Box of 50","public_title":"Box of 50","options":["Box of 50"],"price":37755,"weight":0,"compare_at_price":40165,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068652478831,"title":"Box of 150","option1":"Box of 150","option2":null,"option3":null,"sku":"ZM1M81381181_NBT-150","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-Z Mini Metal Roof Clamps - Box of 150","public_title":"Box of 150","options":["Box of 150"],"price":113005,"weight":0,"compare_at_price":120218,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

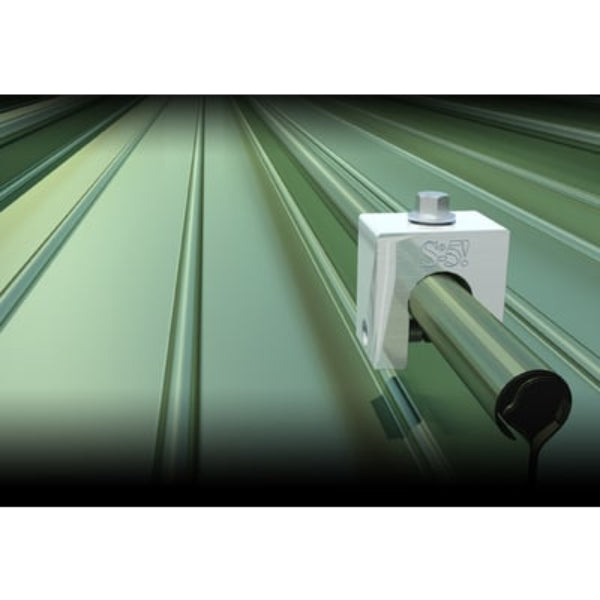

The Z Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

The Z Mini clamp is a bit shorter than the standard Z with one setscrew rather than two.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

Specifications:

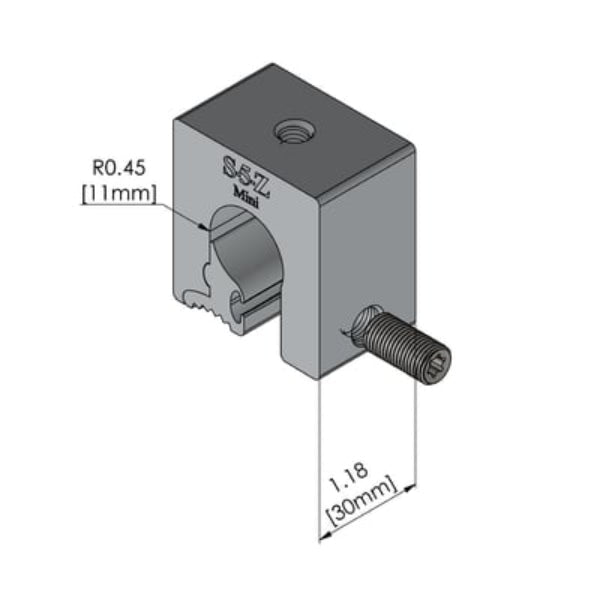

Specially designed to fit Zip-Rib®, BEMO, Kalzip® and similar profiles with a round “bulb” seam configuration and seam diameters of ≤ 7/8” (22 mm)
Two-piece clamp design means you can easily install anywhere along
the rib
Light and medium-duty applications, such as utility mounting
Smaller than the standard S-5-Z
One T-30 Torx round-point setscrew (Torx bit tip provided)
No M8 bolt included

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.

*Third Party Trademarks

All third party trademarks, including logos and icons, referenced on our website and product pages remain the property of their respective owners. Unless specifically identified as such, Arbor's use of third party trademarks does not indicate any relationship, affiliation, sponsorship, or endorsement between Arbor Home and the owners of these trademarks. Any references by Arbor Home to third party trademarks are to identify the corresponding third party goods.

Subject to Approval & Availability
All orders are reviewed before fulfillment. You are not charged until your order is approved and ready to ship — and you may cancel at any time before that at no cost.
