S-5-U Metal Roof Clamps

$8.41 $7.91

Save $0.50

Shipping calculated at checkout.

[{"id":53068653166959,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"U3M8438200T","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-U Metal Roof Clamps - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":791,"weight":0,"compare_at_price":841,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068653199727,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"U3M8438200T-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-U Metal Roof Clamps - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":9142,"weight":0,"compare_at_price":9725,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068653232495,"title":"Box of 30","option1":"Box of 30","option2":null,"option3":null,"sku":"U3M8438200T-30","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-U Metal Roof Clamps - Box of 30","public_title":"Box of 30","options":["Box of 30"],"price":27085,"weight":0,"compare_at_price":28814,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068653265263,"title":"Box of 120","option1":"Box of 120","option2":null,"option3":null,"sku":"U3M8438200T-120","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-U Metal Roof Clamps - Box of 120","public_title":"Box of 120","options":["Box of 120"],"price":102706,"weight":0,"compare_at_price":109262,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

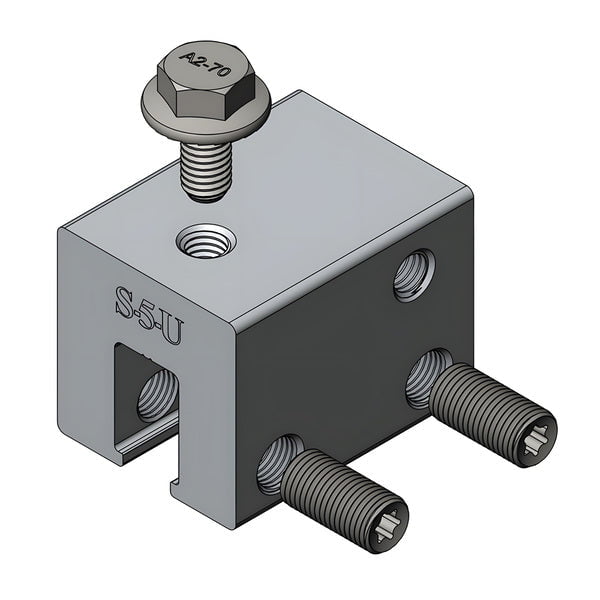

The S-5-U (“U” stands for Universal) is a popular and versatile clamp. Its generous dimensioning accommodates a majority of the standing seam profiles in North and South America—including most structural and architectural profiles.

The U is used on vertically-oriented seams and rotated 90 degrees for use on many horizontal seam profiles.

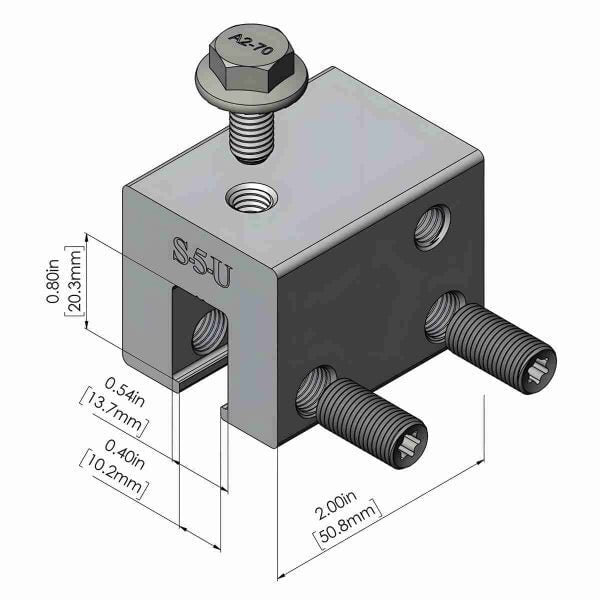

Specifications:

Accommodates most standing seam profiles in North and South America, including structural and architectural profiles
Use on vertically-oriented seams, OR
Rotate clamp 90° for use on most horizontal seam profiles w/ horizontal projection ≥ 0.65” (16.5 mm)
Use for heavy-duty applications, such as snow retention
Two T-30 Torx round-point setscrews (Torx bit tip provided)
One M8 bolt included

It is also available in the smaller S-5-U (Mini).

The S-5-U clamp is universal, designed to fit a wide range of standing seam profiles across North and South America, offering versatile application options for various roofing systems.

If this clamp does not match your roof profile, browse our other metal roof clamps below to find one that best matches your roof profile.

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
