S-5-T Metal Roof Clamps

$8.81 $8.28

Save $0.53

Shipping calculated at checkout.

[{"id":53068653429103,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"T2M8238200T","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-T Metal Roof Clamps - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":828,"weight":0,"compare_at_price":881,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068653461871,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"T2M8238200T-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-T Metal Roof Clamps - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":9111,"weight":0,"compare_at_price":9693,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068653494639,"title":"Box of 30","option1":"Box of 30","option2":null,"option3":null,"sku":"T2M8238200T-30","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-T Metal Roof Clamps - Box of 30","public_title":"Box of 30","options":["Box of 30"],"price":26905,"weight":0,"compare_at_price":28622,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068653527407,"title":"Box of 90","option1":"Box of 90","option2":null,"option3":null,"sku":"T2M8238200T-90","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-T Metal Roof Clamps - Box of 90","public_title":"Box of 90","options":["Box of 90"],"price":78945,"weight":0,"compare_at_price":83984,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

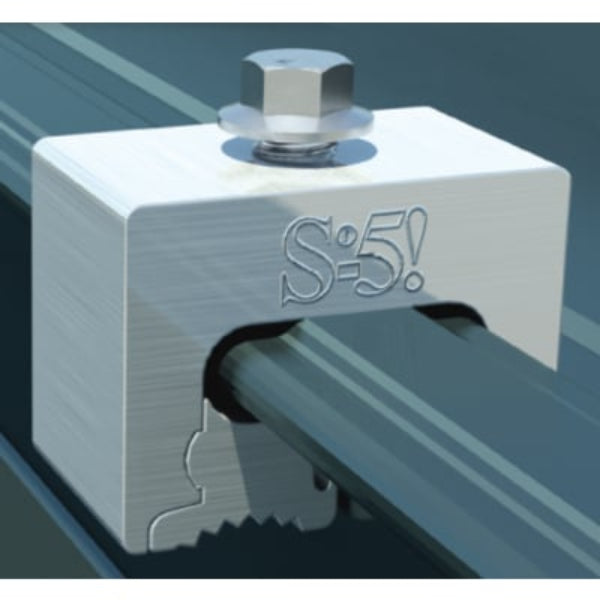

The S-5-T is specifically designed for profiles featuring a “T”-shaped seam configuration.

Mount snow guards and other heavy-duty applications to profiles, such as McElroy Metal 138T & 238T, Centria SRS 2 & SRS 3, Imetco Series 300, GreenSpan RidgeLine, Metal Sales T-Armor and other similar profiles.

This non-penetrating, standing seam metal roof clamp can also be used on architectural “single-fold” or “angle- seam” profiles with a horizontal projection of 5/8” (15 mm) or less.

Specifications:

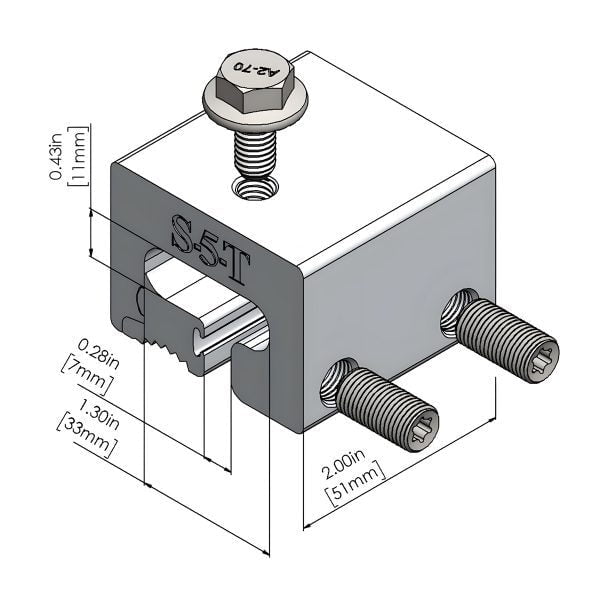

Developed for profiles featuring a T-shaped seam configuration with a horizontal dimension ≤ 1.3” (33 mm)

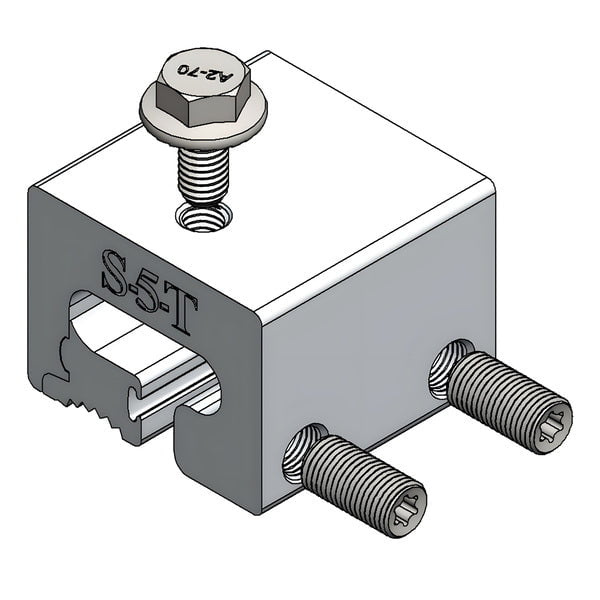

Two-piece design allows the clamp to be placed over the top of the seam at any desired location
Fits architectural single-fold (or “angle-seam”) and horizontal seams with a horizontal dimension ≤ 5/8” (15 mm)
Heavy-duty applications, such as snow retention
Two T-30 Torx round-point setscrews (Torx bit tip provided)
One M8 bolt included

It is also available in the smaller S-5-T (Mini).

The S-5-T clamp, designed for T-shaped seam configurations, offers compatibility with vertical and horizontal seam orientations, enhancing versatility in metal roofing applications.

If this clamp does not match your roof profile, browse our other metal roof clamps below to find one that best matches your roof profile.

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
