S-5-Q Mini Metal Roof Clamps

$8.14 $7.65

Save $0.49

Shipping calculated at checkout.

[{"id":53068654084463,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"QM1M8381181_NBT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-Q Mini Metal Roof Clamps - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":765,"weight":0,"compare_at_price":814,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068654117231,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"QM1M8381181_NBT-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-Q Mini Metal Roof Clamps - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":8090,"weight":0,"compare_at_price":8606,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068654149999,"title":"Box of 25","option1":"Box of 25","option2":null,"option3":null,"sku":"QM1M8381181_NBT-25","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-Q Mini Metal Roof Clamps - Box of 25","public_title":"Box of 25","options":["Box of 25"],"price":20178,"weight":0,"compare_at_price":21466,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068654182767,"title":"Box of 100","option1":"Box of 100","option2":null,"option3":null,"sku":"QM1M8381181_NBT-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-Q Mini Metal Roof Clamps - Box of 100","public_title":"Box of 100","options":["Box of 100"],"price":80480,"weight":0,"compare_at_price":85617,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

The Q Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

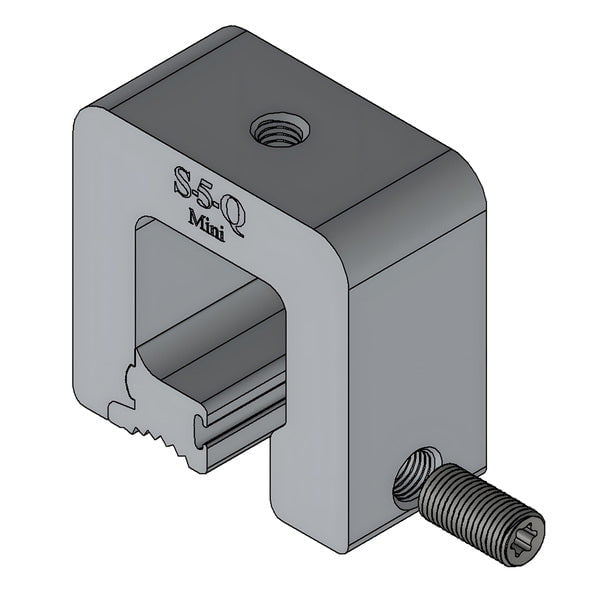

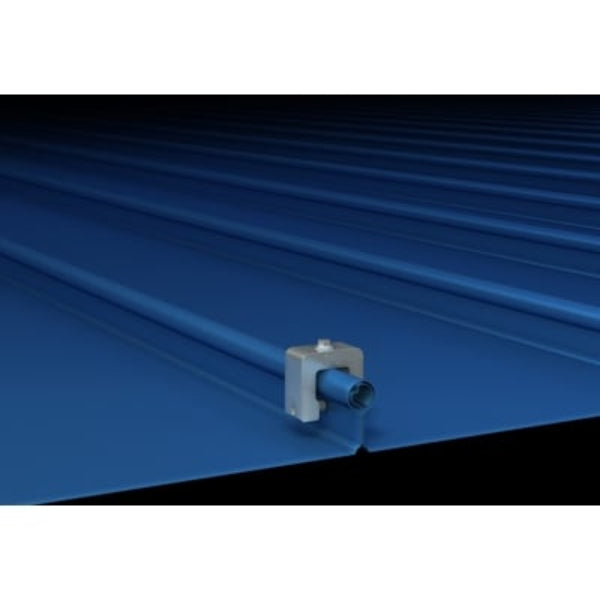

The S-5-Q Mini is a bit shorter than the S-5-Q and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.

Specifications:

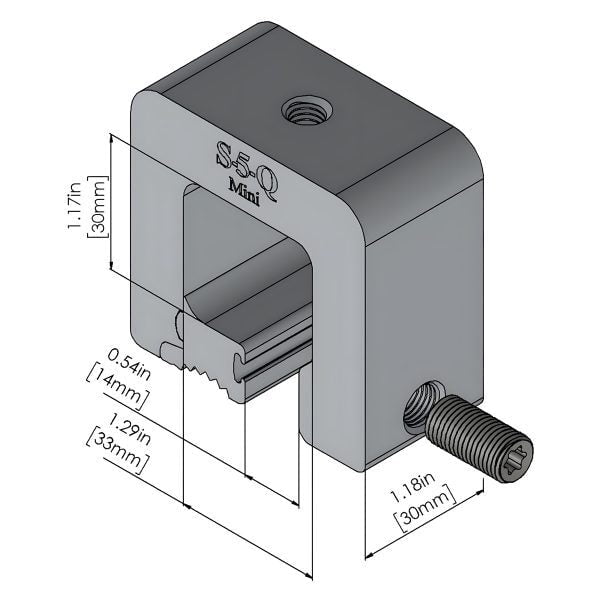

Fits all of the profiles the Z Mini fits and also accommodates standing seam metal roof panels with large, round “bulb” seam configurations up to 1.14” (29 mm) in diameter
Light and medium-duty applications, such as solar and utility mounting
Smaller than the standard S-5-Q
One T-30 Torx round-point setscrew (Torx bit tip provided)
No M8 bolt included

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
