S-5-N Metal Roof Clamps

$6.58 $6.19

Save $0.39

Shipping calculated at checkout.

[{"id":53068654739823,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"NG2M8238200T","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-N Metal Roof Clamps - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":619,"weight":0,"compare_at_price":658,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068654772591,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"NG2M8238200T-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-N Metal Roof Clamps - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":6813,"weight":0,"compare_at_price":7248,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068654805359,"title":"Box of 30","option1":"Box of 30","option2":null,"option3":null,"sku":"NG2M8238200T-30","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-N Metal Roof Clamps - Box of 30","public_title":"Box of 30","options":["Box of 30"],"price":20095,"weight":0,"compare_at_price":21378,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068654838127,"title":"Box of 120","option1":"Box of 120","option2":null,"option3":null,"sku":"NG2M8238200T-120","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-N Metal Roof Clamps - Box of 120","public_title":"Box of 120","options":["Box of 120"],"price":79455,"weight":0,"compare_at_price":84527,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

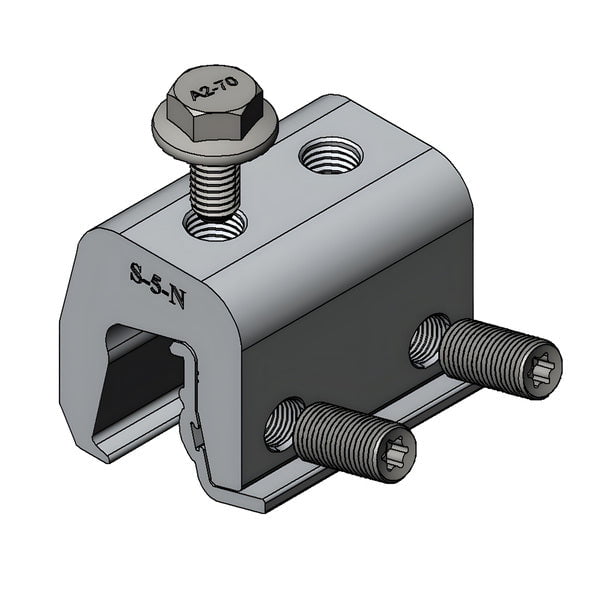

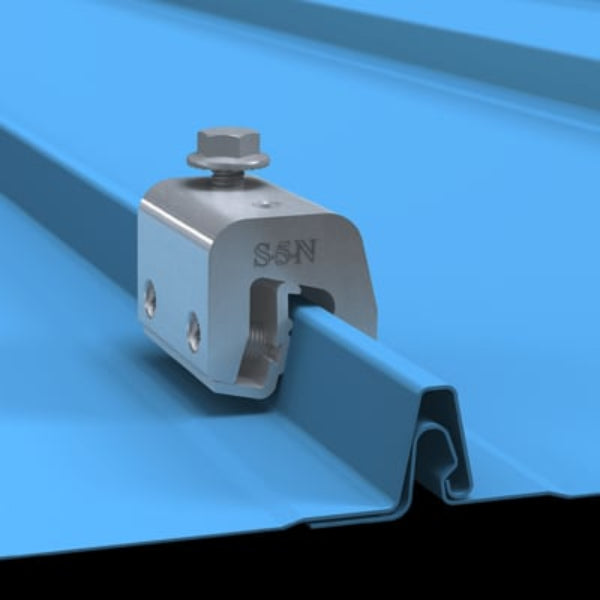

The S-5-N (“N” stands for nail strip) is a non-penetrating, standing seam metal roof (SSMR) clamp.

S-5! introduces the new and improved S-5-N clamps. The new design features an innovative insert that ensures a superior fit for new and wider nail strip profiles as well as older ones.

The S-5-N (standard) clamp is the best choice for snow retention and other heavy and load-critical applications. It is designed for use on the most popular 1" nail strip metal roofs, including: Taylor Metal's Easy LockTM, ASC Building Products' Skyline Roofing®, McElroy Metal's Meridian, New Tech Machinery's FF100, Schlebach 1" Nail Strip, and roofing types with similar profiles.

Specifications:

Angled setscrews for easy installation; no special tools required

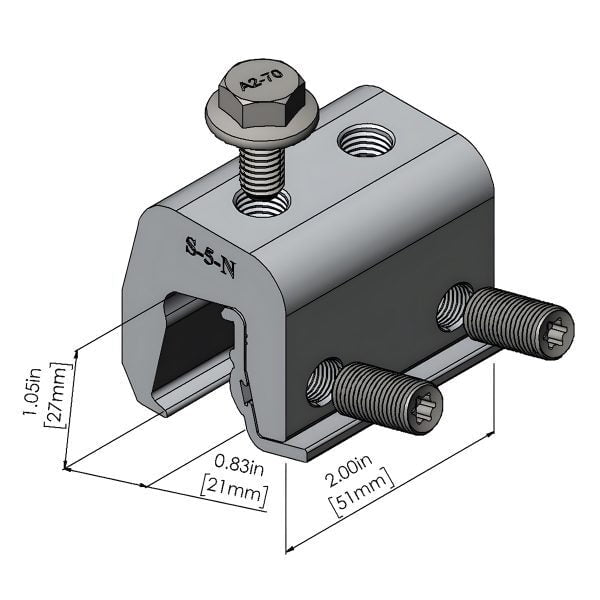

Special design for “nail-flange” SSR profiles ≤ 1” (25 mm) in height and with a base of rib dimension < .82” (20 mm)
Clamp insert facilitates best-fit without damage to panel seam
Use for heavy-duty applications, such as snow retention
Two T-30 Torx round-point setscrews (Torx bit tip provided)
One M8 bolt included

It is also available in the smaller S-5-N (Mini).

The S-5-N nail strip, measuring 1 inch (25 mm), is designed for secure attachment to metal roofs, offering a reliable solution for mounting without penetrating the roof surface.

If this clamp does not match your roof profile, browse our other metal roof clamps below to find one that best matches your roof profile.

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
