S-5-K Grip Seam Clamp

$9.13 $8.58

Save $0.55

Shipping calculated at checkout.

[{"id":53068655264111,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"KG3M8200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-K Grip Seam Clamp - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":858,"weight":0,"compare_at_price":913,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068655296879,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"KG3M8200-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-K Grip Seam Clamp - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":9083,"weight":0,"compare_at_price":9663,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068655329647,"title":"Box of 20","option1":"Box of 20","option2":null,"option3":null,"sku":"KG3M8200-20","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-K Grip Seam Clamp - Box of 20","public_title":"Box of 20","options":["Box of 20"],"price":18109,"weight":0,"compare_at_price":19265,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068655362415,"title":"Box of 80","option1":"Box of 80","option2":null,"option3":null,"sku":"KG3M8200-80","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-K Grip Seam Clamp - Box of 80","public_title":"Box of 80","options":["Box of 80"],"price":72226,"weight":0,"compare_at_price":76836,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

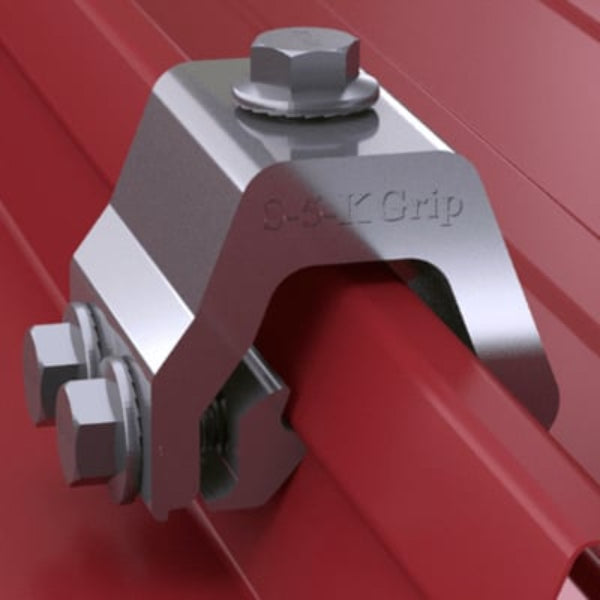

The S-5-K Grip (“K” stands for KlipLok®), is designed to fit the KlipLok and similar profiles.

The following Inserts are recommended for this product

The K Grip eliminates the large moment arm typical of some competitive clamps, and its mounting bolt sits concentrically on the seam, increasing load resistance.

Unlike other S-5! clamps, the K Grip uses side-bolts rather than setscrews for attachment. The flanged-head bolts also prevent over-compression of the seam and eliminate the need for calibrated tensioning.

Specifications:

Developed for best suitability to Klip-Rib®, Klip-Lok® and other concealed-fix, snap-together profiles
Design utilizes multiple inserts (sold separately) to accommodate variations in brand-specific rib dimensions

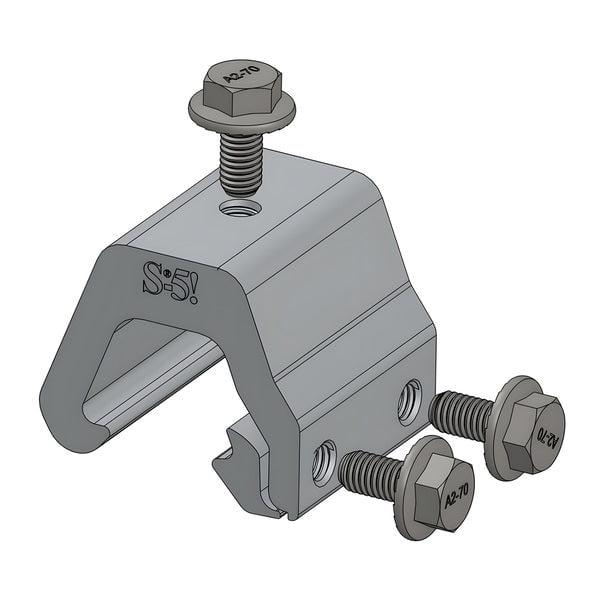

Mounting bolt directly at center of seam (included)
Two side-bolts included

Inserts for the S-5-K Grip

Inserts Are Required with This Product

S-5-GX 10 Clamp Inserts

These inserts are associated with the seams below

LYSAGHT KLIP-LOK® 406
McElroy Metal Mirage
AEP Span Klip-Rib®
Metal Sales Clip-Loc
SpeedDeck® SpeedDeck®
Safintra Saflok 410
Safintra Saflok 700
Domico Dach®
And, other similar profile

The K Grip is also available in the smaller S-5-K Grip (Mini).

The S-5-K Grip, designed for KlipLok and similar profiles, is a versatile aluminum clamp engineered to securely attach without penetrating the panel surface, suitable for various standing seam metal roofs.

If this clamp does not match your roof profile, browse our other metal roof clamps below to find one that best matches your roof profile.

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
