S-5-H90 Mini Metal Roof Clamps

$4.44 $4.17

Save $0.27

Shipping calculated at checkout.

[{"id":53068655395183,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"H90M1M81381181_NBT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-H90 Mini Metal Roof Clamps - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":417,"weight":0,"compare_at_price":444,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068655427951,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"H90M1M81381181_NBT-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-H90 Mini Metal Roof Clamps - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":4613,"weight":0,"compare_at_price":4907,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068655460719,"title":"Box of 50","option1":"Box of 50","option2":null,"option3":null,"sku":"H90M1M81381181_NBT-50","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-H90 Mini Metal Roof Clamps - Box of 50","public_title":"Box of 50","options":["Box of 50"],"price":23065,"weight":0,"compare_at_price":24537,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068655493487,"title":"Box of 200","option1":"Box of 200","option2":null,"option3":null,"sku":"H90M1M81381181_NBT-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-H90 Mini Metal Roof Clamps - Box of 200","public_title":"Box of 200","options":["Box of 200"],"price":89944,"weight":0,"compare_at_price":95685,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

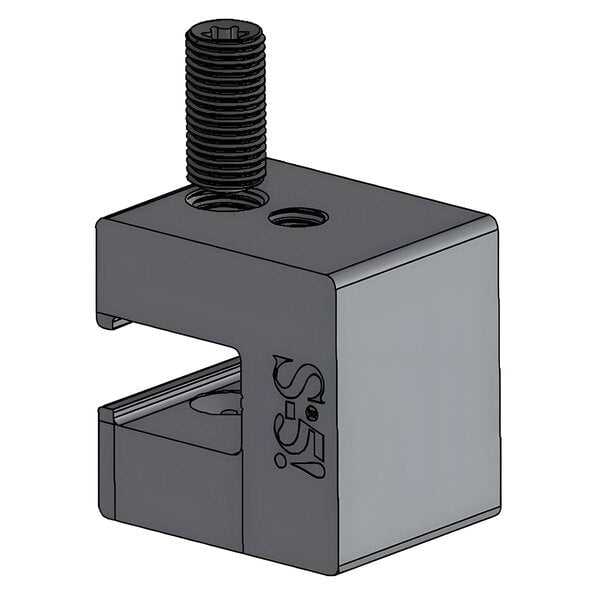

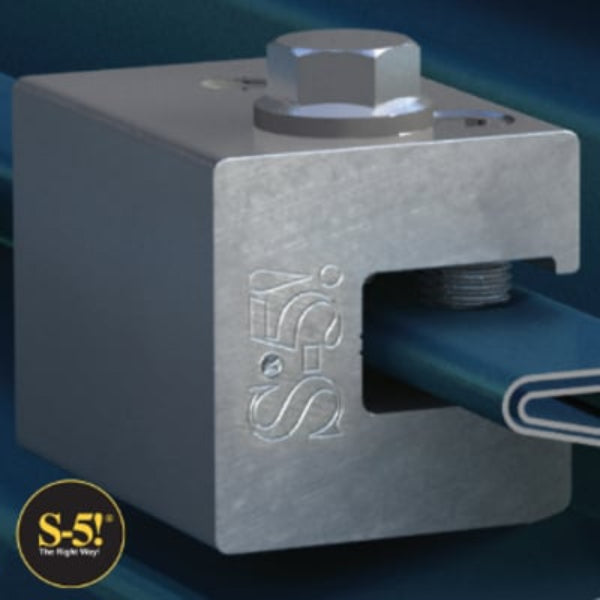

The S-5-H90 Mini is a bit shorter than the S-5-H90 and has one setscrew and one threaded bolt hole rather than two. The H90 Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.

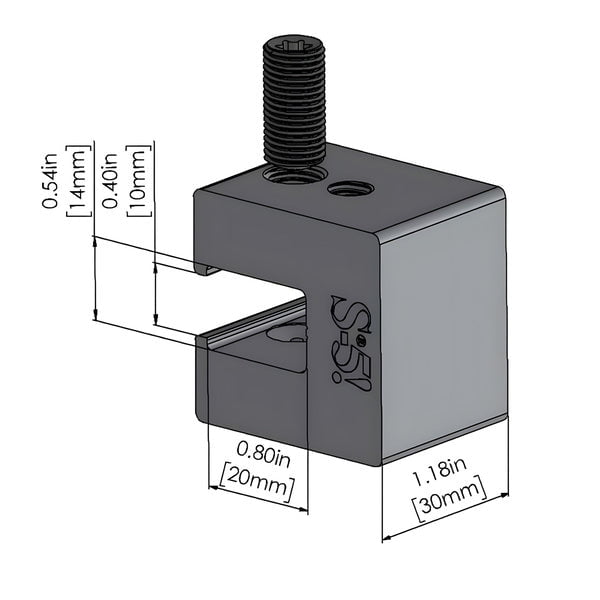

Specifications:

Designed for standing seam panels with horizontal, single-folded seams
Secure and cost-effective solution for horizontal seam dimensions ≥ 0.65” (16.5 mm)
Fits all standing seams the S-5-U fits horizontally, and fits fully seamed profiles the S-5-H fits vertically - but is more cost-effective than either.
One T-30 Torx round-point setscrew - side installation - (Torx bit tip provided)
No M8 bolt included

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
