S-5-FA Metal Roof Clamps

$2.41 $2.27

Save $0.14

Shipping calculated at checkout.

[{"id":53068659261807,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"FS1433134150T","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-FA Metal Roof Clamps - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":227,"weight":0,"compare_at_price":241,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068659294575,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"FS1433134150T-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-FA Metal Roof Clamps - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":2169,"weight":0,"compare_at_price":2307,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068659327343,"title":"Box of 110","option1":"Box of 110","option2":null,"option3":null,"sku":"FS1433134150T-110","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-FA Metal Roof Clamps - Box of 110","public_title":"Box of 110","options":["Box of 110"],"price":22934,"weight":0,"compare_at_price":24398,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068659360111,"title":"Box of 440","option1":"Box of 440","option2":null,"option3":null,"sku":"FS1433134150T-440","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-FA Metal Roof Clamps - Box of 440","public_title":"Box of 440","options":["Box of 440"],"price":89441,"weight":0,"compare_at_price":95150,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

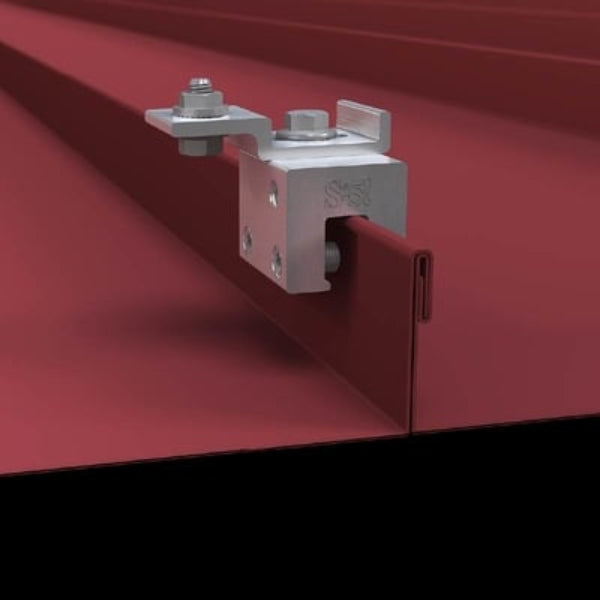

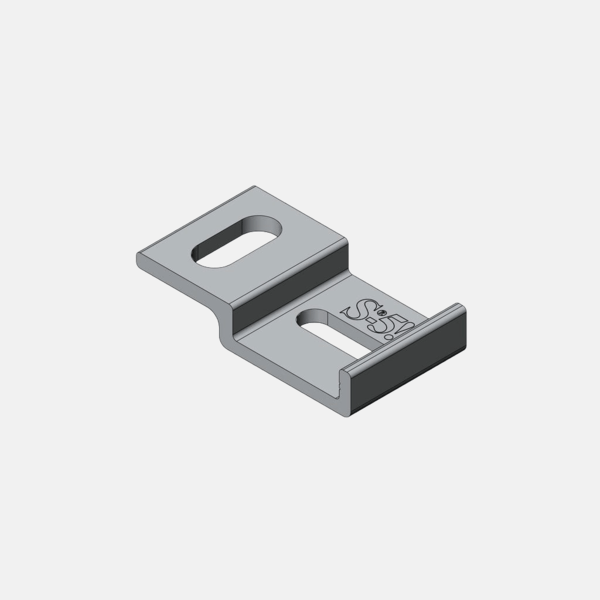

The S-5-FA (“FA” stands for “flange adapter”) can be mounted on any clamp (except brass) to quickly provide a nut-and-bolt connection on a standing seam metal roof (SSMR).

Offering 360° in placement flexibility, the FA is an ideal attachment solution for module-level power electronics, bottom-mount solar rails, walkways and a host of other utility mountings.

Rather than being flat, the FA is a curved shape, providing additional structural stability. The flange features a slotted hole, offering you greater adjustability when mounting.

Stainless steel serrated flange nuts and several bolt sizes are sold separately.

Specifications:

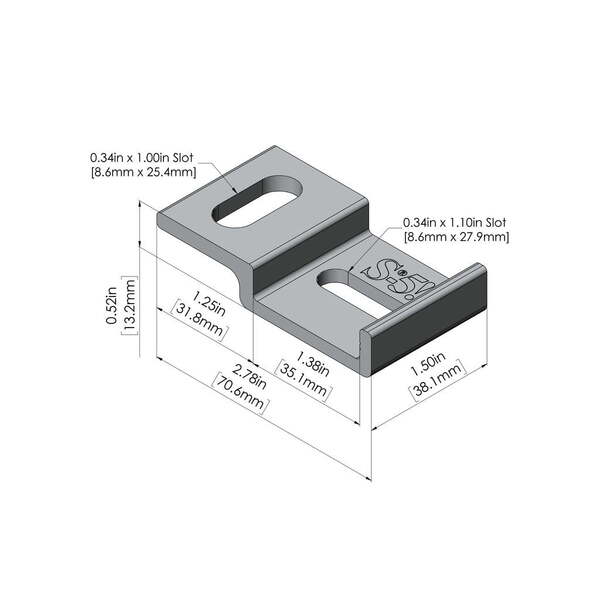

Slotted hole in flange provides some adjustment for versatile utility mounting
Fits all S-5! standing seam metal roof clamps (except brass)
Slotted mounting holes for flexibility
Ideal for bottom-bolted solar PV rails
Use to mount module-level power electronics, walkways and other utilities

The S-5-FA flange adapter is compatible with all S-5! clamps (excluding brass) for seamless nut-and-bolt connections on standing seam roofs, enhancing versatility and installation ease.

If this clamp does not match your roof profile, browse our other metal roof clamps below to find one that best matches your roof profile.

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
