S-5-B Brass Metal Roof Clamps

$28.85 $27.12

Save $1.73

Shipping calculated at checkout.

[{"id":53068656247151,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"BU1M82381885T","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-B Brass Metal Roof Clamps - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":2712,"weight":0,"compare_at_price":2885,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068656279919,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"BU1M82381885T-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-B Brass Metal Roof Clamps - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":26032,"weight":0,"compare_at_price":27694,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068656312687,"title":"Box of 24","option1":"Box of 24","option2":null,"option3":null,"sku":"BU1M82381885T-24","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-B Brass Metal Roof Clamps - Box of 24","public_title":"Box of 24","options":["Box of 24"],"price":60074,"weight":0,"compare_at_price":63908,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068656345455,"title":"Box of 120","option1":"Box of 120","option2":null,"option3":null,"sku":"BU1M82381885T-120","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"S-5-B Brass Metal Roof Clamps - Box of 120","public_title":"Box of 120","options":["Box of 120"],"price":292819,"weight":0,"compare_at_price":311510,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Architects and roof designers choose copper roofing for its timeless elegance and durability. The S-5-B (“B” for “Brass”) allows architects to maintain that theme with all equipment and accessories that must be mounted to the roof with permanence and durability consistent with the roof itself.

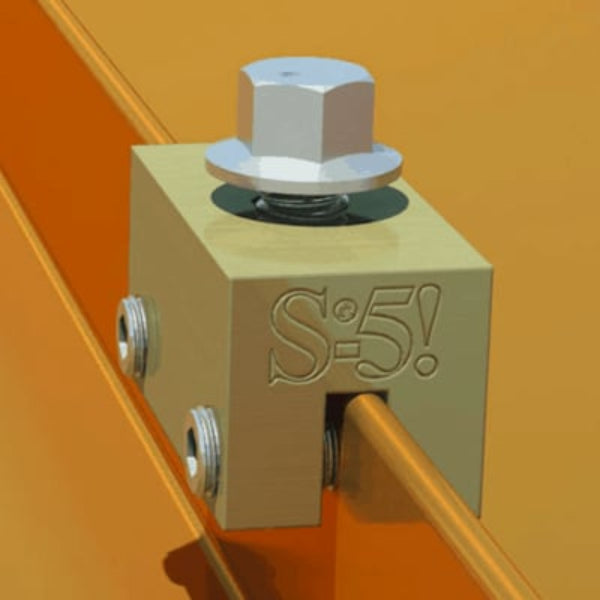

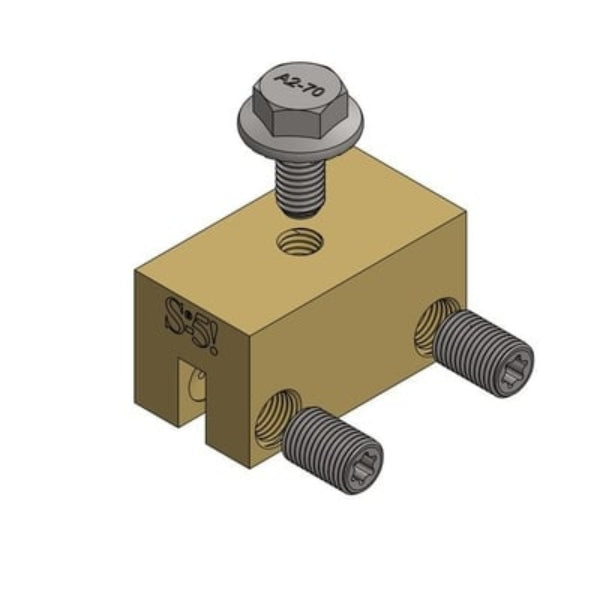

This clamp is specifically designed for double-folded copper standing seam paneling.

Installation is as simple as placing the clamp on the seam and tightening the patented round-point setscrews to the specified tension. Then, affix ancillary items using the bolt provided.

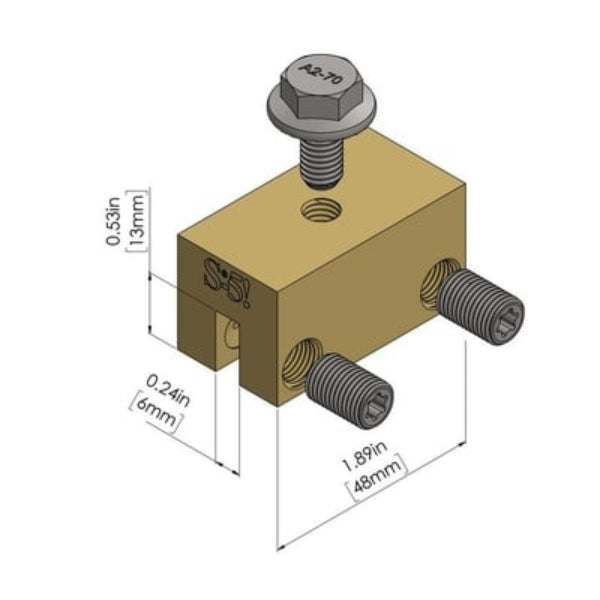

Specifications:

Designed for double-folded 16 and 20-oz copper standing seam roofs
Metallurgical compatibility with copper
Preserves aesthetics of copper roof
Heavy-duty applications, such as snow retention
Two T-30 Torx setscrews (Torx bit tip provided)
One M8 bolt included

It is also available in the smaller S-5-B (Mini).

The S-5-B clamp, designed specifically for brass double-folded 16 & 20 oz copper standing seams, ensures a reliable, penetration-free mount for rooftop installations, maintaining the structural integrity of the roof.

If this clamp does not match your roof profile, browse our other metal roof clamps below to find one that best matches your roof profile.

></a></p>

<p><a href=

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
