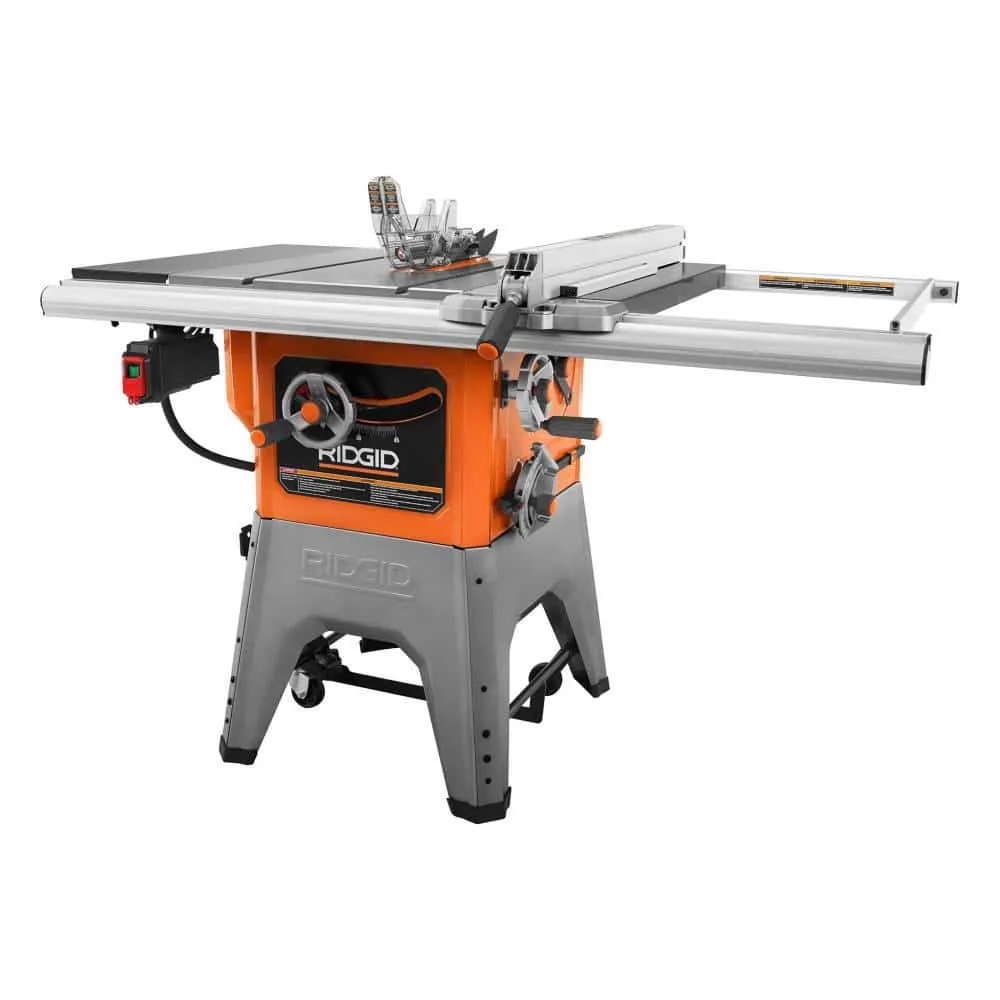

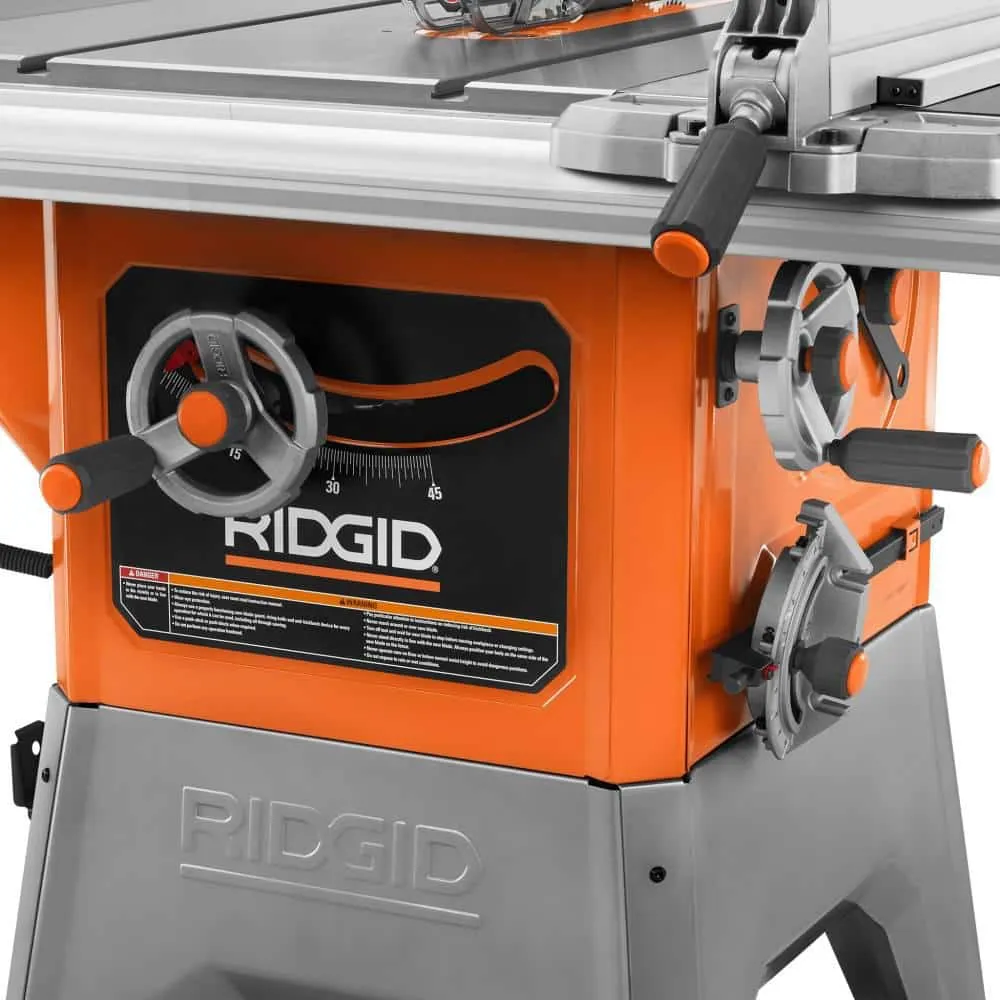

RIDGID 13A 10" Cast Iron Professional Table Saw

Built for precision and durability, the RIDGID R4520 features a milled and polished cast iron table with steel extensions and a powerful 13 Amp TEFC induction motor with blade brake. With a 30 in. right rip capacity, integrated 4 in. dust port, and push-pedal caster set, it’s ideal for jobsite and shop use.

---

Key Features:

• Precision Cast Iron Table: Milled and polished surface with steel extensions for flat, accurate cuts
• Powerful Induction Motor: 13 Amp TEFC motor with blade brake to handle dense materials
• Large Rip Capacity: 30 in. right rip and 15 in. left rip for sheet goods and wide stock
• Integrated Dust Collection: 4 in. dust port connects easily for a cleaner workspace
• Mobility and Storage: Push-pedal caster set and onboard storage for fence, guard, and miter gauge

---

Specifications Table:

Specification	Details
Amperage	13 A
Bench & Stationary Tool Type	Table Saw
Blade Location	Centered
Color Family	Orange
Construction Material	Cast Iron
Cord Length	6 ft
Power Source	Corded
Cuts Through	Wood
Depth Control	Yes
Dust Collection Port	4 in.
Horsepower	3.25 HP
Max Cut Depth at 45°	2.25 in
Max Cut Depth at 90°	3.25 in
Maximum Speed	3450 RPM
Table Tilt Left	45°
Table Tilt Right	0°
Portability	Bench
Power Tool Features	No Additional Features
Product Weight	267.23 lb
Rip Capacity Left	15 in
Rip Capacity Right	30 in
Tools Product Type	Power Tool
Certifications and Listings	UL Listed
Manufacturer Warranty	Lifetime Service Agreement (with registration)
Blade Diameter	10 in
Product Depth	46.3 in
Product Height	37.187 in
Product Width	30.63 in
Work Table Height From Floor	37.5 in
Work Table Length	27 in
Work Table Width	40 in
Work Table Surface	27 in x 40 in

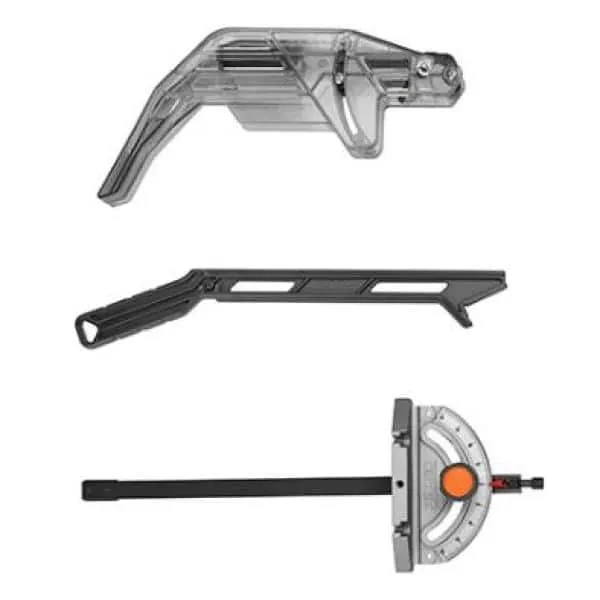

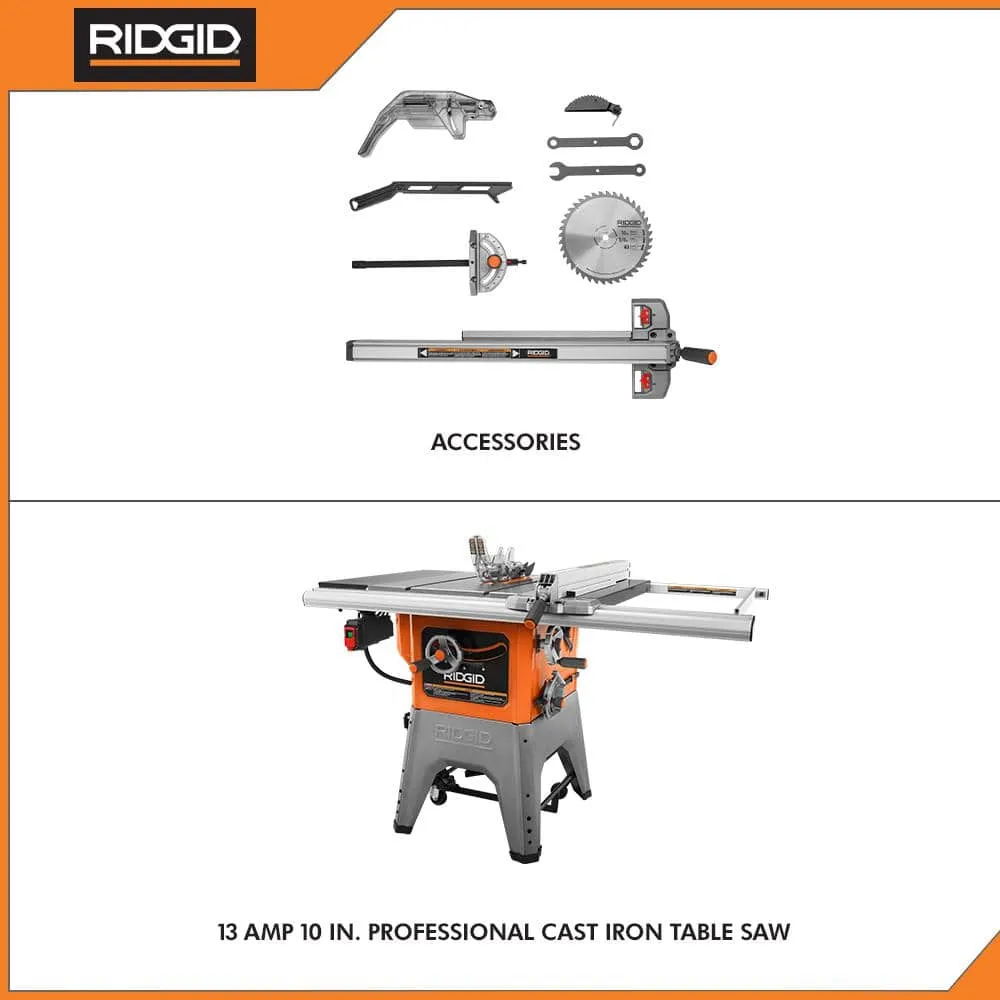

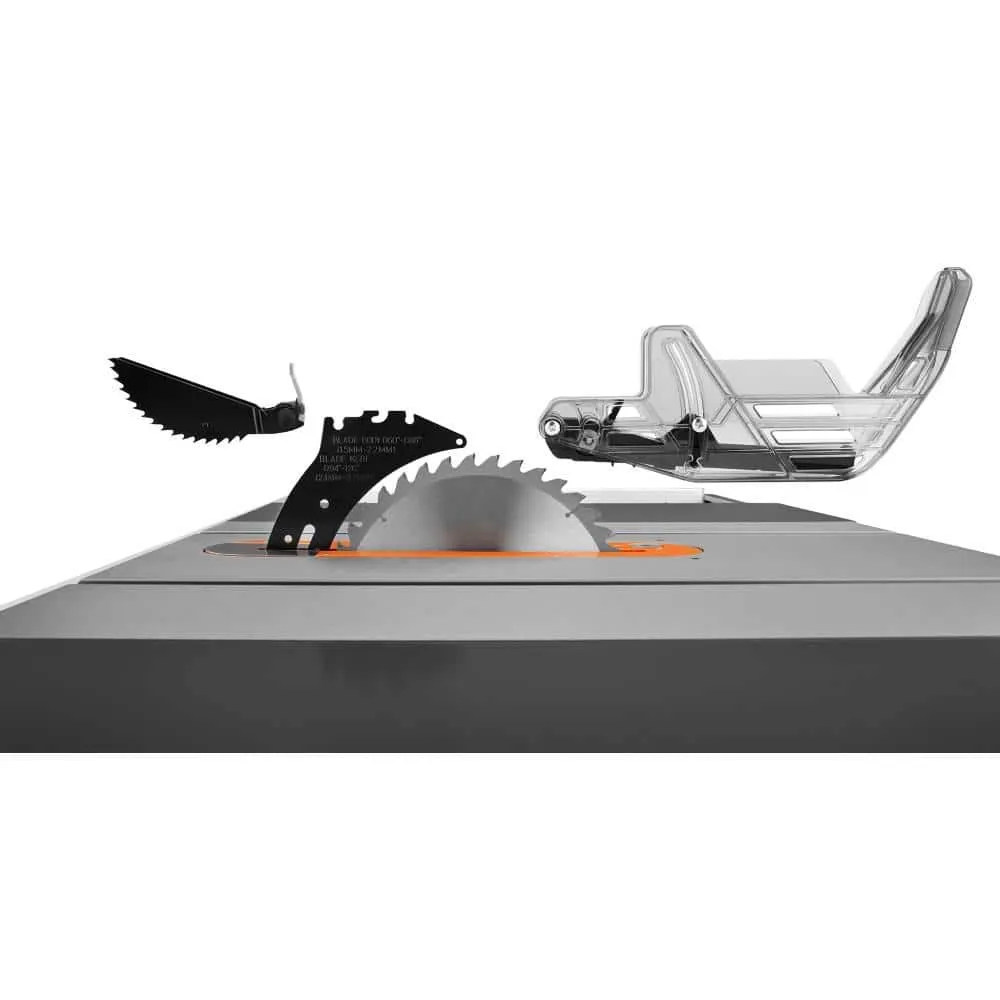

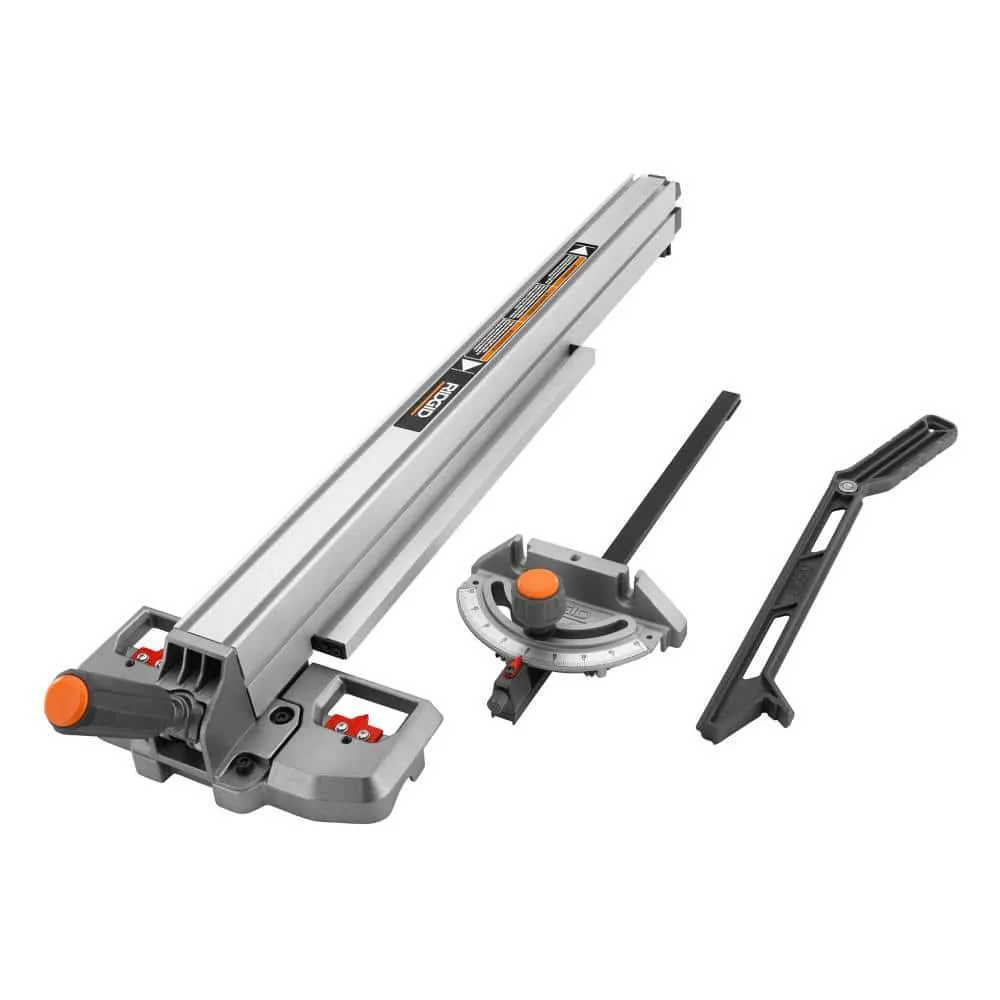

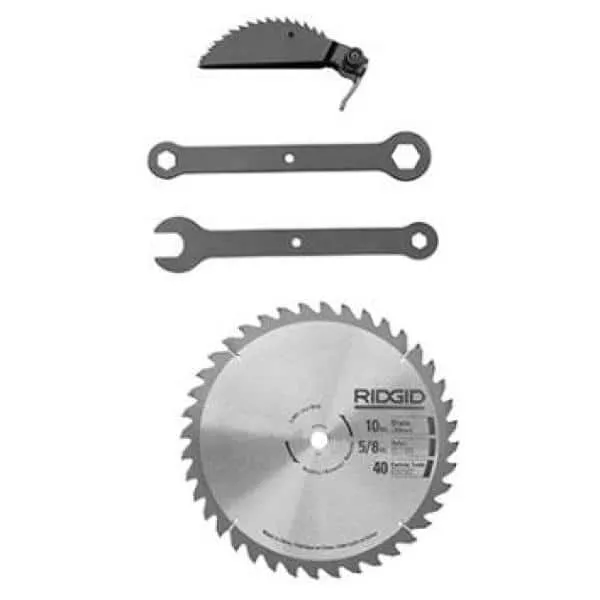

Included Accessories	Push stick, blade guard assembly, push-pedal caster set, assembly hardware, 10 in. carbide-tipped blade, die-cast miter gauge, rip fence, operator’s manual

---

Frequently Asked Questions (FAQ):

Q: What blade size and arbor does it use?
A: It includes a 10 in. carbide-tipped blade; arbor size is 5/8 in.

---

Q: What are the max cut depths?
A: Up to 3.25 in. at 90° and 2.25 in. at 45°.

---

Q: Does it have dust collection?
A: Yes—an integrated 4 in. dust port for connection to shop vacs or collectors.

---

Q: Is the saw portable?
A: It’s a stationary bench-style saw with a push-pedal caster set for repositioning around the shop.

---

Q: What warranty is included?
A: Eligible for RIDGID’s Lifetime Service Agreement with registration within 90 days.

---

A Workhorse with Boutique-Level Finish

The cast iron table is a study in permanence—sleek, milled, and beautifully balanced for confident, whisper-straight cuts. I love the refined fence and steel extensions, which stretch the workspace like a tailored suit. Style it with a crisp outfeed table and matte-black storage to elevate your shop’s aesthetic. This is the kind of tool that anchors a luxury workshop—performance with presence.

---

Bring precision and power to your shop—add the RIDGID R4520 to your cart today.
