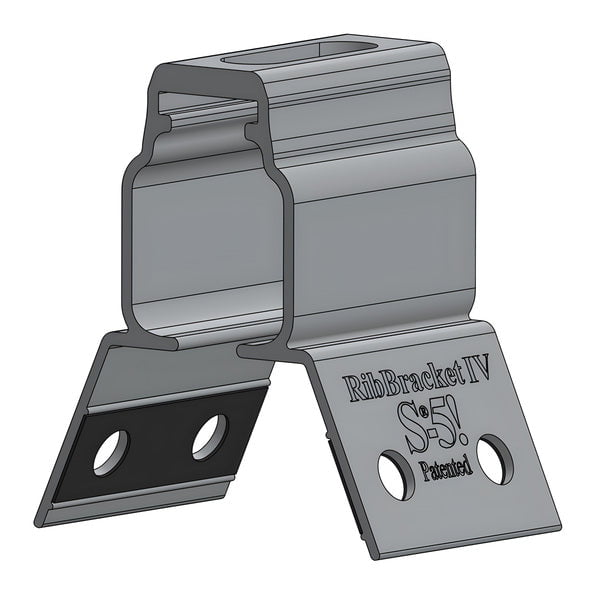

RibBracket IV for Roof Profiles - Full Range

RibBracket IV for Roof Profiles - Full Range image 2

RibBracket IV for Roof Profiles - Full Range image 3

RibBracket IV for Roof Profiles - Full Range

$7.57 $7.12

Save $0.45

Shipping calculated at checkout.

[{"id":53068656640367,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"IBR440012501750","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RibBracket IV for Roof Profiles - Full Range - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":712,"weight":0,"compare_at_price":757,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068656673135,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"IBR440012501750-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RibBracket IV for Roof Profiles - Full Range - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":6831,"weight":0,"compare_at_price":7267,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068656705903,"title":"Box of 45","option1":"Box of 45","option2":null,"option3":null,"sku":"IBR440012501750-45","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RibBracket IV for Roof Profiles - Full Range - Box of 45","public_title":"Box of 45","options":["Box of 45"],"price":29556,"weight":0,"compare_at_price":31443,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068656738671,"title":"Box of 135","option1":"Box of 135","option2":null,"option3":null,"sku":"IBR440012501750-135","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RibBracket IV for Roof Profiles - Full Range - Box of 135","public_title":"Box of 135","options":["Box of 135"],"price":86451,"weight":0,"compare_at_price":91969,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Designed for popular African and North American profiles, such as Safintra IBR, KingSpan® KS1000, and similarly-dimensioned profiles.

Compatible RibBracket IV top rib dimension range:
1 ¼ in +/- to 1 ⅜ in (32 mm to 35 mm)

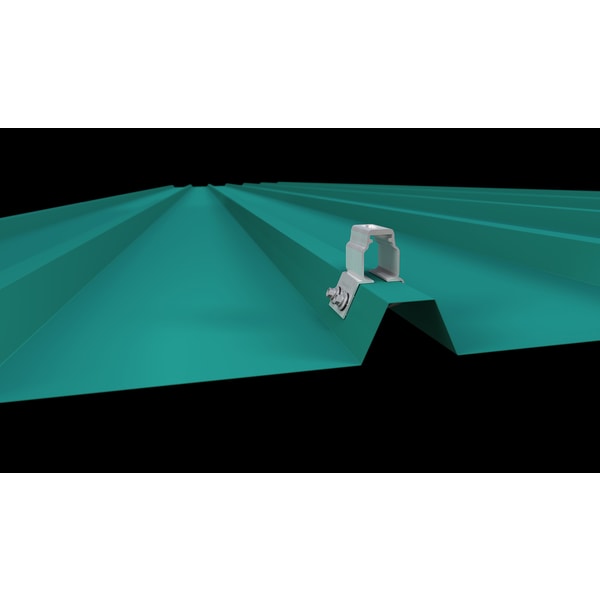

Installation is simple! The RibBracket is mounted directly onto the crown of the panel, straddling the profile. No surface preparation is necessary; simply wipe away excess oil and debris, align, and apply. Secure through the pre-punched holes using the appropriate fasteners or Bulb-tite rivets for the supporting roof material. RibBracket is the perfect match for our S-5-PV Kit, or any other ancillary application, without worrying about cold bridging!

RibBracket is extremely economical and facilitates quick and easy installation. The slotted top hole, which accommodates standard M8 nuts and bolts, simplifies alignment and maximizes flexibility in attaching ancillaries.

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
