RibBracket for Roof Profiles

$8.91 $8.38

Save $0.53

Shipping calculated at checkout.

[{"id":53068657066351,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"USTB14125175","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RibBracket for Roof Profiles - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":838,"weight":0,"compare_at_price":891,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068657099119,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"USTB14125175-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RibBracket for Roof Profiles - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":8034,"weight":0,"compare_at_price":8547,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068657131887,"title":"Box of 45","option1":"Box of 45","option2":null,"option3":null,"sku":"USTB14125175-45","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RibBracket for Roof Profiles - Box of 45","public_title":"Box of 45","options":["Box of 45"],"price":34762,"weight":0,"compare_at_price":36981,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068657164655,"title":"Box of 180","option1":"Box of 180","option2":null,"option3":null,"sku":"USTB14125175-180","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RibBracket for Roof Profiles - Box of 180","public_title":"Box of 180","options":["Box of 180"],"price":135572,"weight":0,"compare_at_price":144225,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

The RibBracket is the perfect attachment solution for specific North American trapezoidal, exposed-fastened metal roofs. These profiles are commonly referred to as R-Panel or PBR-Panel.

Mount HVAC, walkways, snow guards, railed PV systems and more to your metal roof. You can also pair this metal roof bracket with the S-5-PVKIT® for rail-less (direct-attach™) solar PV mounting. When additional height is desired with the S-5-PVKIT, use RibBracket III.

With the RibBracket, there are no messy sealants to apply. The factory-applied, EPDM rubber gasket weatherproofs and makes installation easy. The reservoir conceals EPDM from UV exposure, preventing drying and cracking.

Choose RibBracket to Help Simplify Alignment and Maximize Adjustability

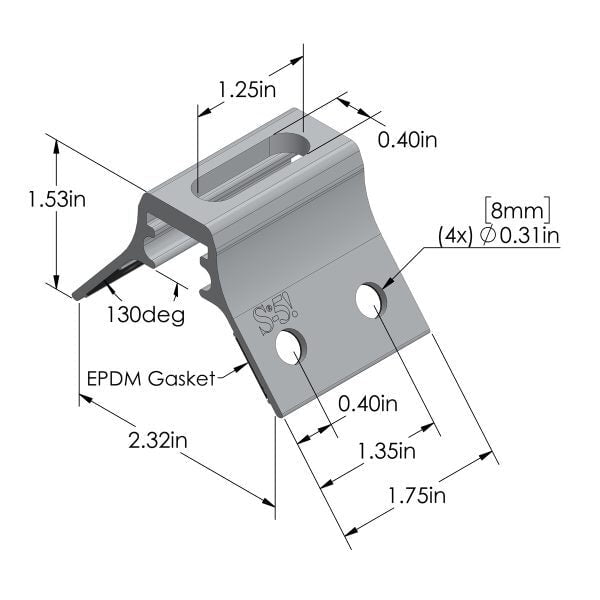

The RibBracket features a slotted top hole, which accommodates standard M8 nuts and bolts, simplifies alignment and maximizes adjustability in attaching ancillaries.

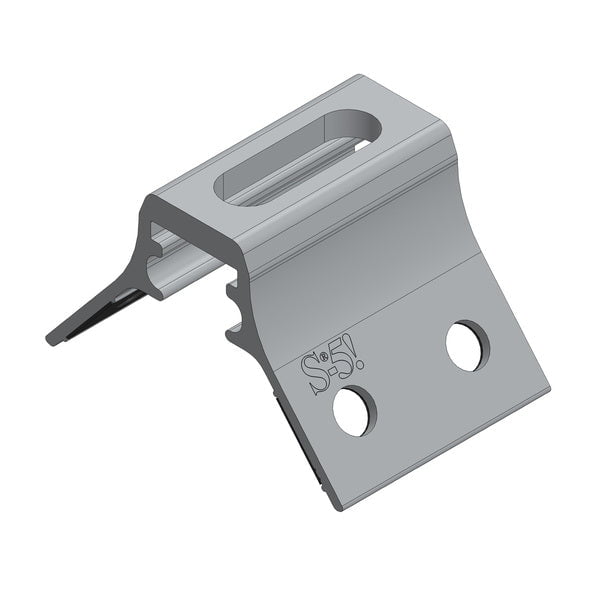

RibBracket is a structural aluminum attachment bracket, compatible with all common metal roofing materials and many North American trapezoidal profiles.

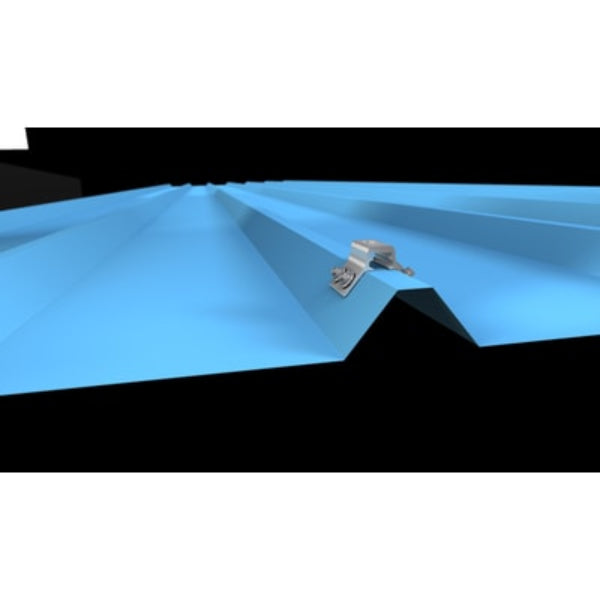

RibBracket is mounted directly onto the crown of the trapezoidal sheet using stainless-capped piercing screws (provided) or Bulb-Tite rivets (not provided). The sheeting-only attachment allows the bracket to be mounted anywhere along the rib.

Specification

Use on common North American exposed-fastened, trapezoidal-rib roof profiles
Slotted top hole accommodates standard M8 nuts and bolts
Stainless-capped, self-piercing screws specifically designed to maximize holding strength and prevent swarf; EPDM sealing washer
Sheeting-only attachment can be placed anywhere along roof ribs
4 self-piercing screws and 1 M8 nut included

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
